Harley-Davidson Harley Davidson Low Rider S FXLRS (2025) technical specifications

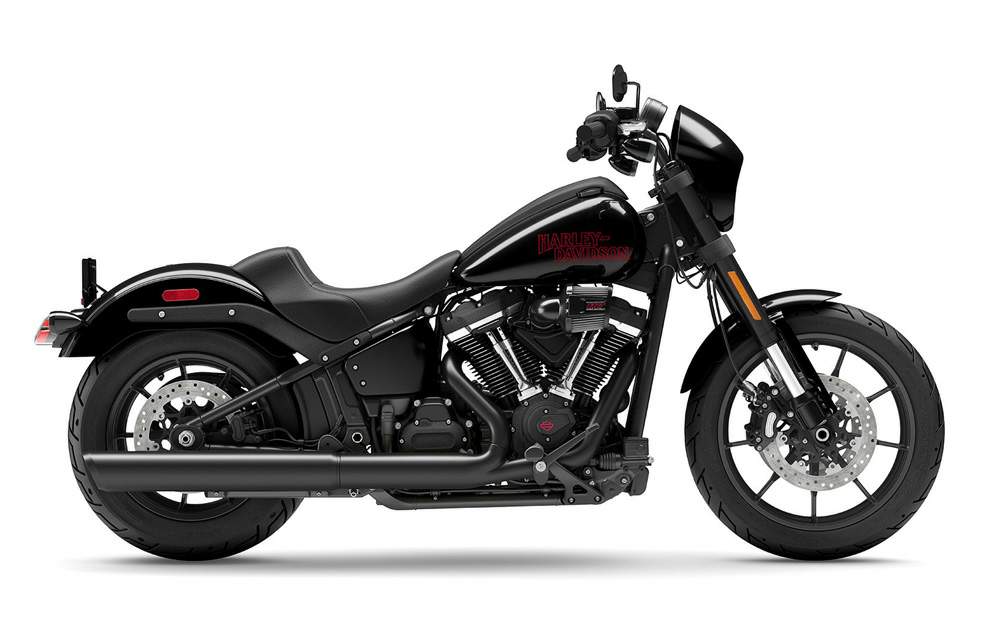

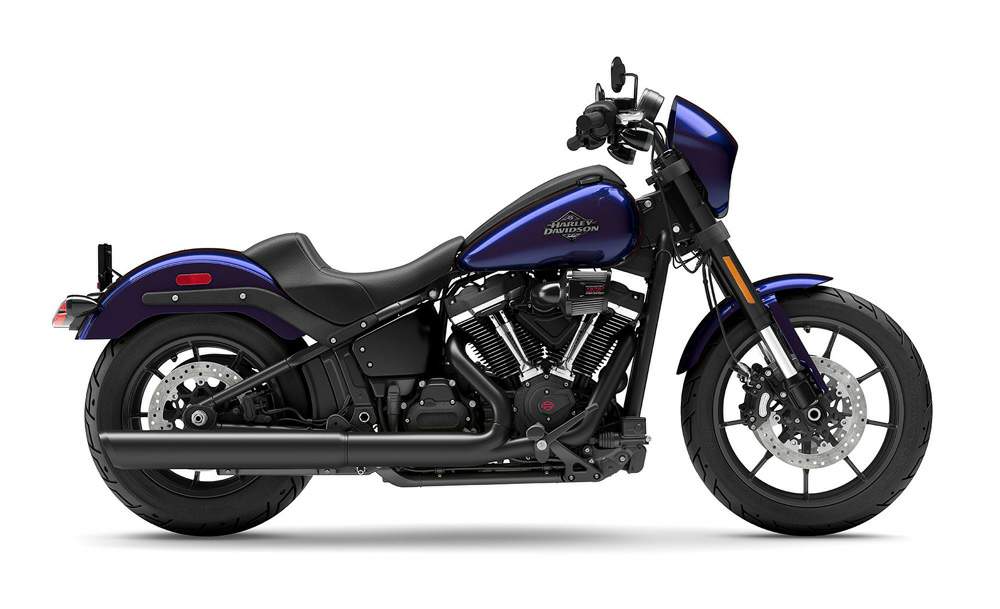

Harley-Davidson Harley Davidson Low Rider S FXLRS is produced in 2025. Engine is Four stroke, V-Twin, 2 Milwaukee-Eight 117 custom, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1923 cc / 117 cu in , produces power 85 kW / 114Hp @ 5000 rpm and 174 Nm / 128 lb-ft @ 4000 rpm. Harley-Davidson Harley Davidson Low Rider S FXLRS weighs 292 kg kg / 668 lbs. Harley-Davidson Harley Davidson Low Rider S FXLRS has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson Low Rider S FXLRS
Years:	2025
Engine:	Four stroke, V-Twin, 2 Milwaukee-Eight 117 custom, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity:	1923 cc / 117 cu in
Bore x Stroke:	103.5 x 114.3 in
Cooling System:	Air cooled
Compression Ratio:	10.3:1
Exhaust:	2-into-1d, catalyst in header
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication:	Pressurized, dry-sump with oil cooler
Ignition:	Single-fire, non-wasted, map-controlled spark ignition
Starting:	Electric
Max Power:	85 kW / 114Hp @ 5000 rpm
Max Torque:	174 Nm / 128 lb-ft @ 4000 rpm
Clutch:	Mechanical, 10 plate wet, assist & conventional
Transmission:	6 Speed
Primary Drive:	Chain, 34/46 ratio
Final Drive:	Belt, 32/66 ratio
Gear Ratio:	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79
Lean Angle, Left:	31.3?
Lean Angle, Right:	31.3?
Frame:	Mild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports
Swingarm:	Mild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, aluminium forged fender supports
Front Suspension:	Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	Hidden, free piston, coil-over monoshock, 56mm stroke, hydraulic preload adjustment
Rear Wheel Travel:	112 mm / 4.4 in
Front Brakes:	2 x 300mm discs, 4 piston fixed caliper
Rear Brakes:	Single 292mm disc, 2 piston floating caliper
ABS:	Standard
Wheels:	Chrome or Black, Radiate Cast Aluminium
Front Wheel:	19 x 2,5 in
Rear Wheel:	16 x 5.0 in
Front Tyre:	110/90R19,62H,BW
Rear Tyre:	180/70R16,77H,BW
Rake (steering head):	28?
Trail:	145 mm / 5.7 in
Dimensions:	Length: 2360 mm / 92.9 in Width: 890 mm / 35 in Height: 1205 mm / 47.4 in
Wheelbase:	1615 mm / 63.6 in
Ground Clearance:	145 mm / 5.7 in
Seat Height:	Unladen 715 mm / 28.1 in Laden 686 mm / 27 in
Dry Weight:	292 kg kg / 668 lbs
Wet Weight:	304 kg / 670 lbs
Fuel Capacity:	18.9 Litres / US 5.0 gal
