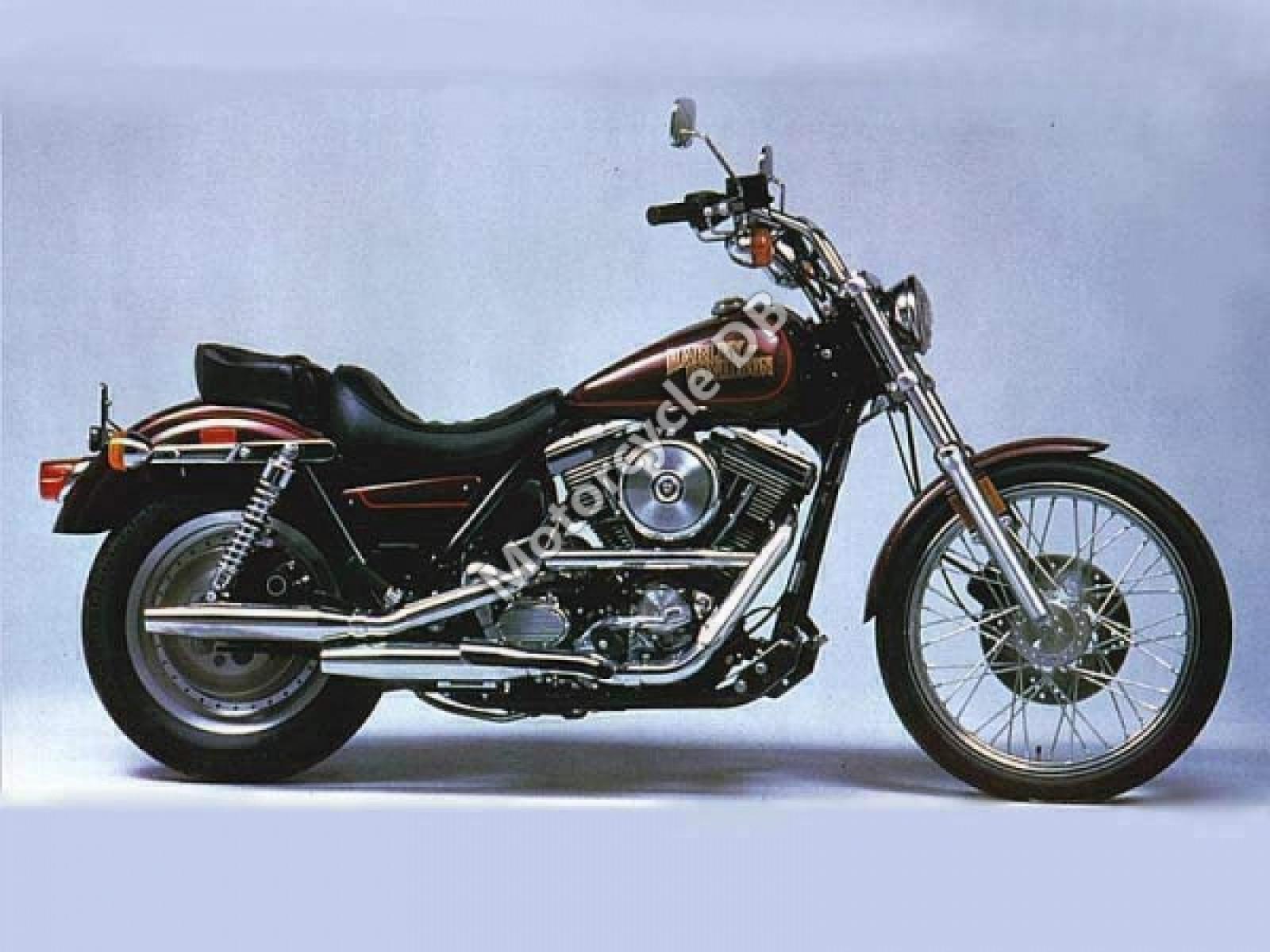

Harley-Davidson Harley Davidson FXLR 1340 Low Rider Custom (1987-91) technical specifications
Harley-Davidson Harley Davidson FXLR 1340 Low Rider Custom is produced in 1987-91. Engine is Four stroke, 45° V-Twin, OHV, 2 valves per cylinder., displacement 1337 cc / 81.5 cu-in , produces power 50 hp / 35.8 kW @ 5000 rpm and 90.8 Nm / 67 lb.-ft. @ 3600 rpm. Harley-Davidson Harley Davidson FXLR 1340 Low Rider Custom wet weight is 280 kg / 617.3 lbs. Harley-Davidson Harley Davidson FXLR 1340 Low Rider Custom has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FXLR 1340 Low Rider Custom |
| Years: | 1987-91 |
| Engine: | Four stroke, 45° V-Twin, OHV, 2 valves per cylinder. |
| Capacity: | 1337 cc / 81.5 cu-in |
| Bore x Stroke: | 88.8 x 108.0 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 7.4:1 |
| Induction: | 38mm Keihin carburetor |
| Ignition: | Electronic |
| Starting: | Electric |
| Max Power: | 50 hp / 35.8 kW @ 5000 rpm |
| Max Torque: | 90.8 Nm / 67 lb.-ft. @ 3600 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Belt |
| Front Suspension: | 38mm Showa telescopic forks |
| Rear Suspension: | Dual Showa shocks 5-way preload adjustable. |
| Front Brakes: | Single 292mm disc 1 piston caliper |
| Rear Brakes: | Single 292mm disc 1 piston caliper. |
| Front Tyre: | 100/90-19 |
| Rear Tyre: | 130/90-16 |
| Wet Weight: | 280 kg / 617.3 lbs |
| Fuel Capacity: | 15.5 Litres / 4.0 US gal |
