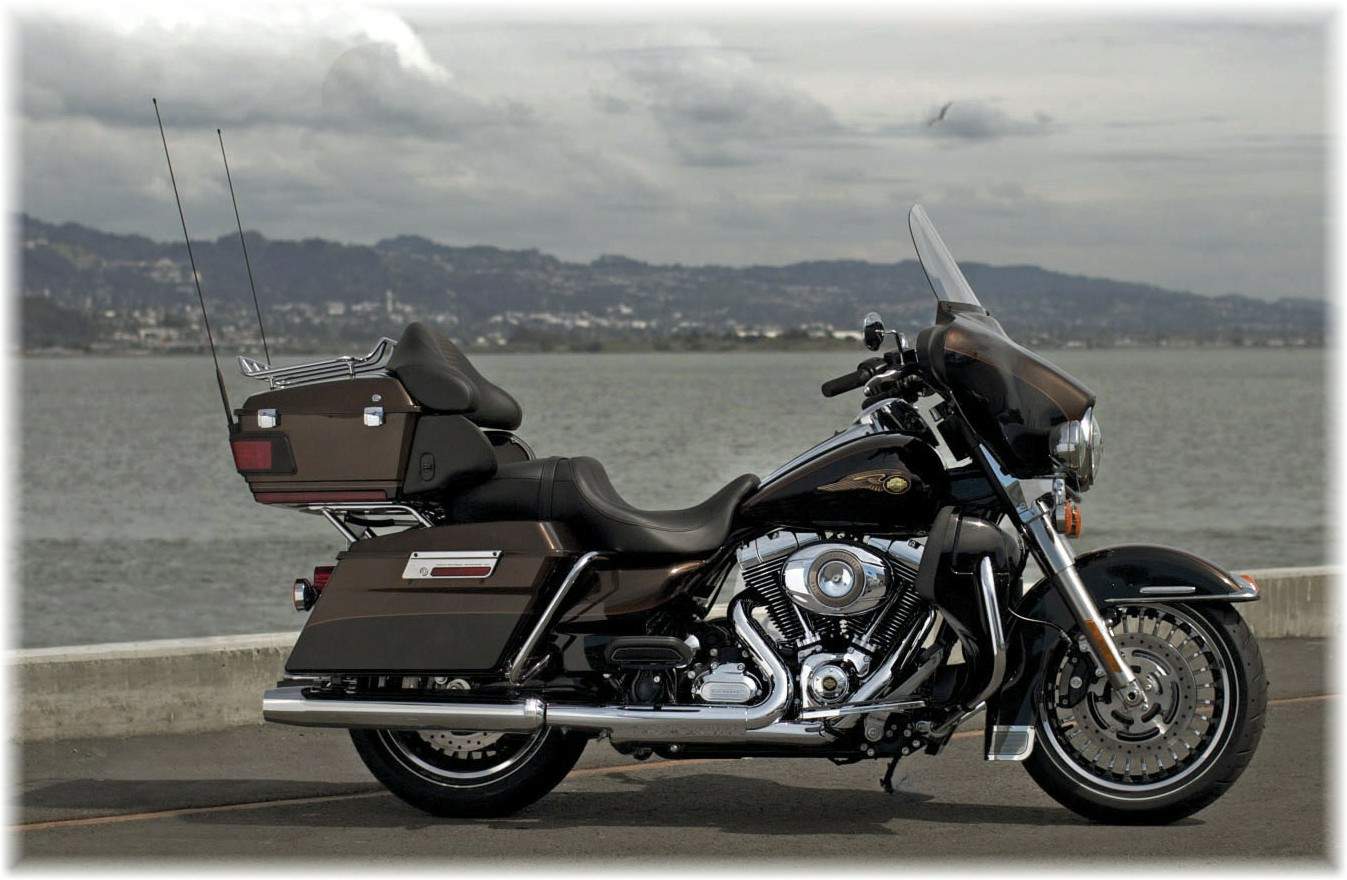

Harley-Davidson Harley Davidson FLHTK Electra Glide Ultra Limited 110th Anniversary (2013) technical specifications

Harley-Davidson Harley Davidson FLHTK Electra Glide Ultra Limited 110th Anniversary technical specifications

Harley-Davidson Harley Davidson FLHTK Electra Glide Ultra Limited 110th Anniversary is produced in 2013. Engine is Four stroke, Twin Cam 103™ with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, displacement 1690 cc / 103.1 cub in. Harley-Davidson Harley Davidson FLHTK Electra Glide Ultra Limited 110th Anniversary wet weight is 414 kg / 896 lbs. Harley-Davidson Harley Davidson FLHTK Electra Glide Ultra Limited 110th Anniversary has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson FLHTK Electra Glide Ultra Limited 110th Anniversary
Years: 2013
Engine: Four stroke, Twin Cam 103™ with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Capacity: 1690 cc / 103.1 cub in.
Bore x Stroke: 98.4 x 111.25 mm
Cooling System: Air/Liquid cooled,
Compression Ratio: 10.0:1
Exhaust: Chrome, 2-1-2 dual exhaust with tappered mufflers
Induction: Electronic Sequential Port Fuel Injection (ESPFI)
Ignition: Single-fire, non-wasted, map-controlled spark ignition
Starting: Electric
Max Torque: 143 Nm / 105.4 ft/lb @ 3750 rpm
Clutch: Multi-plate, wet
Transmission: 6 Speed
Final Drive: Belt
Gear Ratio: 1st 9.593 / 2nd 6.650 / 3rd 4.938 / 4th 4.000 / 5th 3.407 / 6th 2.875
Frame: Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Front Suspension: 41.3 mm telescopic, cartridge-style damping
Rear Suspension: Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded, Rear Shocks Air-adjustable
Front Brakes: 2x 300mm disc 4 piston caliper ABS
Rear Brakes: Single 300mm disc 4 piston caliper ABS
Wheels Front: Contrast Chrome Impeller Cast Aluminum
Wheels Rear: Contrast Chrome Impeller Cast Aluminum
Front Tyre: BW 130/80B17 65H
Rear Tyre: BW 180/65B16 81H
Rake: 26°
Trail: 170 mm / 6.6 IN
Dimensions: Length 2600 mm / 102.4 in.
Wheelbase: 1625 mm / 64 in.
Seat Height: Laden 695 mm / 27.3 in Unladen 740 mm / 29.1 in
Gross Vehicle Weight Rating: 616.9 kg / 1360 lbs
Wet Weight: 414 kg / 896 lbs
Oil Capacity: 3.8 Litres / 4 qt.
Fuel Capacity: 22.7 Litres / 6.0 US gal
