Harley-Davidson Harley Davidson FLHR Road King (2014) technical specifications

Harley-Davidson Harley Davidson FLHR Road King technical specifications

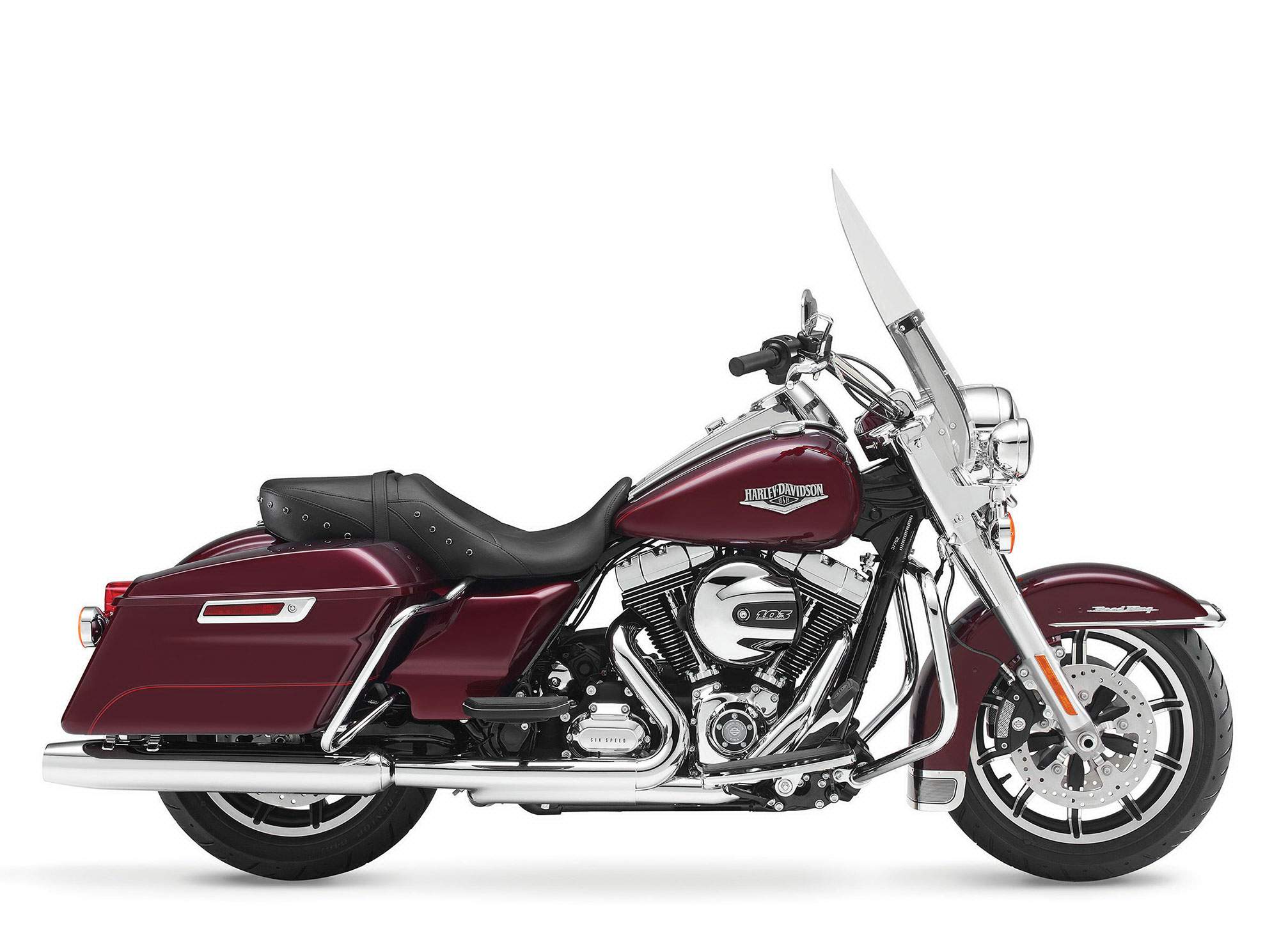

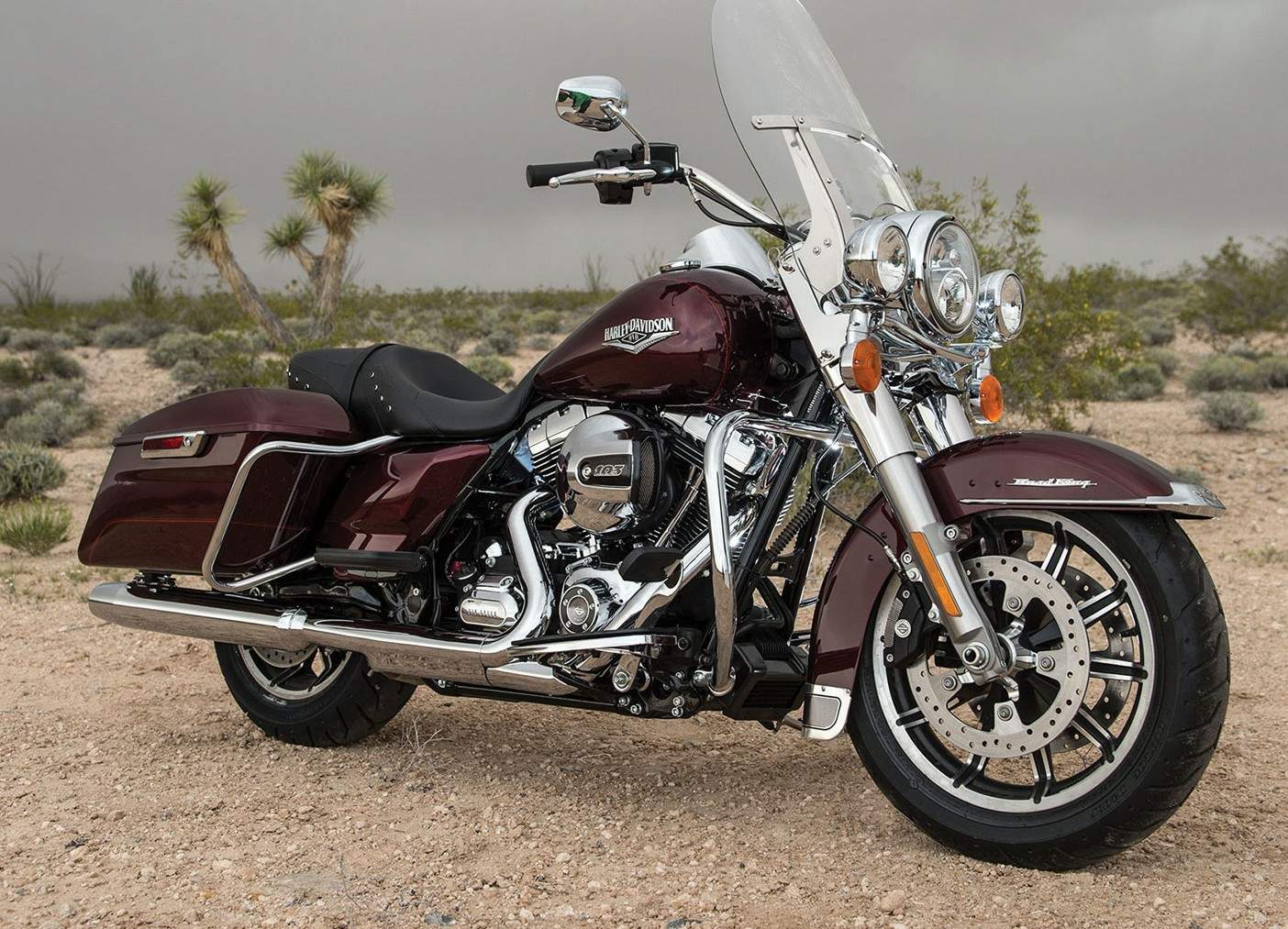

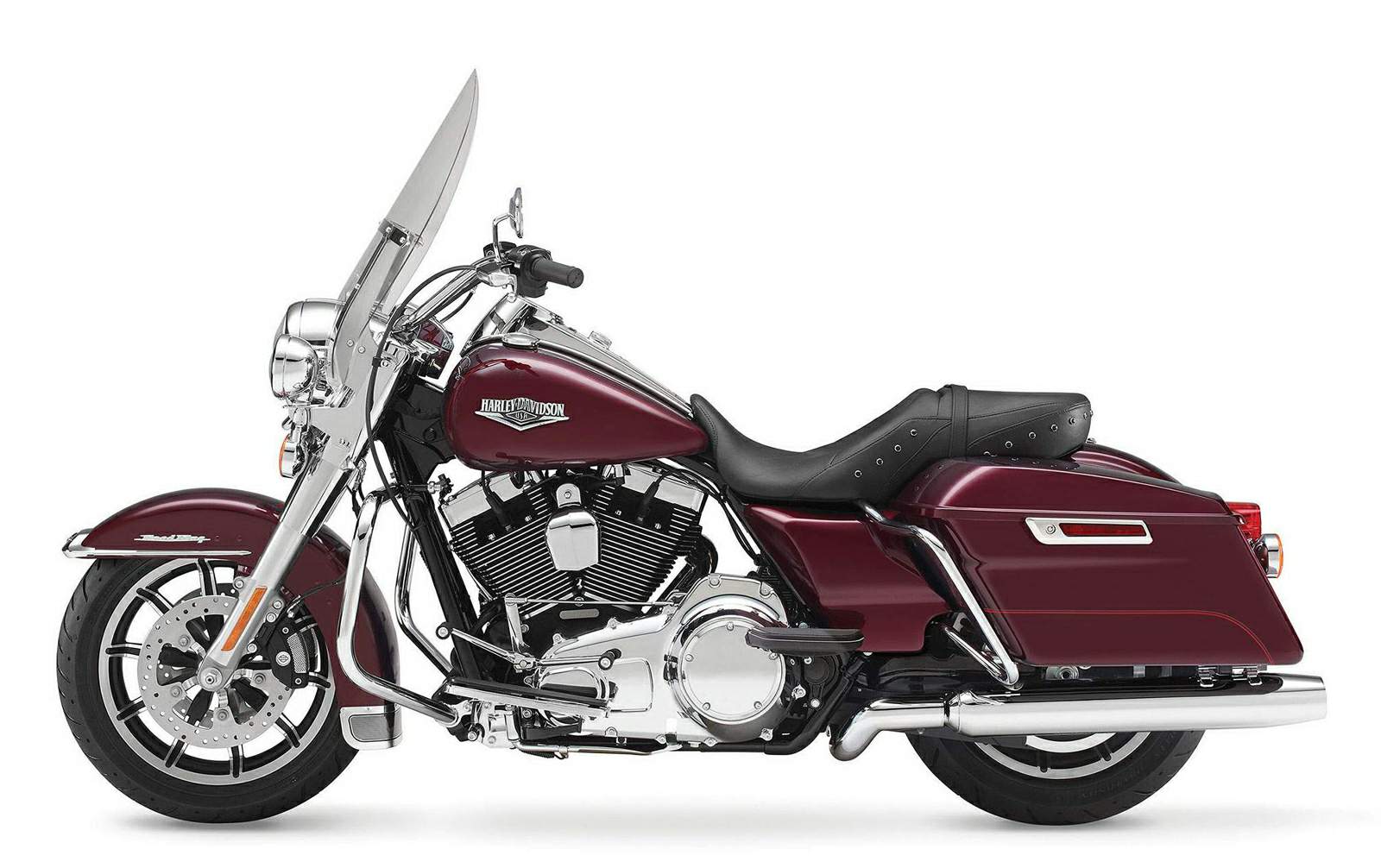

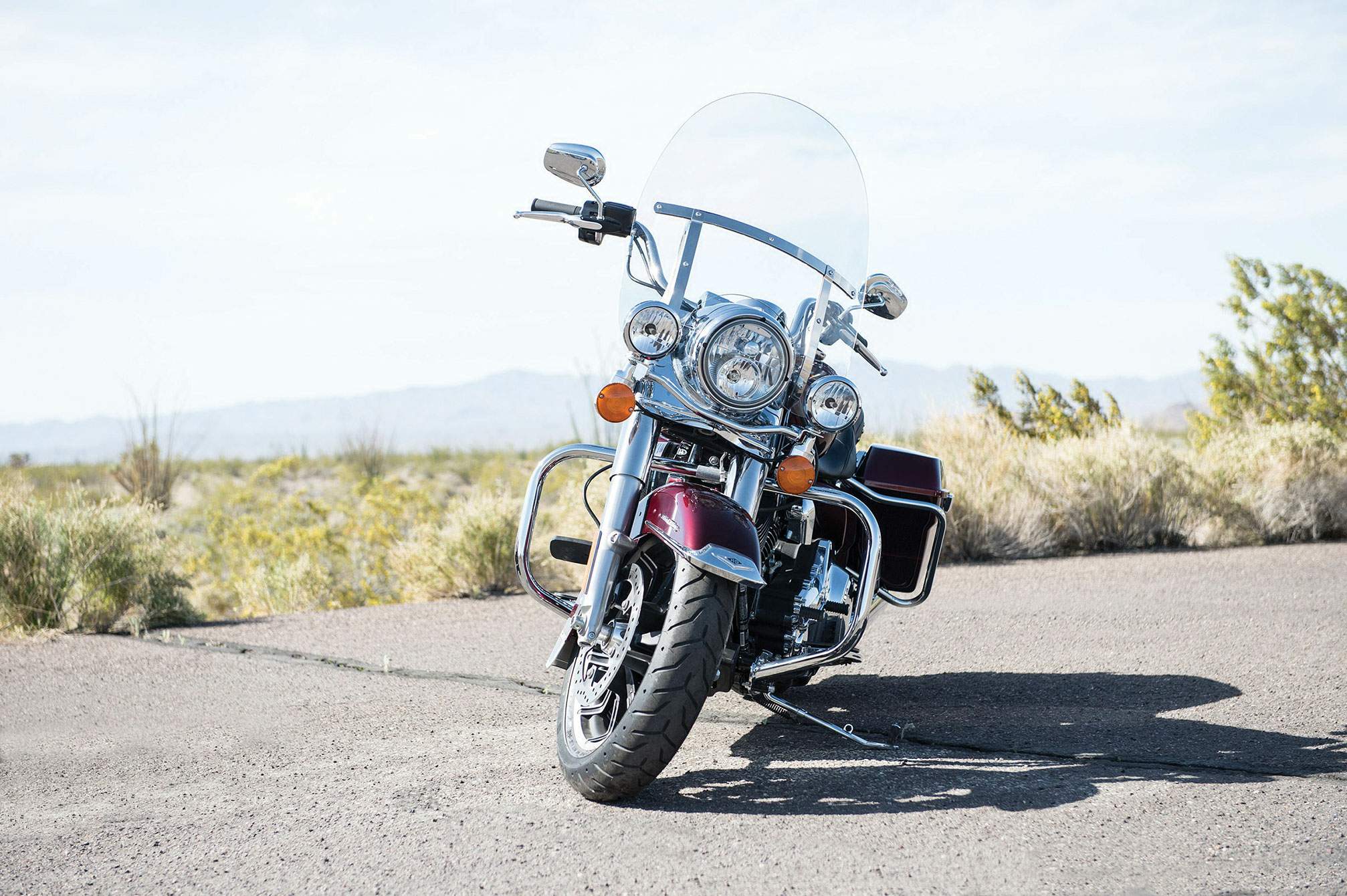

Harley-Davidson Harley Davidson FLHR Road King is produced in 2014. Engine is Four stroke, 45° V-Twin, Twin Cam 103 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder, displacement 1690 cc / 103.1 cub in. Harley-Davidson Harley Davidson FLHR Road King weighs 354 kg / 779 lbs. Harley-Davidson Harley Davidson FLHR Road King has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson FLHR Road King
Years: 2014
Engine: Four stroke, 45° V-Twin, Twin Cam 103 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Capacity: 1690 cc / 103.1 cub in.
Bore x Stroke: 98.4 x 111.1 mm
Cooling System: Air cooled
Compression Ratio: 9.7:1
Exhaust: Chrome, 2-1-2 dual exhaust with tapered mufflers
Induction: Electronic Sequential Port Fuel Injection (ESPFI)
Ignition: Single-fire, non-wasted, map-controlled spark ignition
Starring: Electric
Max Torque: 142 Nm / 14.5 kgf-m /104.7 ft/lb @ 3250 rpm
Transmission: 6 Speed
Final Drive: Belt
Primary Drive: Chain, 34/46 ratio
Gear Ratio: 1st 9.593 / 2nd 6.65 / 3rd 4.938 / 4th 4.0 / 5th 3.407 / 6th 2.875
Frame: Mild steel, square-section backbone with twin downtubes
Front Suspension: 41.3 mm telescopic, cartridge-style damping
Rear Suspension: Short, air-adjustable shock
Front Brakes: 2 x 292mm disc, 4 piston caliper
Rear Brakes: Single 292mm disc, 4 piston caliper
Wheels: Optional Style Type Tubeless Chrome Aluminum Profile Laced
Front Wheel: Black, 10-Spoke Cast Aluminum
Rear Wheel: Black, 10-Spoke Cast Aluminum
Front Tyre: 130/80B17 65H
Rear Tyre: 180/65B16 81H
Rake: 26°
Trail: 170 mm / 6.7 in
Dimensions: Length 2465 mm / 96.5 in
Wheelbase: 1625 mm / 64 in
Seat Height: Laden 673 mm / 26.5 in Unladen 711 mm / 28.0 in.
Gross Vehicle Weight Rating: 617 kg / 1360 lbs
Dry Weight: 354 kg / 779 lbs
Wet Weight: 371 kg / 814 lbs
Ground Clearance: 135 / 5.3 in
Oil Capacity: 3.3 Litres / 6.97 US pints
Fuel Capacity: 22.7 Litres / 6.0 gal
