Harley-Davidson Harley Davidson FLHR Road King (2013) technical specifications

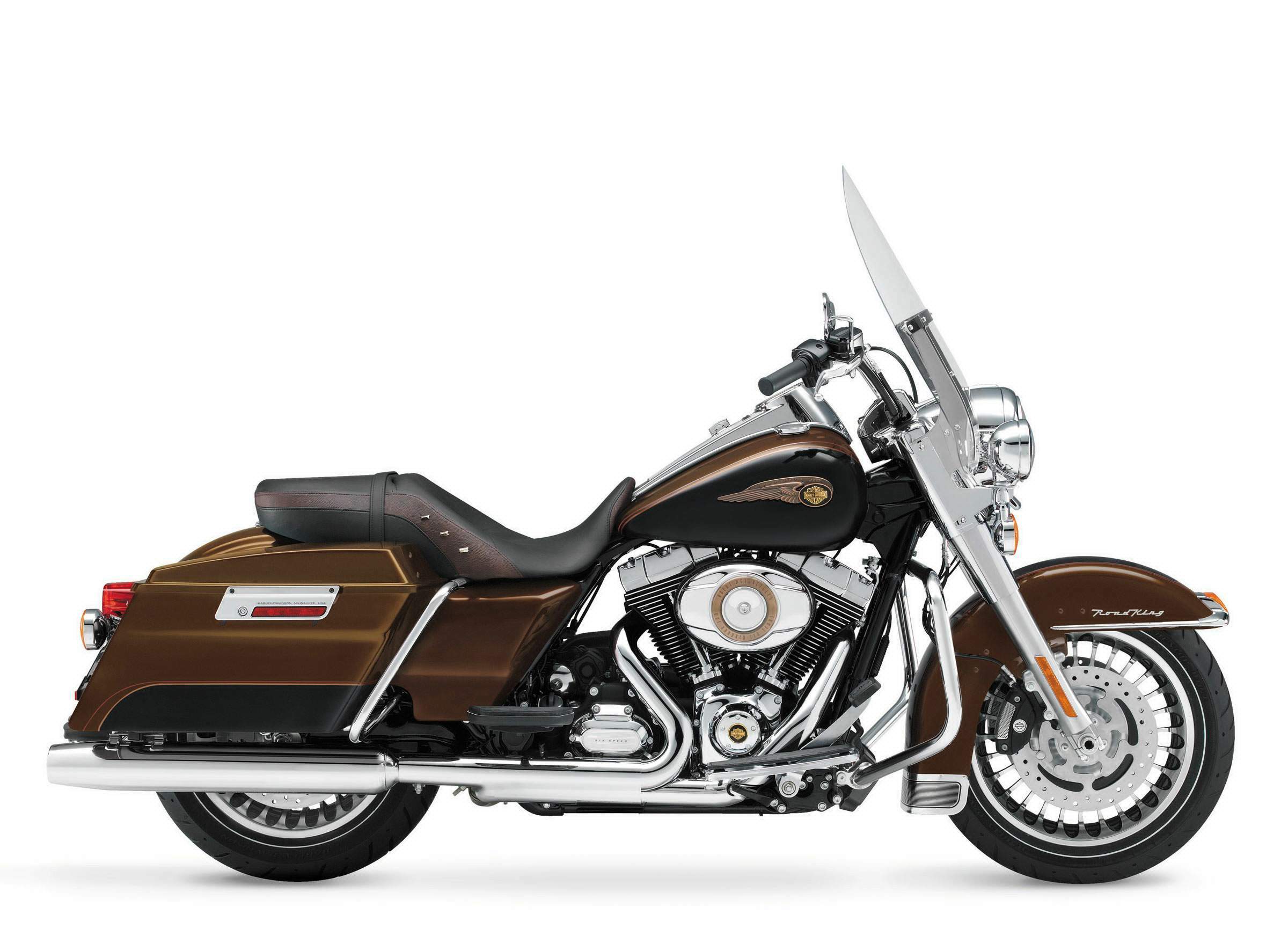

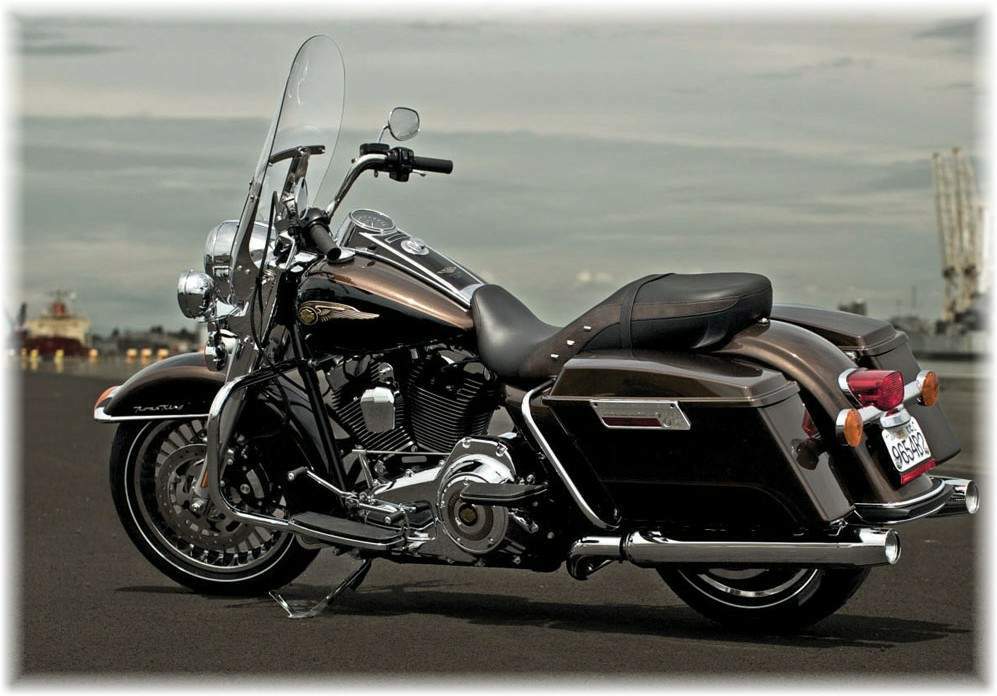

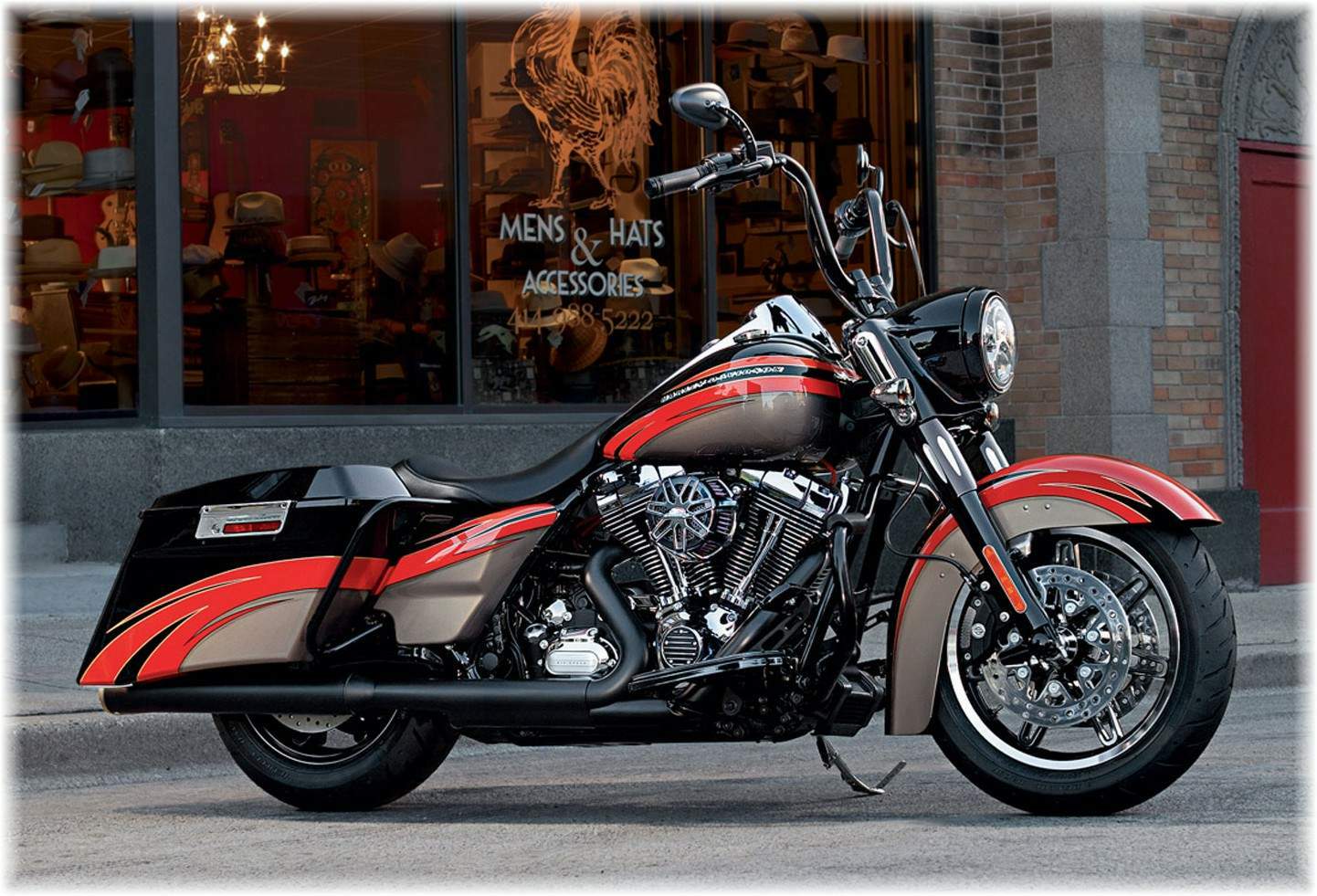

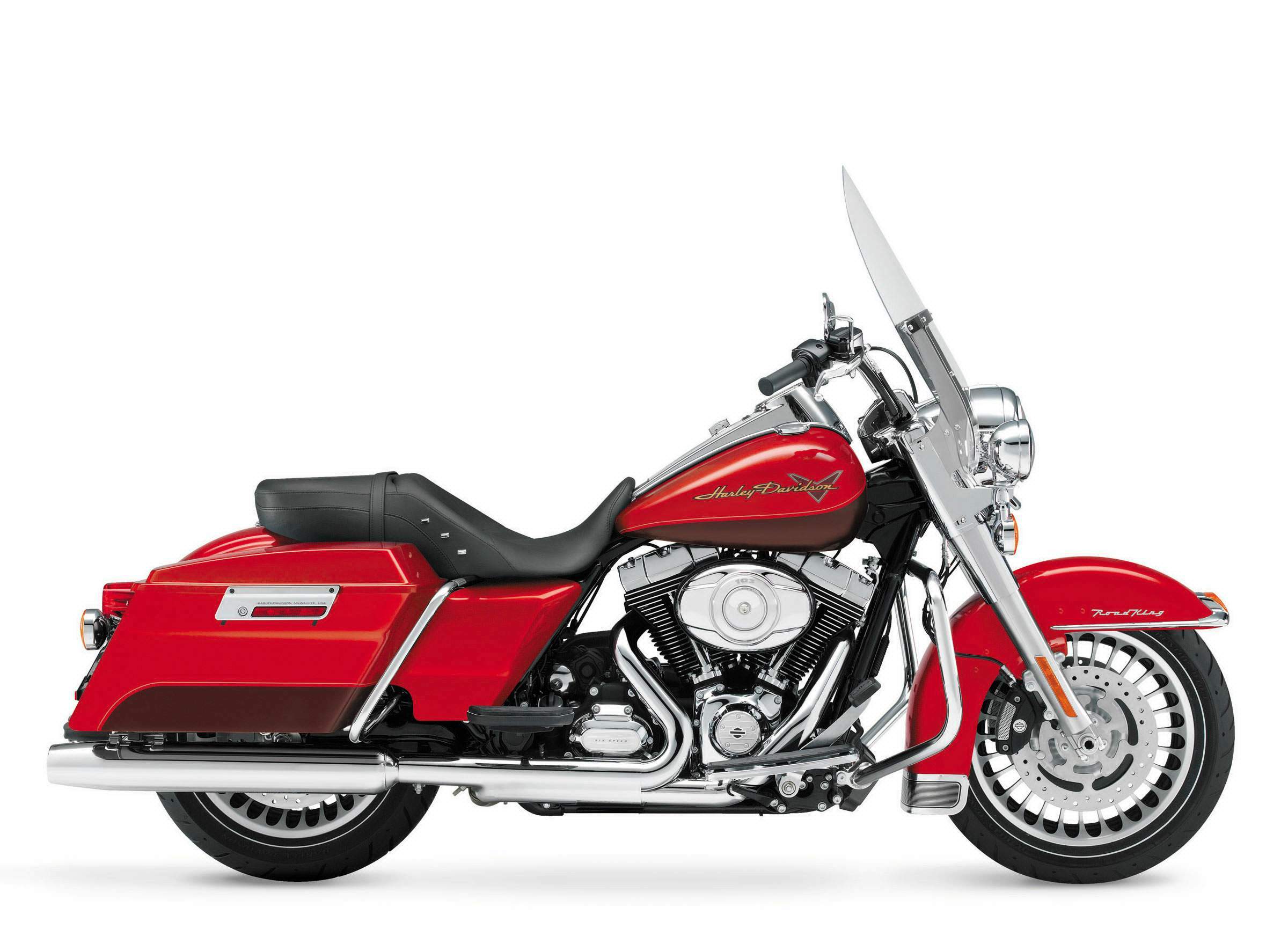

Harley-Davidson Harley Davidson FLHR Road King is produced in 2013. Engine is Four stroke, 45° V-Twin, Twin Cam 103 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder, displacement 1690 cc / 103 cu-in Harley-Davidson Harley Davidson FLHR Road King weighs 355 kg / 779 lbs. Harley-Davidson Harley Davidson FLHR Road King has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson FLHR Road King
Years:	2013
Engine:	Four stroke, 45° V-Twin, Twin Cam 103 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Capacity:	1690 cc / 103 cu-in
Bore x Stroke:	98.4 x 111.3 mm
Cooling System:	Air cooled
Compression Ratio:	9.6:1
Exhaust:	Chrome, 2-1-2 dual exhaust with tapered mufflers
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Ignition:	Single-fire, non-wasted, map-controlled spark ignition
Starring:	Electric
Max Torque:	134 Nm / 98.8 ft. lbs @ 3500 rpm
Transmission:	6 Speed
Final Drive:	Belt
Primary Drive:	Chain, 34/46 ratio
Gear Ratio:	1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Frame:	Mild steel, square-section backbone with twin downtubes
Front Suspension:	41.3 mm telescopic, cartridge-style damping
Rear Suspension:	Short, air-adjustable shock
Front Brakes:	2x 292mm disc 4 piston caliper
Rear Brakes:	Single 292mm disc 4 piston caliper
Wheels:	Optional Style Type Tubeless Chrome Aluminum Profile Laced
Front Wheel:	Black and Chrome, 28-spoke Cast Aluminum
Rear Wheel:	Black and Chrome, 28-spoke Cast Aluminum
Front Tyre:	130/80B17 65H
Rear Tyre:	180/65B16 81H
Rake:	26°
Trail:	170 mm / 6.7 in
Dimensions:	Length 2465 mm / 96.5 in
Wheelbase:	1625 mm / 64 in
Seat Height:	Laden 673 mm / 26.5 in Unladen 711 mm / 28.0 in.
Dry Weight:	355 kg / 779 lbs
Wet Weight:	368.3 kg / 812 lb
Ground Clearance:	145 mm / 5.7 in
Oil Capacity:	3.3 Litres / 0.87 US gal
Fuel Capacity:	22.7 Litres / 6.0 US gal
