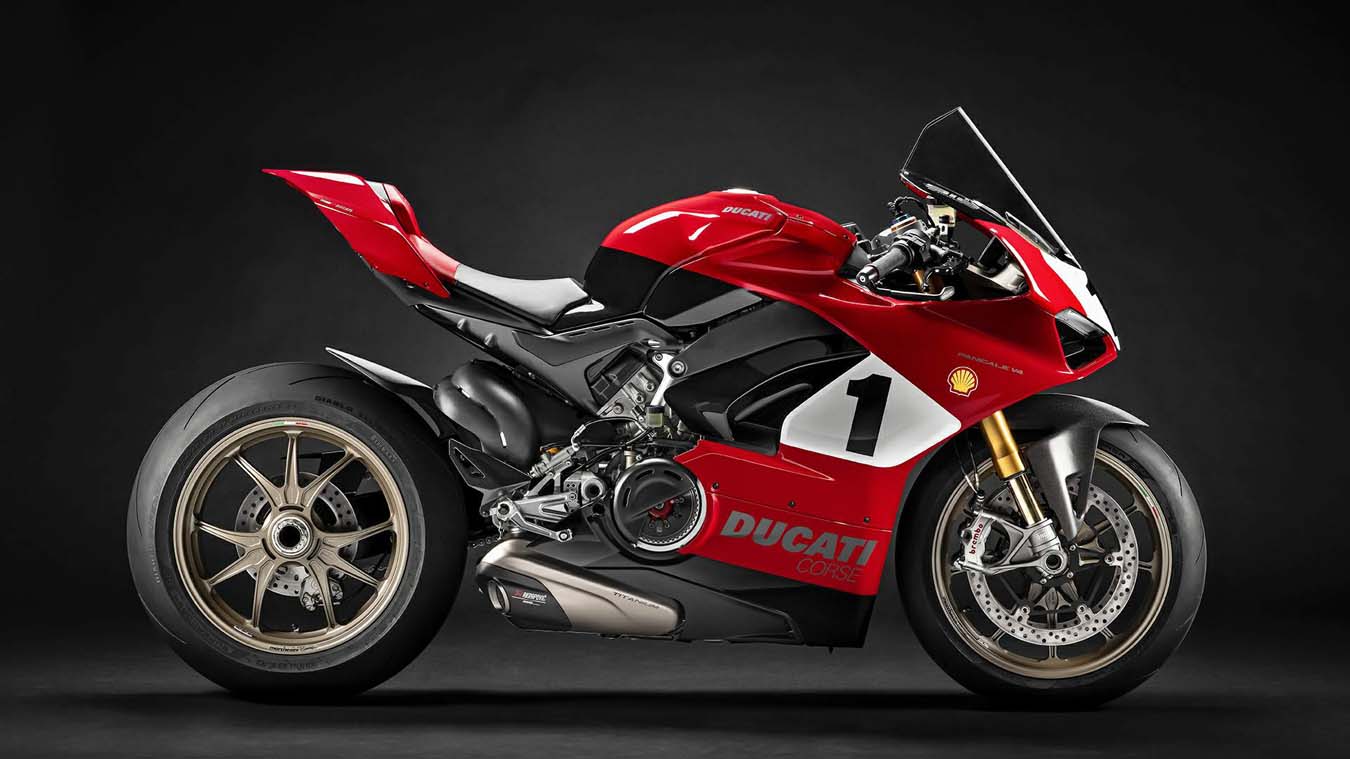

Ducati Panigale V4S 25° Anniversario 916 (2019) technical specifications

Ducati Panigale V4S 25° Anniversario 916 is produced in 2019. Engine is Four stroke, Desmosedici Stradale 90° V4, counter-rotating crankshaft, 4 desmodromic timing, 4 valves per cylinder, displacement 1103 cc / 67.3 cu in , produces power 157.5 kW / 214 hp @ 13000 rpm and 124.0 Nm / 91.5 lb-ft @ 10000 rpm. Ducati Panigale V4S 25° Anniversario 916 weighs 173 kg / 381 lbs. Ducati Panigale V4S 25° Anniversario 916 has 10 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Panigale V4S 25° Anniversario 916
Years:	2019
Production:	500 Units
Engine:	Four stroke, Desmosedici Stradale 90° V4, counter-rotating crankshaft, 4 desmodromic timing, 4 valves per cylinder
Capacity:	1103 cc / 67.3 cu in
Bore x Stroke:	81 x 53.5 mm
Compression Ratio:	14.0:1
Cooling System:	Liquid cooled
Induction:	Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system
Exhaust:	Akrapovič, 4-2-1-2 system, with 2 catalytic converters and 2 lambda probes
Starting:	Electric
Max Power:	157.5 kW / 214 hp @ 13000 rpm
Max Torque:	124.0 Nm / 91.5 lb-ft @ 10000 rpm
Clutch:	Hydraulically controlled slipper and self-servo wet multiplate clutch
Transmission :	6 Speed with Ducati Quick Shift (DQS) up/down EVO
Primary Drive:	Straight cut gears, ratio 1.80:1
Final drive:	Chain, front sprocket 16, rear sprocket 41
Gear Ratio:	1=38/14 2=36/17 3=33/19 4=32/21 5=30/22 6=30/24
Frame:	Aluminum alloy "Front Frame" with optimized stiffnesses
Front Suspension:	Öhlins NIX30 43 mm fully adjustable fork with TiN treatment. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Progressive linkage with fully adjustable Öhlins monoshock with top-out spring. Aluminium single-sided swingarm
Rear Wheel travel:	130 mm / 5.1 in
Front Brakes:	2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema® (M4.30) 4-piston callipers with Bosch Cornering ABS EVO
Rear Brakes:	Single 245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO
Front Wheel:	3-spokes aluminum alloy 3.50" x 17"
Front Tyre:	120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear Wheel:	3-spokes aluminum alloy 6.00" x 17"
Rear Tyre:	200/60 ZR17 Pirelli Diablo Supercorsa SP
Rake:	24,5°
Trail:	100 mm / 3.9 in
Wheelbase:	1469 mm / 57.8 in
Seat Height:	830 mm / 32.4 in
Dry Weight:	173 kg / 381 lbs
Wet Weight:	194 kg / 428 lbs
Fuel Capacity :	16 Litres / 4.3 US gal / 3.9 Imp gal
Instruments:	Last generation digital unit with 5" TFT colour display
Seats:	Single seat
Safety Equipment:	Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO 2, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO, Auto tyre calibration
Standard Equipment:	Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO, Full LED lighting with Daytime Running Light (DRL), Ducati Electronic Suspension (DES) EVO with Ohlins suspension and steering damper, Quick adjustment buttons, Lithium-ion battery, Auto-off indicators, Marchesini aluminium forged wheels
Additional Equipment:	Racing windshield, Machined mirror block-off plates, License plate mount removal plug, Ducati Data Analyser+ (DDA+) with GPS module, Paddock bike cover
Ready For:	Ducati Data Analyser+ (DDA+) with GPS module, Ducati Multimedia System (DMS) and anti-theft
