2021 Ducati Panigale V4 SP technical specifications

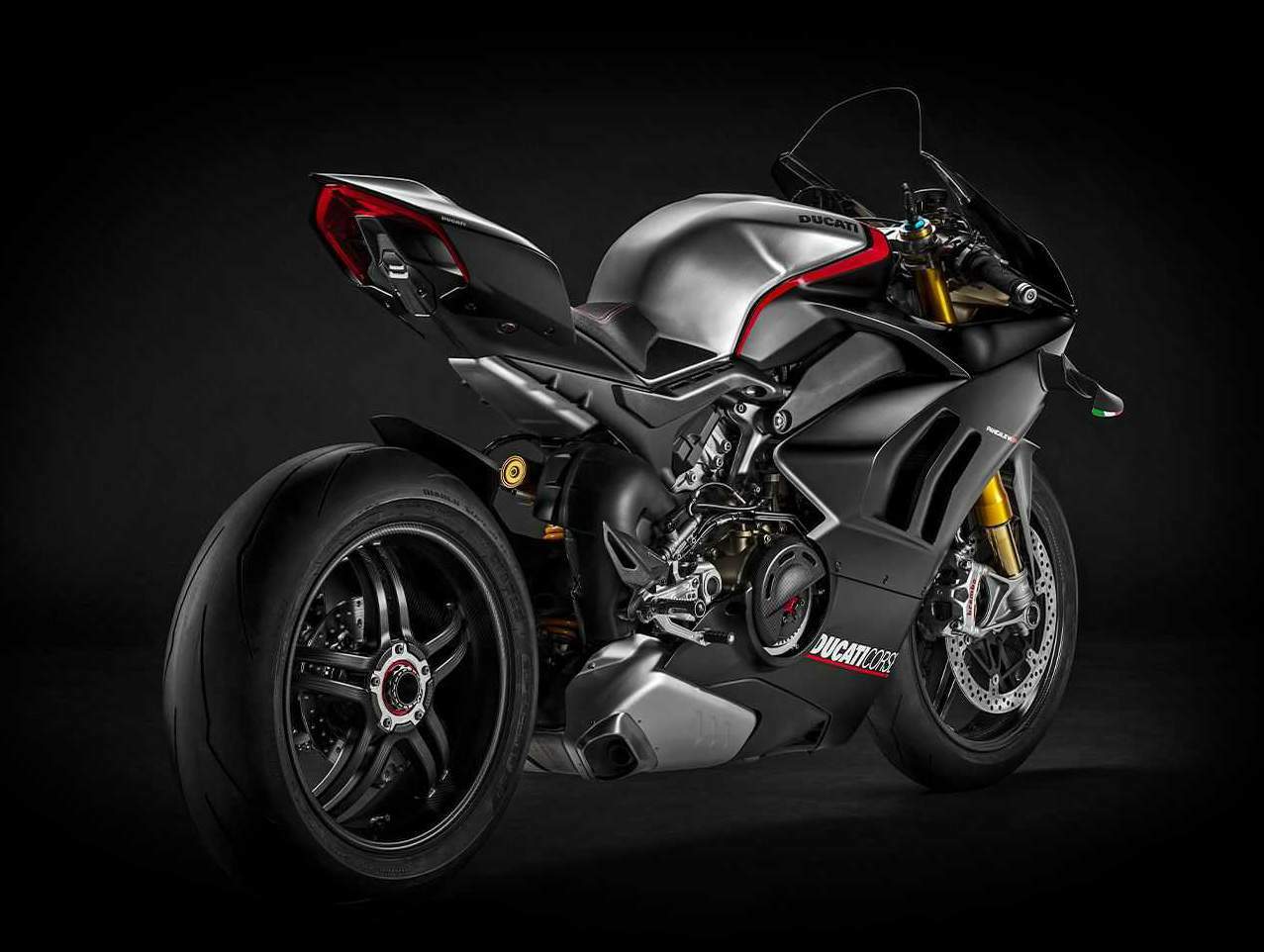

Ducati Panigale V4 SP technical specifications

Technical specifications

Model: Panigale V4 SP
Years: 2021
Engine: Four stroke, Desmosedici Stradale 90° V4, counter-rotating crankshaft, 4 Desmodromic timing, 4 valves per cylinder
Capacity: 1103 cc / 67.3 cu in
Bore x Stroke: 81 x 53.5 mm
Compression Ratio: 14.0:1
Cooling System: Liquid cooled
Induction: Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system
Emission: EURO5
Exhaust: 4-2-1-2 system, with 2 catalytic converters and 4 lambda probes
Starting: Electric
Max Power: 157.5 kW / 214 hp @ 13000 rpm
Max Torque: 124.0 Nm / 91.5 lb-ft @ 9500 rpm
Clutch: Hydraulically controlled slipper dry clutch. Self bleeding master cylinder
Transmission: 6 Speed with Ducati Quick Shift (DQS) up/down EVO 2
Primary Drive: Straight cut gears, Ratio 1.80:1
Final drive: Chain 520, Front sprocket 16, Rear sprocket 41
Gear Ratio: 1st 38/14 2nd 36/17 3rd 33/19 4th 32/21 5th 30/22 6th 30/24
Frame: Aluminum alloy "Front Frame" with optimized stiffnesses
Front Suspension: Öhlins NIX30 43 mm fully adjustable fork with TiN treatment. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Fully adjustable Öhlins TTX36 unit. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode. Aluminium single-sided swingarm
Rear Wheel travel: 130 mm / 5.1 in
Front Brakes: 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema® R 4-piston callipers with Bosch Cornering ABS EVO. Self bleeding Brembo MCS 19.21 master cylinder
Rear Brakes: Single 245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO
Front Wheel: 5-split spoke carbon fiber 3.50 x 17

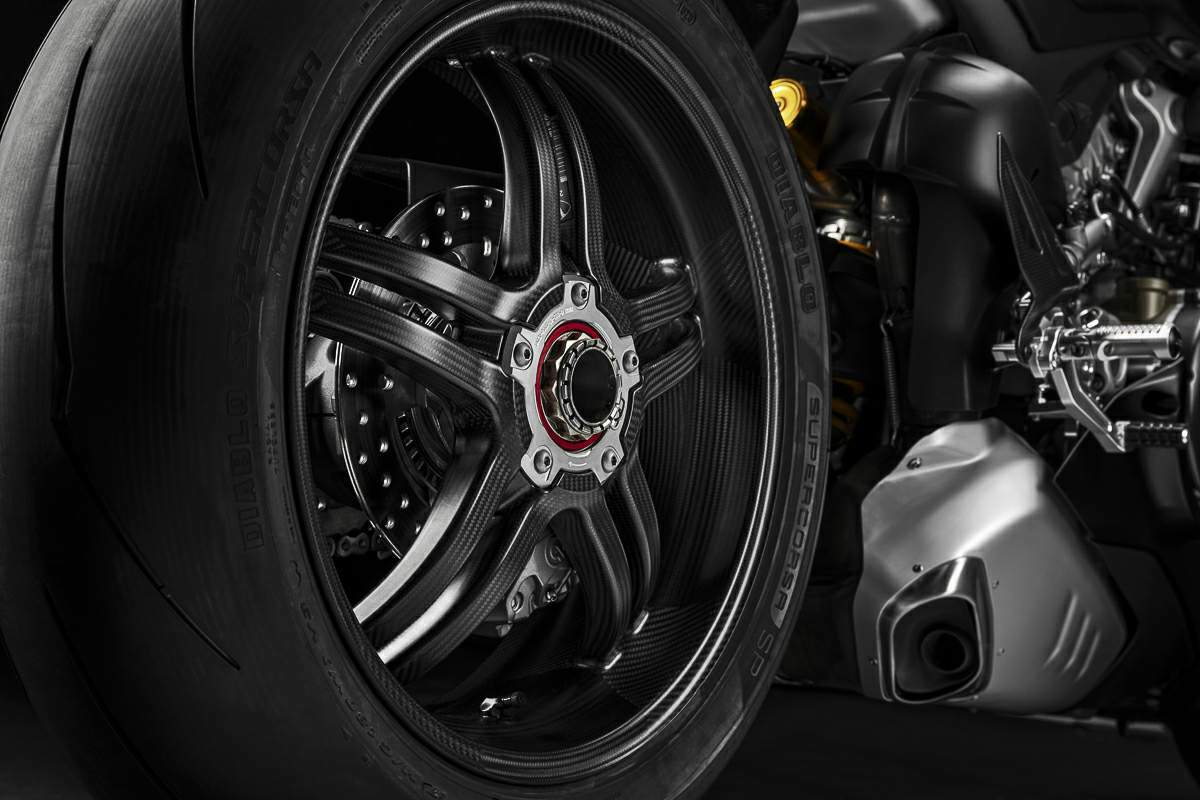

Rear Wheel: 5-split spoke carbon fiber 6.00x 17
Front Tyre: 120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear Tyre: 200/60 ZR17 Pirelli Diablo Supercorsa SP
Rake: 24.5°
Trail: 100 mm / 3.94 in
Wheelbase: 1469 mm / 57.8 in
Seat Height: 835 mm / 32.9 in
Dry Weight: 173 kg / 381 lbs
Wet Weight: 194 kg / 427 lbs
Fuel Capacity: 16 Litres / 4.3 US gal / 3.9 Imp gal
