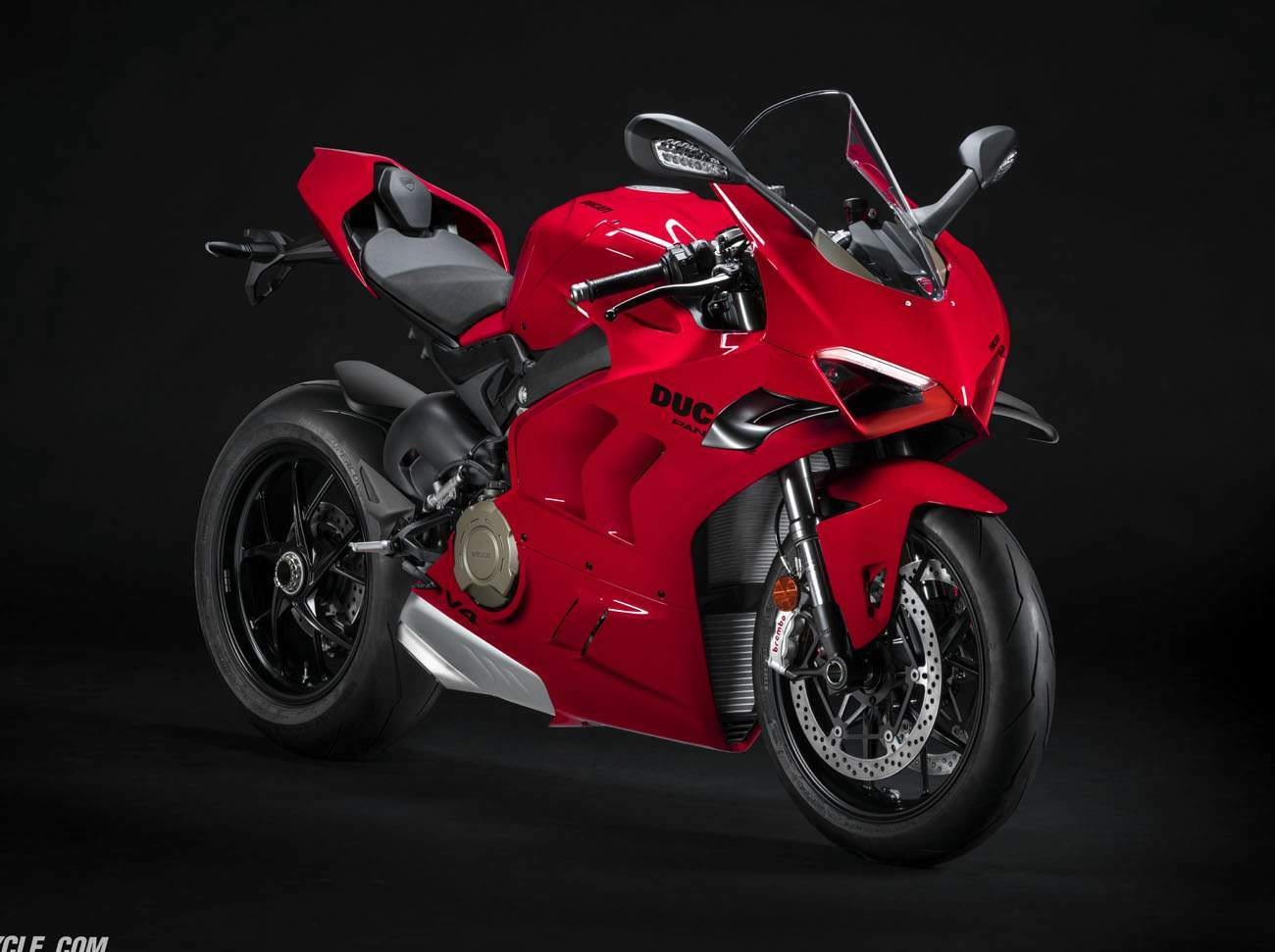

Ducati Panigale V4 (2022) technical specifications

Ducati Panigale V4 technical specifications

Ducati Panigale V4 is produced in 2022. Engine is Four stroke, Desmosedici Stradale 90° V4, rearward-rotating crankshaft, 4 Desmodromically actuated valves per cylinder, displacement 1103 cc / 67.3 cu in , produces power 210 hp / 154.4 kW @ 12500 rpm US spec 215.5 hp / 158.5 kW @ 13000 rpm Euro 5 spec and 122.8 Nm / 90.6 lb-ft. @ 11000 rpm US spec 123.6 Nm / 91.2 lb-ft. @ 9500 rpm Euro 5 spec. Ducati Panigale V4 weighs 175 kg / 386 lbs. Ducati Panigale V4 has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: Panigale V4
Years: 2022
Engine: Four stroke, Desmosedici Stradale 90° V4, rearward-rotating crankshaft, 4 Desmodromically actuated valves per cylinder
Capacity: 1103 cc / 67.3 cu in
Bore x Stroke: 81 x 53.5 mm
Compression Ratio: 14.0:1
Cooling System: Liquid cooled
Induction: Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system
Exhaust: 4-2-1-2 system, with 2 catalytic converters and 4 lambda probes
Starting: Electric
Max Power: 210 hp / 154.4 kW @ 12500 rpm US spec 215.5 hp / 158.5 kW @ 13000 rpm Euro 5 spec
Max Torque: 122.8 Nm / 90.6 lb-ft. @ 11000 rpm US spec 123.6 Nm / 91.2 lb-ft. @ 9500 rpm Euro 5 spec
Clutch: Hydraulically controlled slipper and self-servo wet multiplate clutch. Self bleeding master cylinder.
Transmission: 6 speed with Ducati Quick Shift (DQS) up/down EVO 2
Primary Drive: Straight cut gears; Ratio 1.80:1
Final Drive: Chain 525; Front sprocket 16; Rear sprocket 41
Gear Ratio: 1st 38/14 2nd 36/17 3rd 33/19 4th 32/21 5th 30/22 6th 30/24
Frame: Aluminum alloy "Front Frame" with optimized stiffnesses
Front Suspension: Fully adjustable Showa BPF fork 43 mm chromed inner tubes
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Fully adjustable Sachs unit. Aluminum single-sided swingarm
Rear Wheel travel: 130 mm / 5.1 in
Front Brakes: 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema® (M4.30) 4-piston callipers with. Self bleeding master cylinder.
Rear Brakes: Single 245 mm disc, 2-piston calliper
ABS: Bosch Cornering ABS EVO
Front Wheel: 5-spokes light alloy 3.50 x 17
Rear Wheel: 5-spokes light alloy 6.00 x 17
Front Tyre: 120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear Tyre: 200/60 ZR17 Pirelli Diablo Supercorsa SP
Rake: 24.5°
Trail: 100 mm / 3.9 in
Wheelbase: 1469 mm / 57.8 in
Seat Height: 850 mm / 32.5 in
Dry Weight: 175 kg / 386 lbs
Wet Weight: 198.5 kg / 437 lbs
Fuel Capacity: 17 Litres / 4.49 US gal
