Ducati Multistrada V4S Sport (2021) technical specifications

Ducati Multistrada V4S Sport technical specifications

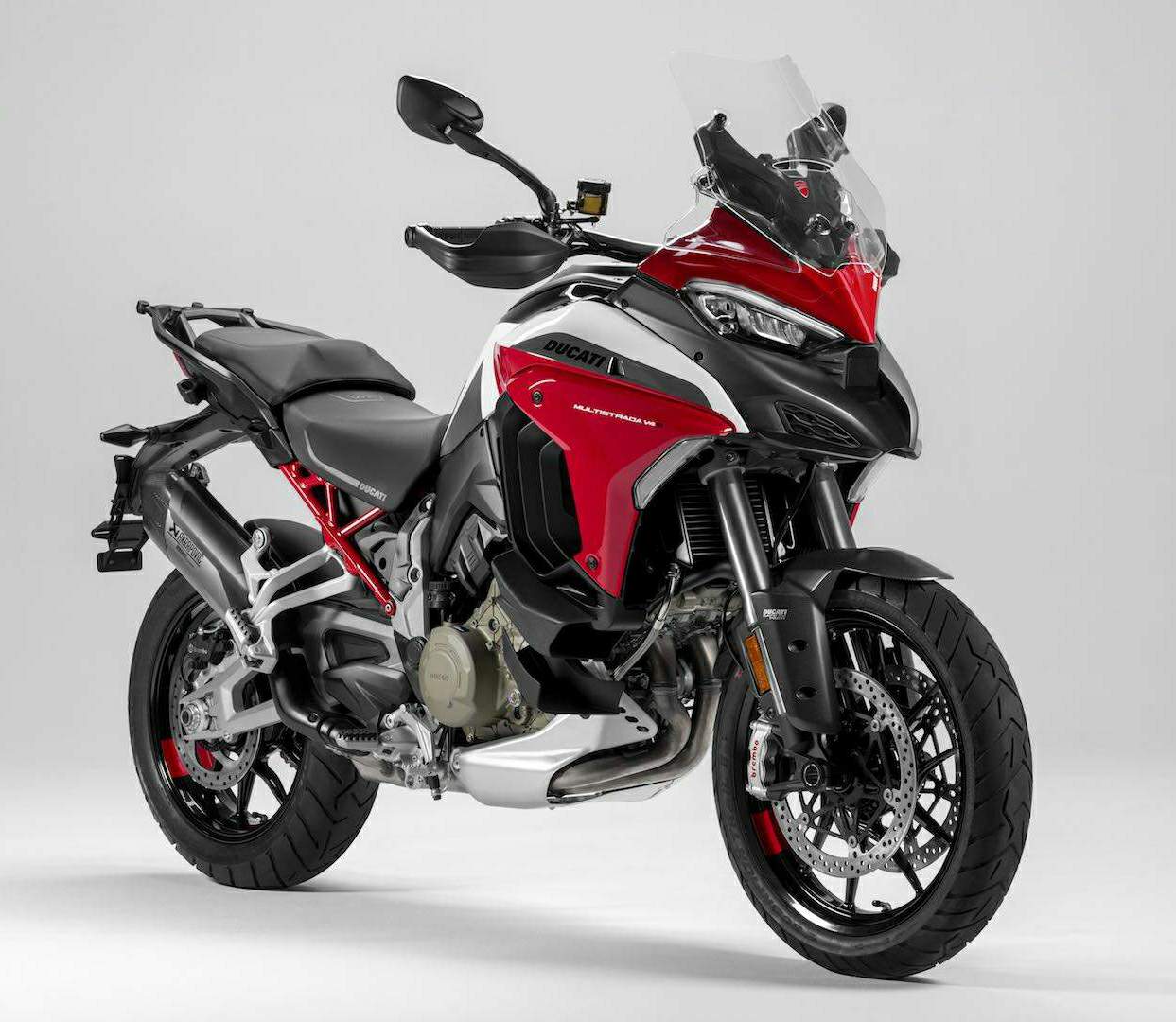

Ducati Multistrada V4S Sport is produced in 2021. Engine is Four stroke, 90° Granturismo V 4, counter rotating crankshaft, 4 valves per cylinder, Twin Pulse firing order, displacement 1158 cc / 71 cu in , produces power 170 hp / 125 kW @ 10,500 rpm and 125 Nm / 92 lb-ft @ 8,750 rpm. Ducati Multistrada V4S Sport weighs 217 kg / 478 lbs. Ducati Multistrada V4S Sport has 8 photos.

Technical specifications

+ Add to 'Compare list'
Model: Multistrada V4S Sport
Years: 2021
Engine: Four stroke, 90° Granturismo V 4, counter rotating crankshaft, 4 valves per cylinder, Twin Pulse firing order
Capacity: 1158 cc / 71 cu in
Bore x Stroke: 83 x 53.5 mm
Compression Ratio: 14.0:1
Cooling System: Liquid cooled
Exhaust: Type-approved Akrapovič muffler
Emission: Euro 5
Induction: Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system
Starting: Electric
Max Power: 170 hp / 125 kW @ 10,500 rpm
Max Torque: 125 Nm / 92 lb-ft @ 8,750 rpm
Clutch: Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run
Transmission: 6-speed gearbox with Ducati Quick Shift (DQS) Up & Down System
Final Drive: Chain, front sprocket z16, rear sprocket z42
Gear Ratios: 1st 40/13, 2nd 36/16, 3rd 34/19, 4th 31/21, 5th 23/29, 6th 25/27
Primary Drive: Straight cut gears, ratio 1.8:1
Frame: Aluminum monocoque frame
Front Suspension: 50 mm fully adjustable USD fork, electronic compression and rebound damping adjustment with Ducati Skyhook Suspension
Front Wheel Travel: 170 mm / 6.7 in
Rear Suspension: Fully adjustable monoshock, electronic adjustment with Ducati Skyhook Suspension, aluminum double-sided swingarm
Rear Wheel Travel: 180 mm / 7.1 in
Front Brakes: 2x 330mm semi-floating discs, radially mounted Brembo M50 Stylema monobloc 4-piston 2-pad calipers, radial master cylinder
Rear Brakes: Single 265mm disc, Brembo 2-piston floating caliper
ABS System: Standard Cornering ABS
Wheels: Light alloy cast
Front Rim: 3 x 19 in
Rear Rim: 4.5 x 17 in
Front Tyre: 120/70 ZR 19 Pirelli Scorpion Trail II
Rear Tyre: 170/60 ZR 17 Pirelli Scorpion Trail II
Rake: 24.5°
Trail: 102.5 mm / 4.0 in
Wheelbase: 1567 mm / 61.7 in
Seat Height: 840 mm - 860 mm / 33.1 in - 33.9 in - Adjustable
Ground Clearance: 220 mm / 8.6 in
Dry Weight: 217 kg / 478 lbs
Wet Weight: 242 kg / 533 lbs
Fuel Capacity: 22 Litres / 5.8 US gal
