Ducati Multistrada 1260 (2020) technical specifications

Ducati Multistrada 1260 technical specifications

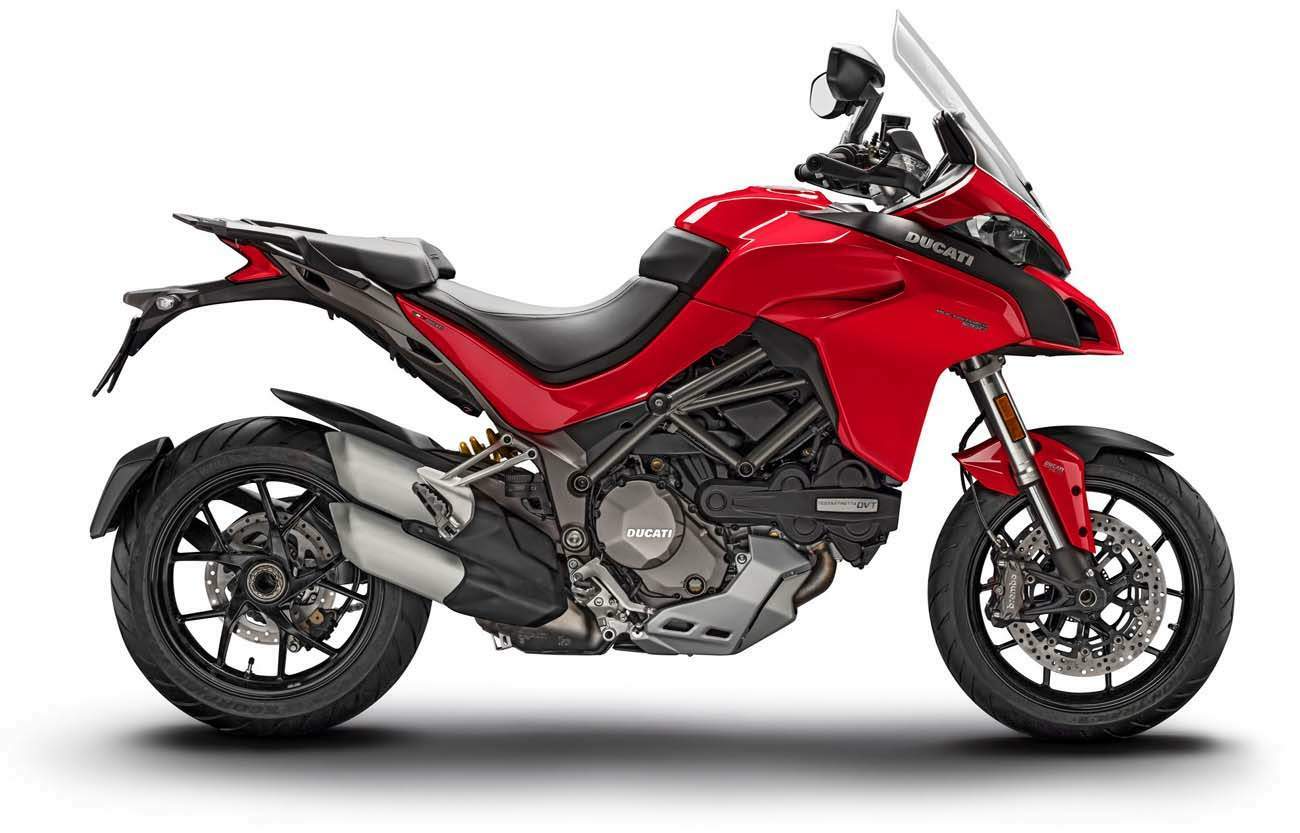

Ducati Multistrada 1260 is produced in 2020. Engine is Four stroke, 90° “L” twin cylinders,Testastretta DVT with Desmodromic Variable Timing, DOHC, 4 valves per cylinder, displacement 1262 cc / 77.0 cu-in , produces power 156 hp / 116.2 kW @ 9500 rpm and 130 Nm / 96.2 lb-ft @ 7500 rpm. Ducati Multistrada 1260 weighs 209 kg / 461 lbs. Ducati Multistrada 1260 has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: Multistrada 1260
Years: 2020
Engine: Four stroke, 90° “L” twin cylinders,Testastretta DVT with Desmodromic Variable Timing, DOHC, 4 valves per cylinder
Capacity: 1262 cc / 77.0 cu-in
Bore x Stroke: 106 x 71,5 mm
Cooling System: Liquid cooled
Compression Ratio: 13.0:1
Lubrication: Wet sump
Exhaust: Stainless steel muffler with catalytic converter and 2 lambda probes, aluminium tail pipes
Induction: Bosch electronic fuel injection system, elliptical throttle bodies with Ride-by-Wire, equivalent diameter 56 mm
Ignition: Marelli electronic
Starting: Electric
Max Power: 156 hp / 116.2 kW @ 9500 rpm
Max Torque: 130 Nm / 96.2 lb-ft @ 7500 rpm
Clutch: Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
Transmission: 6 Speed
Final Drive: Chain; Front sprocket 15; Rear sprocket 40
Primary Drive: Straight cut gears; Ratio 1.84:1
Gear Ratio: 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
Frame: Tubular steel trellis frame
Front Suspension: 48 mm fully adjustable USD forks.
Front Wheel Travel: 170 mm / 6.7 in
Rear Suspension: Fully adjustable Sachs monoshock unit. Remote spring preload adjustment. Aluminium single-sided swing-arm.
Rear Wheel Travel: 170 mm / 6.7 in
Front Brakes: 2 x 320 mm semi-floating discs, radially mounted monobloc Brembo callipers, 4-piston, 2-pad, with cornering ABS as standard equipment
Rear Brakes: Single 265 mm disc, 2-piston floating calliper, with cornering ABS as standard equipment
Front Wheel: 5-spoke Y-shape cast light alloy 3.50" x 17"
Rear Wheel: 5-spoke Y-shaped cast light alloy 6.00" x 17"
Front Tyre: 120/70 R17 Pirelli Scopion Trail II
Rear Tyre: 190/55 R17 Pirelli Scorpion Trail II
Rake: 24°
Trail: 109 mm / 4.3 in
Wheelbase: 1529 mm / 60.2 in
Seat Height: Adjustable 825 mm / 32.5 in - 845 mm / 33.3 in
Dry Weight: 209 kg / 461 lbs
Wet Weight: 232 kg / 511 lbs
Fuel Capacity: 20 Litres / 5.3 US gal / 4.4 Imp gal
Instrumentation: LCD
Electronics: 1260 model: Vehicle Hold Control (VHC), Riding Modes, Power Modes, Ducati Safety Pack (Bosch Cornering ABS + DTC), Ducati Wheelie Control (DWC), Cruise control, Hands-Free, Backlit handlebar switches, Auto-off indicators, ready for Ducati Quick Shift (DQS) up/down, Ducati Multimedia System (DMS), Anti-theft system.
