Ducati Multistrada 1200S Enduro Pro (2017-18) technical specifications

Ducati Multistrada 1200S Enduro Pro technical specifications

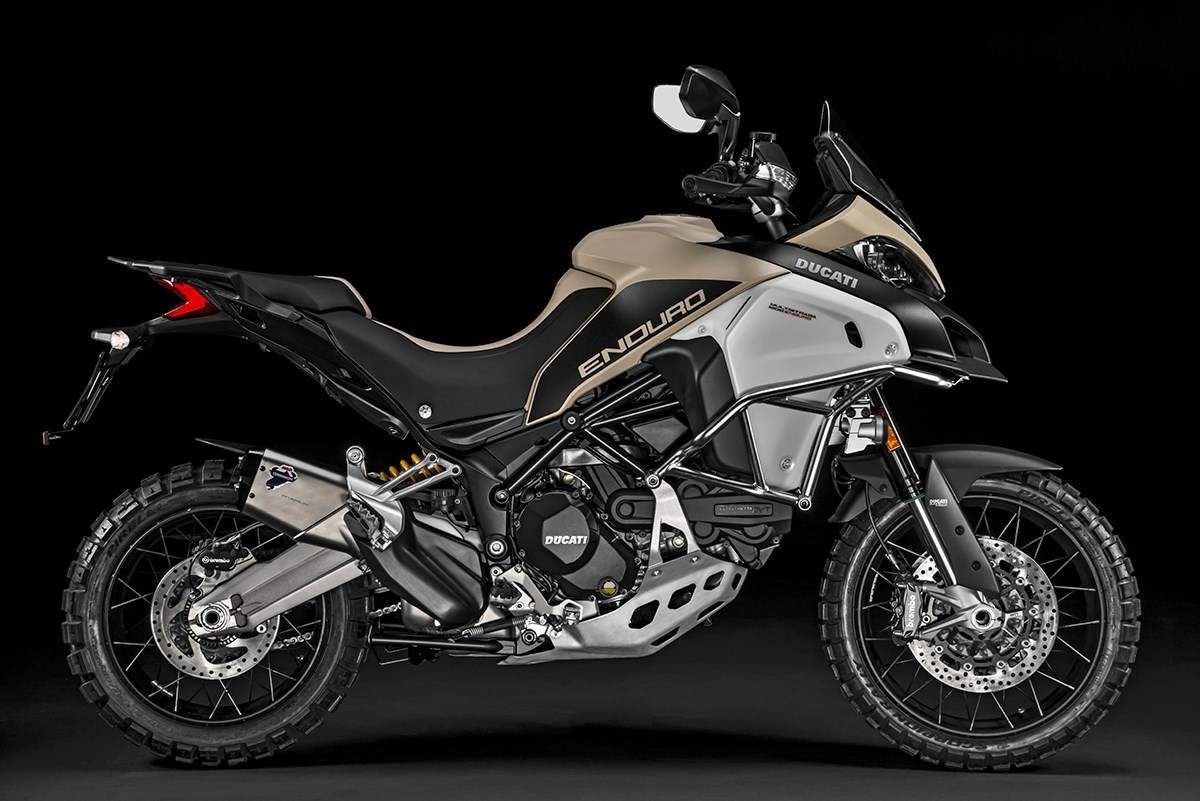

Ducati Multistrada 1200S Enduro Pro is produced in 2017-18. Engine is Four stroke, 90° “L” twin cylinders,Testastretta DVT with Desmodromic Variable Timing, DOHC, 4 valves per cylinder, displacement 1198.4 cc / 73.1 cu-in , produces power 113.3 kW / 152 hp @ 9500 rpm and 128 Nm / 94 lb-ft @ 7500 rpm. Ducati Multistrada 1200S Enduro Pro wet weight is 261 kg / 575 lbs. Ducati Multistrada 1200S Enduro Pro has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: Multistrada 1200S Enduro Pro
Years: 2017-18
Engine: Four stroke, 90° “L” twin cylinders,Testastretta DVT with Desmodromic Variable Timing, DOHC, 4 valves per cylinder
Capacity: 1198.4 cc / 73.1 cu-in
Bore x Stroke: 106 x 67.9 mm
Cooling System: Liquid cooled
Compression Ratio: 12.5:1
Lubrication: Wet sump
Exhaust: Titanium Termignoni
Induction: Bosch electronic fuel injection system, elliptical throttle bodies with Ride-by-Wire, equivalent diameter 56 mm
Ignition: Marelli electronic
Starting: Electric
Max Power: 113.3 kW / 152 hp @ 9500 rpm
Max Torque: 128 Nm / 94 lb-ft @ 7500 rpm
Clutch: Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
Transmission: 6 Speed
Final Drive: Chain; Front sprocket 15; Rear sprocket 43
Straight Cut Gear Ratio: 1.84:1
Gear Ratio: 1st 38/14; 2nd 30/17; 3rd 27/20; 4th 24/22; 5th 23/24; 6th 22/25
Frame: Tubular steel Trellis frame
Front Suspension: Sachs 48 mm fully adjustable usd forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension (DSS)
Front Wheel Travel: 200 mm / 7.9 in
Rear Suspension: Fully adjustable Sachs unit. Electronic compression & rebound damping adjustment. Electronic spring pre-load adjustment with Ducati Skyhook Suspension (DSS). Aluminium double-sided swingarm
Rear Wheel Travel: 200 mm / 7.9 in
Front Brakes: 2 x 330 mm Semi-floating discs, radially mounted Brembo monoblock Evo M50 4-piston callipers, 2-pad, radial pump with cornering ABS as standard equipment
Rear Brakes: Single 265 mm disc, 2-piston floating calliper, with cornering ABS as standard equipment
Front Wheel: Tubless spoked wheel in light alloy, 3.0 x 19"
Rear Wheel: Tubeless spoked wheel in light alloy, 4.50 x 17"
Front Tyre: Pirelli Scopion Trail II 120/70 R19
Rear Tyre: Pirelli Scorpion Trail II 170/60 R17
Rake: 25°
Trail: 110 mm / 4.33 in
Wheelbase: 1594 mm / 62.8 in
Ground Clearance: 205 mm / 8.1 in
Seat Height: 870 mm / 34.3 in
Wet Weight: 261 kg / 575 lbs
Fuel Capacity: 30 Litres / 7.9 US gal / 6.6 Imp gal
