Ducati Diavel V4 RS (2026) technical specifications

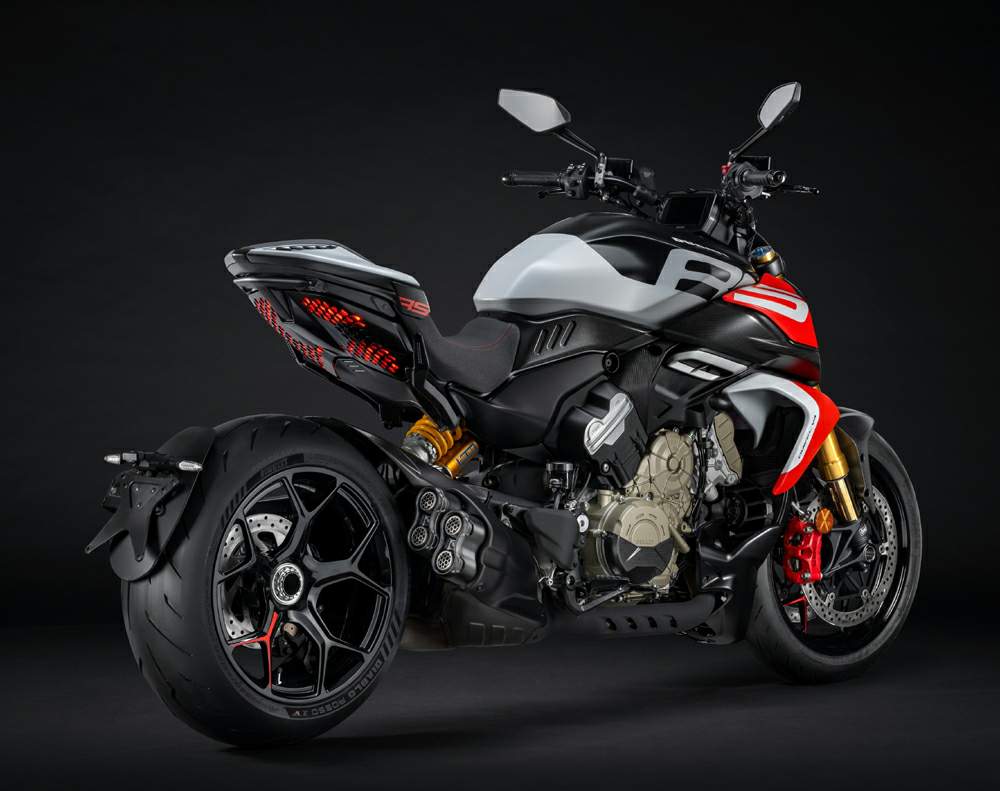

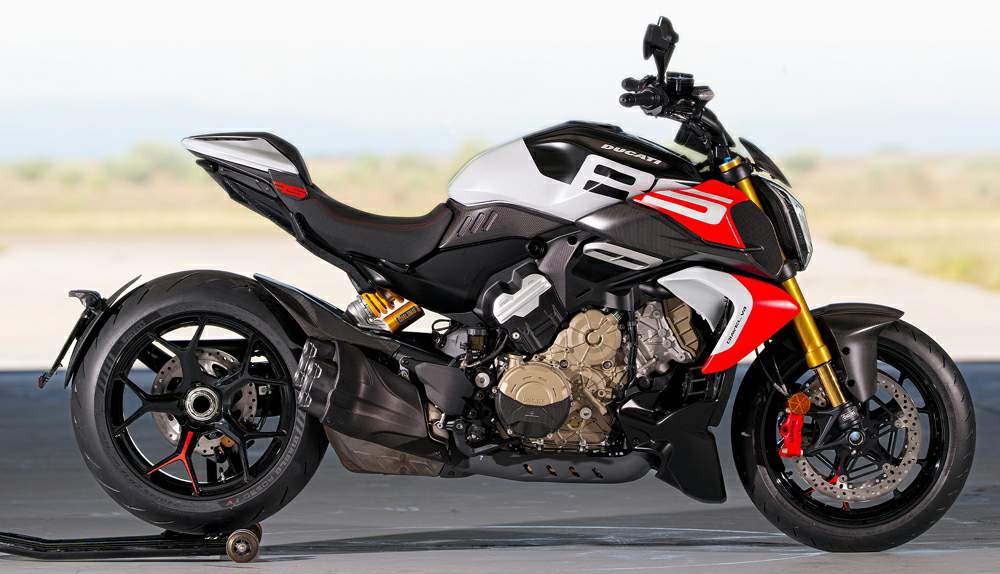

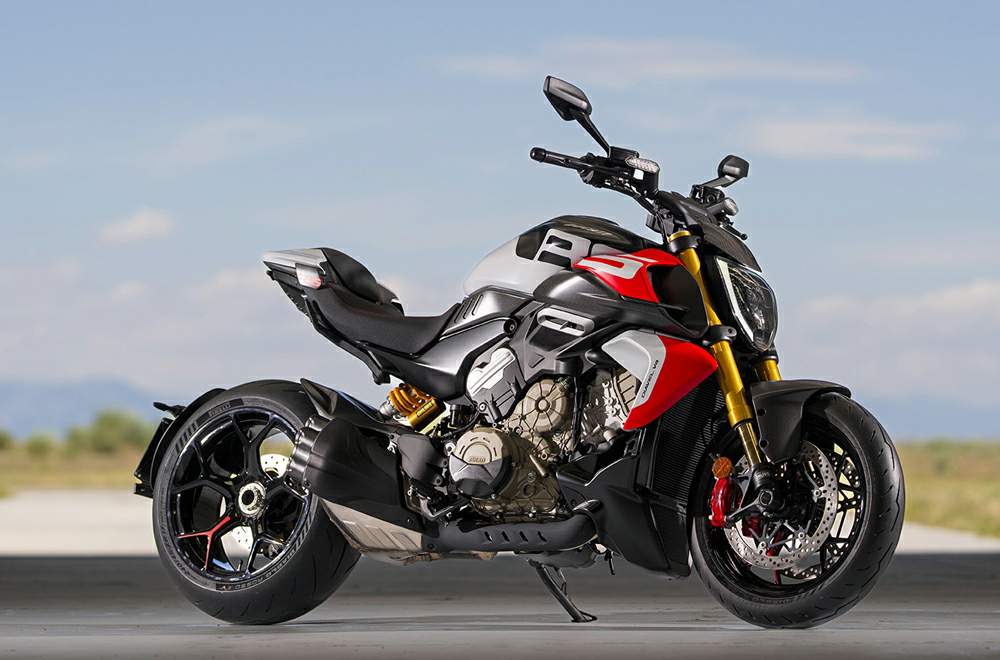

Ducati Diavel V4 RS is produced in 2026. Engine is Four stroke, 90? V4 Desmosedici stradale , counter-rotating crankshaft, 4 valves per cylinder, twin-pulse firing order, displacement 1103 cc / 67.3 cu in , produces power 182 hp / 133.8 kW @ 11750 rpm and 120 Nm / 89 lb-ft @ 9500 rpm. Ducati Diavel V4 RS has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Diavel V4 RS
Years:	2026

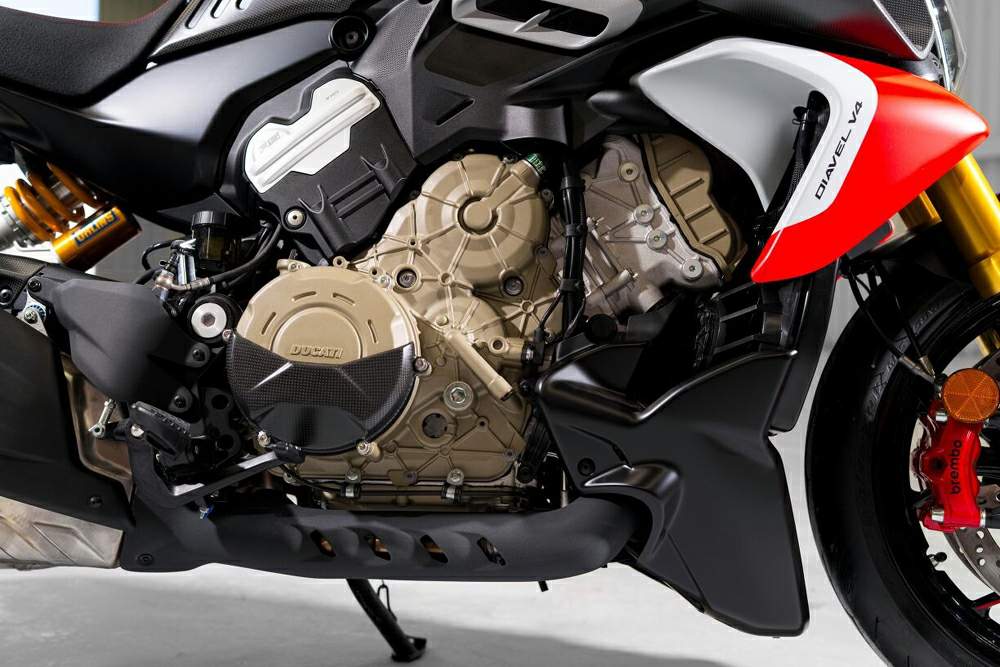

Engine:	Four stroke, 90? V4 Desmosedici stradale , counter-rotating crankshaft, 4 valves per cylinder, twin-pulse firing order
Capacity:	1103 cc / 67.3 cu in
Bore x Stroke:	81 x 53.5 mm
Compression Ratio:	14.0:1
Cooling System:	Liquid cooled
Induction:	Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire 50 mm elliptical throttle bodies
Exhaust:	Stainless steel exhaust muffler in titanium
Emission:	Euro 5+
Starting:	Electric
Max Power:	182 hp / 133.8 kW @ 11750 rpm
Max Torque:	120 Nm / 89 lb-ft @ 9500 rpm
Clutch:	Multiplate dry clutch with slipper action on over-run
Transmission:	6-speed gearbox with Ducati Quick Shift (DQS) Up & Down System 2.0
Final Drive:	Chain, front sprocket z16, rear sprocket z43
Primary Drive:	Straight cut gears, ratio 1.80:1
Gear Ratios:	1=40/13; 2=36/16; 3=36/20; 4=31/21; 5=29/23; 6=27/25
Frame:	Aluminum monocoque frame
Front Suspension:	48mm fully adjustable ?hlins USD fork
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Fully adjustable ?hlins monoshock, aluminum single-sided swingarm
Rear Wheel Travel:	145 mm / 5.7 in
Front Brakes:	2 x 330 mm semi-floating discs, radially mounted Brembo Stylema monoblock 4-piston calipers, radial master cylinder PR16/19
Rear Brakes:	Single 265 mm disc, Brembo 2-piston floating caliper
ABS:	Cornering ABS
Wheels:	Light alloy cast
Front Wheel:	3.50 x 17
Rear Wheel:	8.00 x 17
Front Tyre:	120/70 ZR17 Pirelli Diablo Rosso IV
Rear Tyre:	240/45 ZR17 Pirelli Diablo Rosso IV
Rake:	26?
Trail:	112 mm / 4.4 in
Wheelbase:	1602 mm / 63.1 in
Seat Height:	790 mm / 31.1 in
Wet Weight no fuel:	220 kg / 485 lbs
Fuel Capacity:	20 Litres / 5.3 US gal

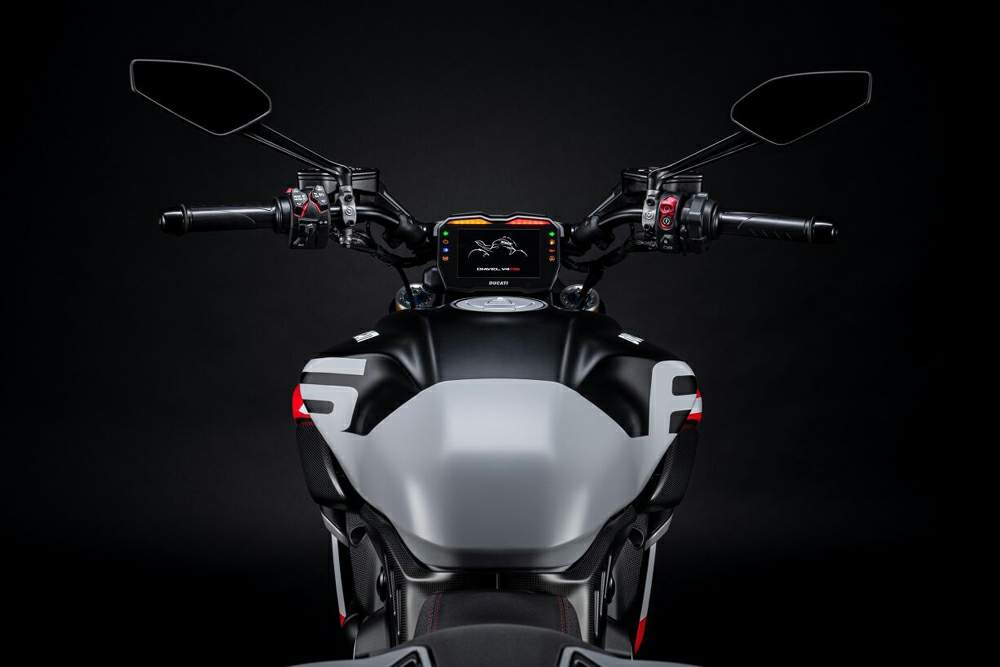

Instrumentation:	3.5 in TFT colour display and dedicated warning light display
Safety Equipment:	Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light*, Ducati Brake Light
Standard Equipment:	Ducati Quick Shift, Ducati Power Launch, Cruise control, Hands-Free, 5″ TFT colour display, Ducati Multimedia System, Backlit handlebar switches, Full-LED lighting system, Dynamic turn indicators
