Ducati Diavel V4 (2023) technical specifications

Ducati Diavel V4 technical specifications

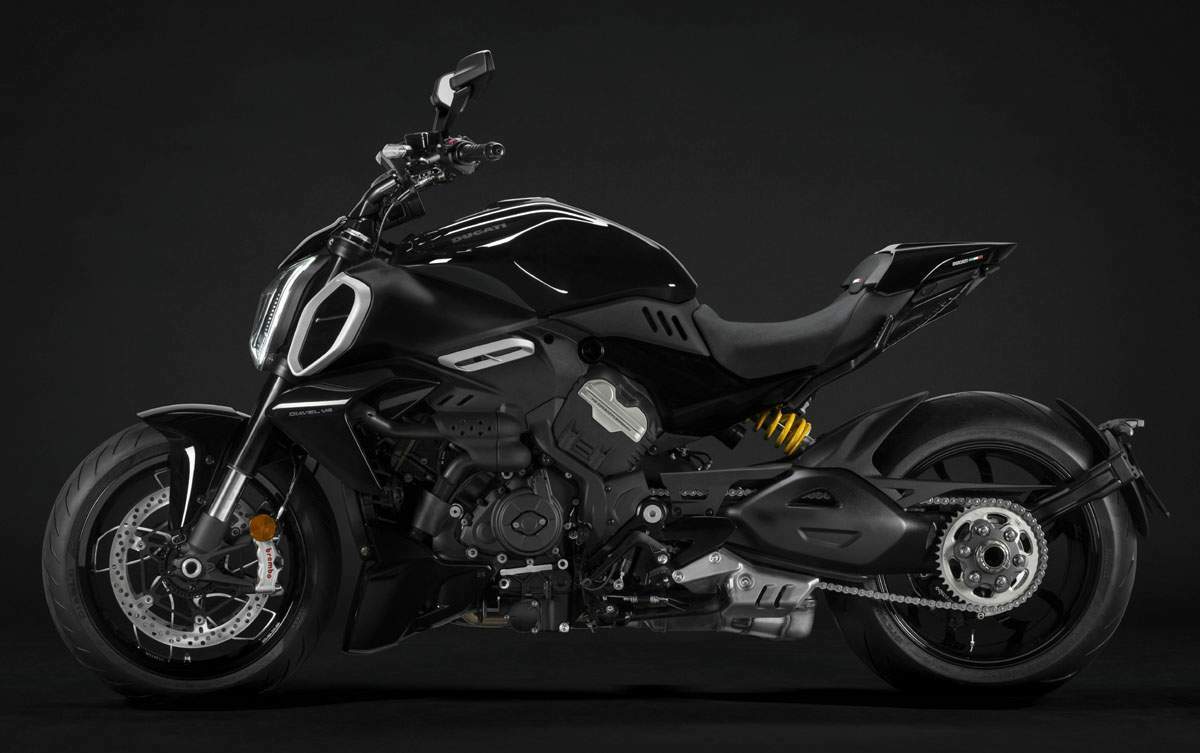

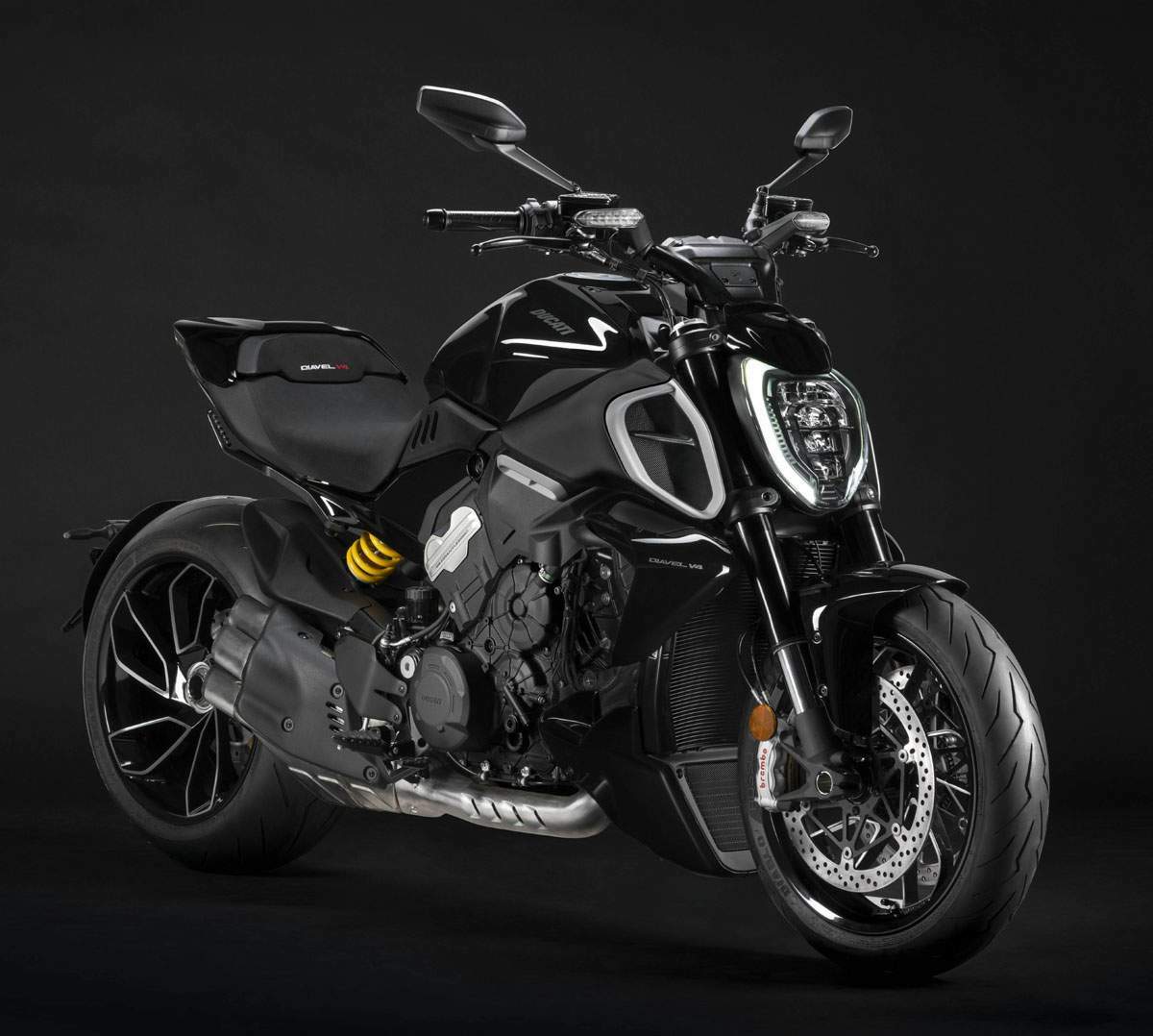

Ducati Diavel V4 is produced in 2023. Engine is Four stroke, 90° Granturismo V4, counter rotating crankshaft, 4 valves per cylinder, Twin Pulse firing order, displacement 1158 cc / 71 cu-in , produces power 168 hp / 125 kW @ 10750 rpm and 126 Nm / 93 lb-ft @ 7500 rpm. Ducati Diavel V4 weighs 211 kg / 465 lbs. Ducati Diavel V4 has 10 photos.

Technical specifications

+ Add to 'Compare list'
Model: Diavel V4
Years: 2023
Engine: Four stroke, 90° Granturismo V4, counter rotating crankshaft, 4 valves per cylinder, Twin Pulse firing order
Capacity: 1158 cc / 71 cu-in
Bore x Stroke: 83 x 53.5 mm
Compression Ratio: 14.0:1
Cooling System: Liquid cooled
Exhaust: Stainless steel exhaust muffler with 4 exit pipes, 2 catalytic converters and 4 lambda probes
Emission: Euro 5
Induction: Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system
Starting: Electric
Max Power: 168 hp / 125 kW @ 10750 rpm
Max Torque: 126 Nm / 93 lb-ft @ 7500 rpm
Clutch: Hydraulically controlled slipper and self-servo wet multiplate clutch
Transmission: 6-speed gearbox with Ducati Quick Shift (DQS) Up & Down System
Final Drive: Chain, front sprocket z16, rear sprocket z43
Primary Drive: Straight cut gears, ratio 1.80:1
Gear Ratios: 1=40/13 2=36/16 3=34/19 4=31/21 5=29/23 6=27/25
Frame: Aluminum monocoque frame
Front Suspension: 50 mm fully adjustable USD fork
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Fully adjustable monoshock, aluminum single-sided swingarm
Rear Wheel Travel: 147 mm / 5.7 in
Front Brakes: 2 x 330 mm semi-floating discs, radially mounted Brembo Stylema monoblock 4-piston calipers, radial master cylinder PR16/19
Rear Brakes: Single 265 mm disc, Brembo 2-piston floating caliper
ABS: Cornering ABS
Wheels: Light alloy cast
Front Wheel: 3.50 x 17
Rear Wheel: 8.00 x 17
Front Tyre: 120/70 ZR17 Pirelli Diablo Rosso III
Rear Tyre: 240/45 ZR17 Pirelli Diablo Rosso III
Rake: 26°
Trail: 112 mm / 4.4 in
Wheelbase: 1593 mm / 62.7 in
Seat Height: 790 mm / 31.1 in
Dry Weight: 211 kg / 465 lbs
Wet Weight: 236 kg / 520 lbs
Fuel Capacity: 20 Litres / 5.3 US gal
Instrumentation: 3.5 in TFT colour display and dedicated warning light display
