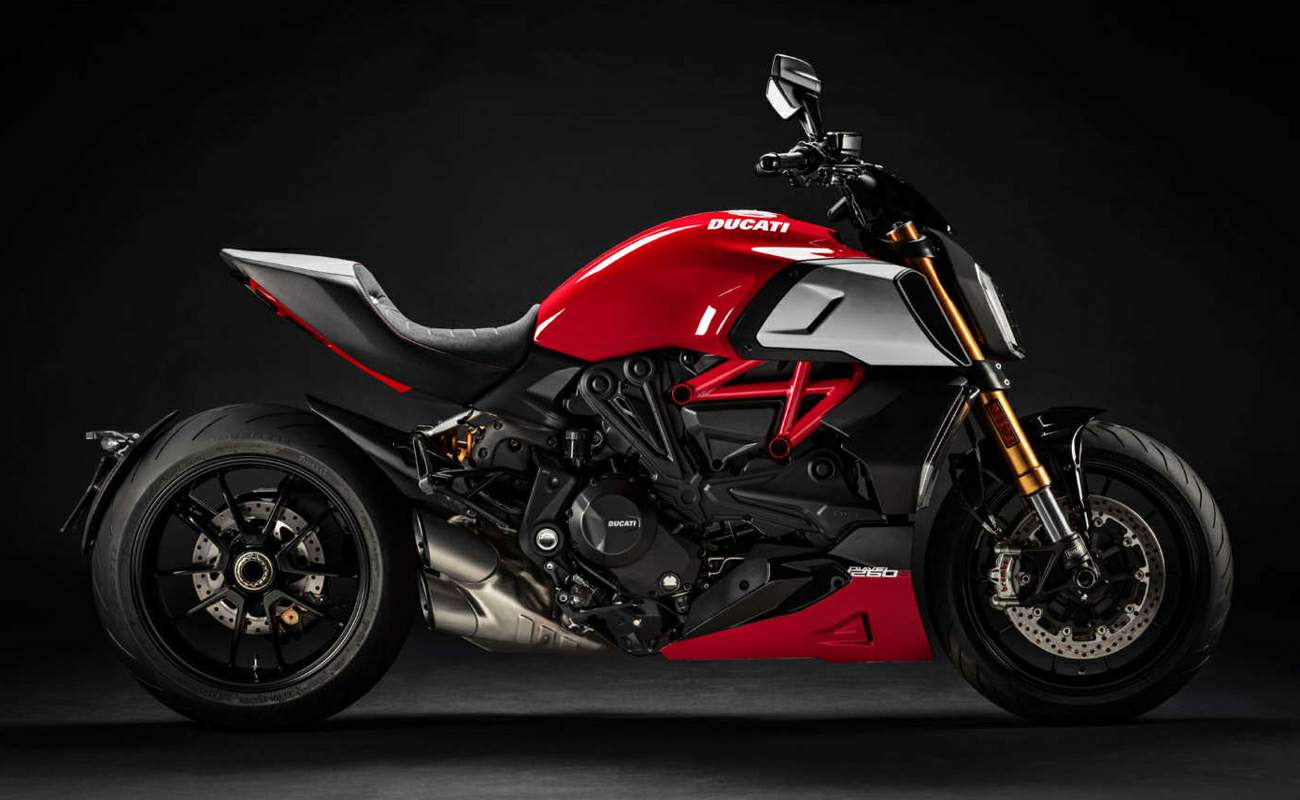

Ducati Diavel 1260 S (2021) technical specifications

Ducati Diavel 1260 S technical specifications

Ducati Diavel 1260 S is produced in 2021. Engine is Four stroke, Testastretta DVT (Desmodromic Variable Timing), 90° L-Twin, 4 Desmodromically actuated valves per cylinder, dual spark, displacement 1262 cc / 77 cu-in , produces power 157 hp / 116 kW @ 9250 rpm and 129 Nm / 95 lb-ft @ 7500 rpm. Ducati Diavel 1260 S weighs 221 kg / 487 lbs. Ducati Diavel 1260 S has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: Diavel 1260 S
Years: 2021
Engine: Four stroke, Testastretta DVT (Desmodromic Variable Timing), 90° L-Twin, 4 Desmodromically actuated valves per cylinder, dual spark
Capacity: 1262 cc / 77 cu-in
Bore x Stroke: 106 x 71.5 mm
Cooling System: Liquid cooled
Compression Ratio: 13.0:1
Exhaust: Stainless steel pipes and single muffler with twin tail pipes, catalytic converter and 2 lambda probes
Induction: Bosch electronic fuel injection system, Øeq 56 mm elliptical throttle bodies with Ride-by-Wire system
Emission: Euro5
Ignition: Electronic
Starting: Electric
Max Power: 157 hp / 116 kW @ 9250 rpm
Max Torque: 129 Nm / 95 lb-ft @ 7500 rpm
Clutch: Slipper and self-servo wet multiplate clutch with hydraulic control
Transmission: 6-Speed with Ducati Quick Shift up/down Evo (DQS)
Final Drive: Chain, Front sprocket Z15, Rear sprocket Z43
Primary Drive: Straight cut gears, Ratio 1.84:1
Gear Ratios: 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 22/25
Frame: Tubular steel trellis frame
Front Suspension: 48 mm USD Öhlins adjustable fork, TiN treatment
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Öhlins fully adjustable monoshock, Aluminium casted single-sided swingarm
Rear Wheel Travel: 130 mm / 5.1 in
Front Brakes: 2 x 320mm semi-floating discs, Radially mounted Brembo monobloc 4-piston M50 callipers, PR16/19 radial master cylinder
Rear Brakes: Single 265mm disc, 2-piston Brembo floating calliper
ABS: Bosh cornering ABS Evo
Front Wheel: Light alloy, casted and machined, 3.50 x 17
Rear Wheel: Light alloy, casted and machined, 8.00 x 17
Front Tyre: 120/70 ZR17 Pirelli Diablo Rosso III
Rear Tyre: 240/45 ZR17 Pirelli Diablo Rosso III
Rake: 27°
Trail: 120 mm / 4.7 in
Wheelbase: 1600 mm / 63.0 in
Seat Height: 780 mm / 30.7 in
Dry Weight: 221 kg / 487 lbs
Wet Weight: 247 kg / 544 lbs
Fuel Capacity: 17 Litres / 4.5 US gal
Instrumentation: 3.5 in TFT colour display and dedicated warning light display
