Ducati 175 Gran Sport (1957-62) technical specifications

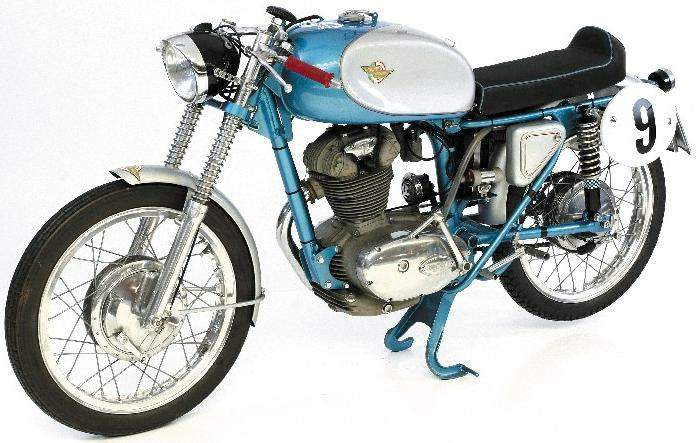

Ducati 175 Gran Sport is produced in 1957-62. Engine is Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder, displacement 175.4 cc / 10.7 cu in , produces power 11.9 kW / 16 hp @ 9000 rpm. Ducati 175 Gran Sport top speed is 155 km/h / 96 mph. Ducati 175 Gran Sport weighs 103 kg / 227 lbs. Ducati 175 Gran Sport has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 175 Gran Sport |
| Years: | 1957-62 |
| Engine: | Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder |
| Capacity: | 175.4 cc / 10.7 cu in |
| Bore x Stroke: | 62 x 57.8 mm |
| Compression Ratio: | 8.5:1 |
| Cooling System: | Air cooled |
| Induction: | Dell'Orto SS1 22.5C carburetor |
| Ignition: | Battery / coil |
| Starting: | Kick |
| Max Power: | 11.9 kW / 16 hp @ 9000 rpm |
| Clutch: | Multi wet plate, wet |
| Transmission: | 4 Speed |
| Final Drive: | Chain |
| Frame: | Single cradle tubular frame |
| Front Suspension: | Hydraulic telescopic fork |
| Rear Suspension: | Swingarm, dual shocks |
| Front Brakes: | Drum, full aluminium |
| Rear Brakes: | Drum, full aluminium |
| Front Tyre: | 2.50 -18 |
| Rear Tyre: | 2.75 -18 |
| Dry Weight: | 103 kg / 227 lbs |
| Fuel Capacity: | 17 L / 4.5 US gal / 3.7 Imp gal |
| Top Speed: | 155 km/h / 96 mph |
