Ducati 1198R Corse SpecialEdition (2011) technical specifications

Ducati 1198R Corse SpecialEdition technical specifications

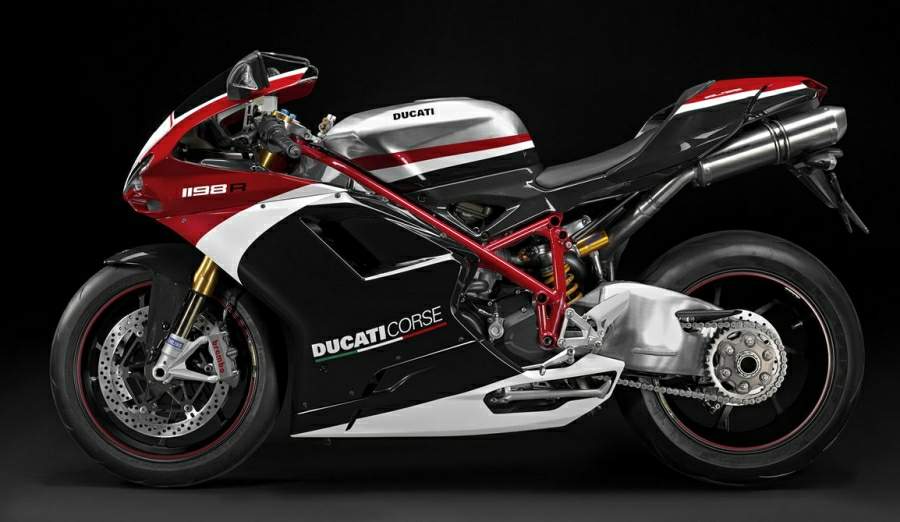

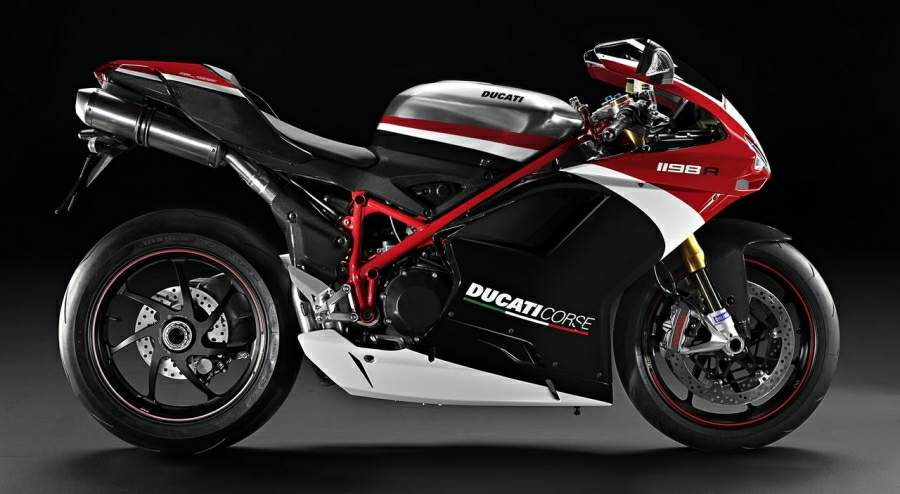

Ducati 1198R Corse SpecialEdition is produced in 2011. Engine is Four stroke,90°“L”twin cylinder, DOHC, desmodromic 4 valve percylinder, displacement 1198 cc / 73.1 cu in , produces power 132.4 kW /180hp @ 9750rpm and 134 Nm / 13.7 kgf-m/ 98.8 lb-ft @ 7750 rpm. Ducati 1198R Corse SpecialEdition weighs 169 kg / 373 lbs. Ducati 1198R Corse SpecialEdition has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: 1198R Corse SpecialEdition
Years: 2011
Engine: Four stroke,90°“L”twin cylinder, DOHC, desmodromic 4 valve percylinder
Capacity: 1198 cc / 73.1 cu in
Bore x Stroke: 106 x 67.9 mm
Compression Ratio: 12.8:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Engine Oil: Synthetic, 20W-50
Induction: Marelli electronic fuel injection,elliptical throttle bodies
Exhaust: Lightweight 2-1-2 system with catalyticconverter and 2 lambda probes, twin stainless steelmufflers
Ignition: Digital CDI
Starting: Electric
Max Power: 132.4 kW /180hp @ 9750rpm
Max Torque: 134 Nm / 13.7 kgf-m/ 98.8 lb-ft @ 7750 rpm
Clutch: Dry multiplate with hydrauliccontrol slipper clutch
Transmission : 6 Speed
Primary drive: Straight cut gears, ratio1.84:1
Final drive: Chain, front sprocket 15; rearsprocket 38
Gear Ratio: 1st 37/15 / 2nd 30/17 / 3rd 28/20 / 4th 26/22 /5th 24/23 / 6th 22/25
Frame: Tubular steel Trellis frame in ALS450
Front Suspension: Öhlins43mm with TiN fully adjustable upside-downfork
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Progressive linkagewith fully adjustable Öhlins TTXR monoshock with top-outspring. Aluminium single-sided swingarm
Rear Wheel travel: 127 mm / 5.0 in
Front Brakes: 2 x 330 mm Semi-floating discs,radially mounted Brembo Monobloc calipers, 4-piston,2-pad.
Rear Brakes: Single 245 mm disc 2 pistoncaliper
Front Wheel: 7-Spoke light alloy, 3.50 x 17
Front Tyre: 120/70 ZR17
Rear Wheel: 7-Spoke light alloy, 6.00 x 17
Rear Tyre: 190/55 ZR17
Dimensions: Length 2100mm / 82.6in Height 1100mm / 43.3in
Wheelbase: 1430mm / 56.3 in
Rake: 24°30' / 24.5°
Steering angle: 28°30' / 28.5°
Seat Height: 820mm / 32.2in
Dry Weight: 169 kg / 373 lbs
Fuel Capacity : 17.8 Litres / 4.7 US gal / 3.9Imp gal
Instruments: DigitalMotoGP derived unit with displays for: Speedometer, rev counter,lap times, time, air temp, coolant temp, battery voltage, A & Btrips, fuel reserve trip, DTC level selected (if activated)scheduled maintenance. Warning lights for: Neutral, turn signals,high-beam, rev-limit, DTC intervention, oil pressure, fuel reserve.Plus: Immobilizer system and management of DTC and DDA.
