Ducati 1000 Sport Clssic Monoposto (2006) technical specifications

Ducati 1000 Sport Clssic Monoposto technical specifications

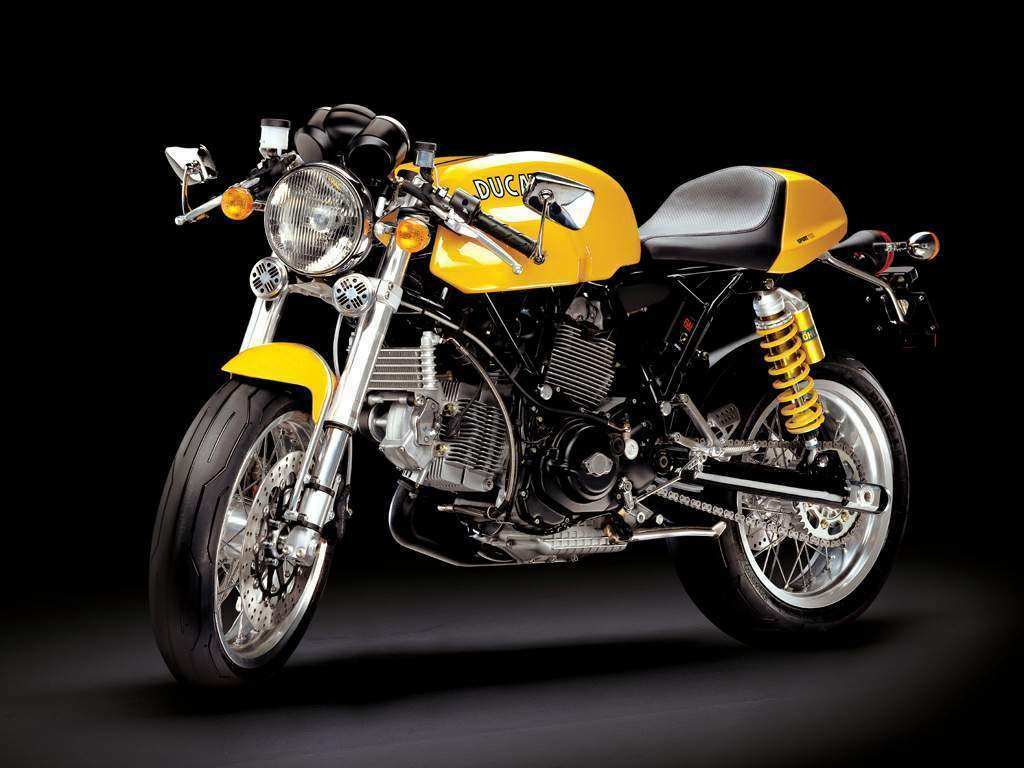

Ducati 1000 Sport Clssic Monoposto is produced in 2006. Engine is Four stroke, 90° “L” twin cylinder, desmodromic 2 valves per cylinder, operated by four rocker arms (two opening rockers and 2 closing rockers) SOHC. Driven by the crankshaft through spur gears, timing belt pulleys and toothed timing belts, displacement 992 cc / 60.5 cu in , produces power 90.7 hp / 66.3 kW @ 8,000 rpm and 91.2 Nm / 9.3 kgf-m / 67.3 lb-ft @ 6,000 rpm. Ducati 1000 Sport Clssic Monoposto weighs 181 kg / 399.0 lbs. Ducati 1000 Sport Clssic Monoposto has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: 1000 Sport Clssic Monoposto
Years: 2006
Engine: Four stroke, 90° “L” twin cylinder, desmodromic 2 valves per cylinder, operated by four rocker arms (two opening rockers and 2 closing rockers) SOHC. Driven by the crankshaft through spur gears, timing belt pulleys and toothed timing belts
Capacity: 992 cc / 60.5 cu in
Bore x Stroke: 94 x 71.5 mm
Cooling System: Air cooled
Compression Ratio: 10.0:1
Exhaust: Black exhaust system with dual mufflers
Induction: Marelli electronic fuel injection, 45 mm throttle bodies
Ignition: Marelli electronic
Starting: Electric
Max Power: 90.7 hp / 66.3 kW @ 8,000 rpm
Max Torque: 91.2 Nm / 9.3 kgf-m / 67.3 lb-ft @ 6,000 rpm
Clutch: Dry multiplate with hydraulic control
Transmission: 6 Speed
Final Drive: Chain; front sprocket 15; rear sprocket 39
Gear Ratio: 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Primary Drive: Straight cut gears; ratio 1.84:1
Frame: Tubular steel trelis
Front Suspension: 43mm Upside-down fully adjustable forks
Front Wheel Travel: 120 mm / 4.7
Rear Suspension: Sachs fully adjustable monoshock on the left side
Rear Wheel Travel: 133 mm / 5.1 in
Front Brakes: 2 x 320mm Discs, 4 piston calipers
Rear Brakes: Single 245 mm disc, 2 piston caliper
Front Wheel: Spoked wheel with black alluminium rim, 3.50 x 17
Rear Wheel: Spoked wheel with black alluminium rim, 5.50 x 17
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Rake: 24°
Steering Angle: 30°
Dimensions: Height 1036 mm / 40.8 in Length 2179 mm / 85.8 in
Wheelbase: 1425 mm / 56.1 in
Seat Height: 825 mm / 32.5 in
Dry Weight: 181 kg / 399.0 lbs
Fuel Capacity: 15 Litres / 4.0 US gal / 3.3 Imp gal
Reserve: 3.5 Litres / 0.9 US gal
