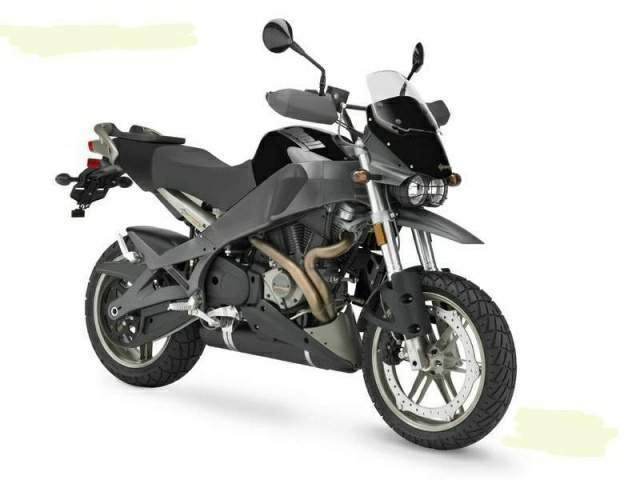

Buell / EBR Buell XB12X Ulysses Adventure (2006-07) technical specifications

Buell / EBR Buell XB12X Ulysses Adventure technical specifications

Buell / EBR Buell XB12X Ulysses Adventure is produced in 2006-07. Engine is 45° V-Twin, four stroke, pushrod actuated overhead valve, hydraulic self-adjusting lifters, 2 valve per cylinder., displacement 1203 cc / 73 cu in , produces power 86.9 kW / 103 hp @ 6800 rpm and 114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm. Buell / EBR Buell XB12X Ulysses Adventure top speed is 202 km/h / 126 mph. Buell / EBR Buell XB12X Ulysses Adventure weighs 193 kg / 425 lbs. Buell / EBR Buell XB12X Ulysses Adventure has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Buell XB12X Ulysses Adventure
Years: 2006-07
Engine: 45° V-Twin, four stroke, pushrod actuated overhead valve, hydraulic self-adjusting lifters, 2 valve per cylinder.
Capacity: 1203 cc / 73 cu in
Bore x Stroke: 88.9 x 96.8 mm
Compression Ratio: 10.0:1
Cooling System: Air cooled
Lubrication: Dry sump
Exhaust: Buell InterActive Exhaust
Induction: Ø49 mm downdraft DDFI II fuel injection
Starting: Electric
Battery: 12V, 12Ah
Max Power: 86.9 kW / 103 hp @ 6800 rpm
Max Torque: 114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm
Clutch: Wet, multi-plate
Transmission: 5 Speed
Final Drive: Belt
Gear Ratios: 1st 2.648 / 2nd 1.892 / 3rd 1.407 / 4th 1.166 / 5th 1.000
Frame: Aluminium frame with Uniplanar™ Powertrain vibration isolation system, fuel in frame
Rake: 22°
Trail: 122 mm / 4.8"
Front Suspension: Showa Ø43 mm inverted forks compression damping, rebound damping and spring preload adjustable
Front Wheel Travel: 165 mm / 6.5"
Rear Suspension: Showa coil-over monoshock, remote underseat reservoir and adjustable compression damping, rebound damping and spring preload
Rear Wheel Travel: 163 mm / 6.4"
Front Brakes: ZTL type brake, 6 piston, fixed caliper, Ø375 mm single-sided, inside out, stainless steel, floating rotor
Rear Brakes: Single Ø240 mm disc, 1 piston floating caliper
Wheels: 6-Spoke, ZTL cast aluminium
Front Wheel: 3.50 x 17"
Rear Wheel: 5.50 x 17"
Front Tyre: 120/70 R17 Dunlop D616F
Rear Tyre: 180/55 R17 Dunlop D616
Dimensions: Length: 2159 mm / 85.0" Width: 755 mm / 29.7" Height: 1331 mm / 52.4"
Wheelbase: 1372 mm / 54.0"
Ground Clearance: 171 mm / 6.75"
Seat Height: 841 mm / 33.1"
Dry Weight: 193 kg / 425 lbs
GVWR: 430 kg / 950 lbs
Fuel Capacity: 16.7 L / 4.4 US gal
Fuel Reserve: 3.1 L / 0.82 US gal
Oil Capacity: 2.37 L / 2.50 qts
Standing ¼ Mile: 12.8 sec
Top Speed: 202 km/h / 126 mph
