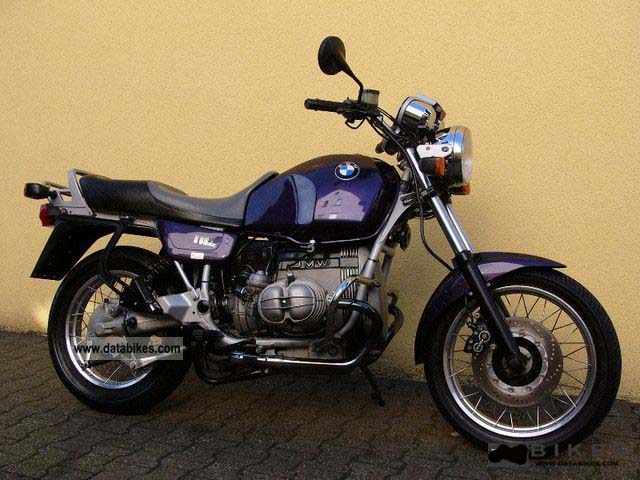

BMW R 80R (1991-94) technical specifications
BMW R 80R is produced in 1991-94. Engine is Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder., displacement 797.5 cc / 48.7 cu-in , produces power 37 kW / 50 hp @ 6500 rpm and 61 Nm / 6.2 kgf-m / 44 ft lb @ 3750 rpm. BMW R 80R wet weight is 217 Kg / 477 lbs. BMW R 80R has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | R 80R |
| Years: | 1991-94 |
| Engine: | Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder. |
| Capacity: | 797.5 cc / 48.7 cu-in |
| Bore x Stroke: | 84.8 x 70.6 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.2:1 |
| Induction: | 2 x Bing constant depression carburetors |
| Ignition: | Battery ignition |
| Alternator: | Bosch 12 V/280 W |
| Spark Plug: | Bosch W 7 DC / Beru 14-7 DU |
| Starting: | Electric |
| Max Power: | 37 kW / 50 hp @ 6500 rpm |
| Max Torque: | 61 Nm / 6.2 kgf-m / 44 ft lb @ 3750 rpm |
| Clutch: | Dry single plate, with diaphragm spring |
| Transmission: | 5 Speed |
| Final Drive: | Shaft |
| Gear Ratio: | 1st 4.4 2nd 2.86 3rd 2.07 4th 1.67 5th 1.50 : 1 |
| Rear Wheel Ratio: | 1:3.20 or 1:3.36 |
| Frame: | Double loop tubular frame with bolt on rear section |
| Front Suspension: | Telescopic hydraulic forks. |
| Front Wheel Travel: | 135 mm / 5.3 in |
| Rear Suspension: | BMW Paralever swinging arm |
| Rear Wheel Travel: | 135 mm / 5.3 in |
| Front Brakes: | Single 285mm disc, 1 piston caliper |
| Rear Brakes: | 200mm Drum |
| Front Wheel: | MTH 2.50 x 18 E |
| Rear Wheel: | MTH 2.50 x 18 E |
| Front Tyre: | 110/80 V18 |
| Rear Tyre: | 140/80 V17 |
| Dimensions: | Length 2210 mm / 87.0 in Width 1000 mm / 39.3 in Height 1190 mm / 46.8 in |
| Wheelbase: | 1495 mm / 58.85 in |
| Ground Clearance: | 140 mm / 5.51 in |
| Seat Height: | 800 mm / 31.5 in |
| Wet Weight: | 217 Kg / 477 lbs |
| Fuel Capacity: | 24 liters / 6.27 gal |
