BMW R 1250R (2023) technical specifications

BMW R 1250R technical specifications

BMW R 1250R is produced in 2023. Engine is Four stroke, two cylinder horizontally opposed Boxer, with two overhead, spur gear driven camshafts , a counterbalance shaft and variable intake camshaft control system BMW ShiftCam, 4 valves per cylinder, Intake 40mm, outlet 34 mm, displacement 1254 cc / 76.5 cu-in , produces power 136 hp / 100 kW @ 7750 rpm and 143 Nm / 105.4 lb-ft @ 6250 rpm. BMW R 1250R wet weight is 239 kg / 527 lbs. BMW R 1250R has 14 photos.

Technical specifications

+ Add to 'Compare list'
Model: R 1250R
Years: 2023
Engine: Four stroke, two cylinder horizontally opposed Boxer, with two overhead, spur gear driven camshafts , a counterbalance shaft and variable intake camshaft control system BMW ShiftCam, 4 valves per cylinder, Intake 40mm, outlet 34 mm
Capacity: 1254 cc / 76.5 cu-in
Bore x Stroke: 102.5 x 76 mm
Compression Ratio: 12.5:1
Cooling System: Liquid / Air cooled
Emission: Closed-loop three-way catalytic converter, compliant with Euro 5 emission standard
Induction: Electronic intake pipe fuel injection, 52mm throttle valve
Fuel: Super petrol unleaded, octane number 95 (ROZ), adaptation through engine control (91 to 98 ROZ)
Engine Control: Digital engine control: BMS-O with e-gas
Battery: 12 V / 11.8 Ah, maintenance-free
Starting: Electric
Max Power: 136 hp / 100 kW @ 7750 rpm
Max Torque: 143 Nm / 105.4 lb-ft @ 6250 rpm
Clutch: Wet clutch with anti-hopping function, hydraulically activated
Transmission: Constant mesh 6-speed gearbox with helical gearing system
Final Drive: Shaft
Frame: Two-section frame concept consisting of main frame with bolt-on rear frame, load-bearing engine
Front Suspension: Telescopic Upside-Down fork, stanchion diameter 45 mm
Front Wheel Travel: 140 mm / 5.5 in
Rear Suspension: Cast aluminum swingarm with BMW Paralever WAD travel-dependent spring/shock, continuously adjustable spring preload by means of hand knob, adjustable rebound stages by hand knob, Optional Dynamic ESA Next Generation
Rear Wheel Travel: 140 mm / 5.5 in
Front Brakes: 2x 276mm floating discs, 4-piston radial brake calipers
Rear Brakes: Single 276mm disc, 2-piston floating caliper
ABS System: BMW Motorrad Integral ABS (part integral), disengageable
Wheels: Cast aluminium wheels
Front Wheel: 3.50 x 17 in
Rear Wheel: 5.50 x 17 in
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Rake: 27.7°
Trial: 125.6 mm / 4.9 in
Dimensions: Length 2165 mm / 85.2 in Width 880 mm / 34.6 in Height 1300 mm / 51.1 in
Wheelbase: 1515 mm / 59.6 in

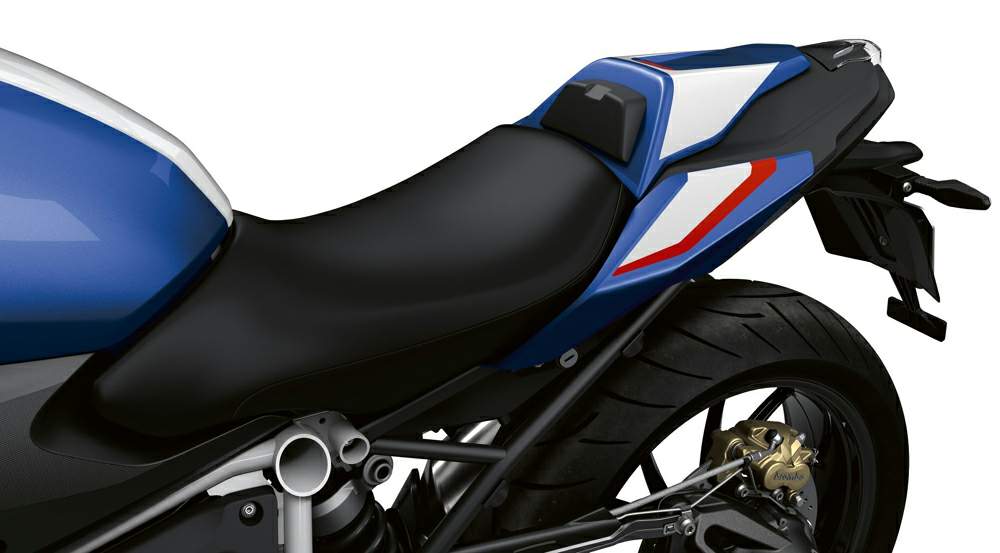

Seat Height: 820 mm / 32.3 in OE low seat: 760 mm / 29.9 in OE sport seat: 840 mm / 33.1 in
Wet Weight: 239 kg / 527 lbs
Fuel Capacity: 18 Litres / 4.8 US gal
