BMW M 1000XR (2024) technical specifications

BMW M 1000XR is produced in 2024. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 999 cc / 60.9 cu-in , produces power 149.9 kW / 201 hp @ 12750 rpm and 112 Nm / 83 lb-ft @ 11100 rpm. BMW M 1000XR wet weight is 223 kg / 492 lbs. BMW M 1000XR has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	M 1000XR
Years:	2024
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity:	999 cc / 60.9 cu-in
Bore x Stroke:	80 x 49.7 mm
Cooling System:	Liquid/oil cooled
Compression Ratio:	13/3:1
Lubrication:	Wet sump
Mixture Control:	Electronic intake pipe injection / digital engine management system: BMS-O with throttle-by-wire
Engine Management:	Electronic intake pipe injection
Emission Control:	Regulated three-way catalytic converter - EURO5
Starting:	Electric
Max Power:	149.9 kW / 201 hp @ 12750 rpm
Max Torque:	112 Nm / 83 lb-ft @ 11100 rpm
Clutch:	Multiplate clutch in oil bath, slipper clutch, self-reinforcing
Transmission:	Constant-mesh 6-speed gearbox integrated in the transmission housing
Final Drive:	Endless X-ring chain, jerk damping in the rear hub
Primary Ratio:	1.652
Gear Ratio:	1st 2.647 2nd 2.091 3rd 1.727 4th. 1.476 5th 1.304 6th. 1.167
Transmission Ratio:	2.647
Frame:	Bridge-type frame, cast aluminum, load-bearing engine
Front Suspension:	45mm Upside-down telescopic fork electronic self-adjusting rebound/compression damping (Dynamic ESA)
Front Wheel Travel:	137 mm / 5.4 in
Rear Suspension:	Aluminium double-sided swing-arm, central spring strut, electronic preload adjuster, electronic self-adjusting rebound/compression damping (Dynamic ESA)
Rear Wheel Travel:	137 mm / 5.4 in

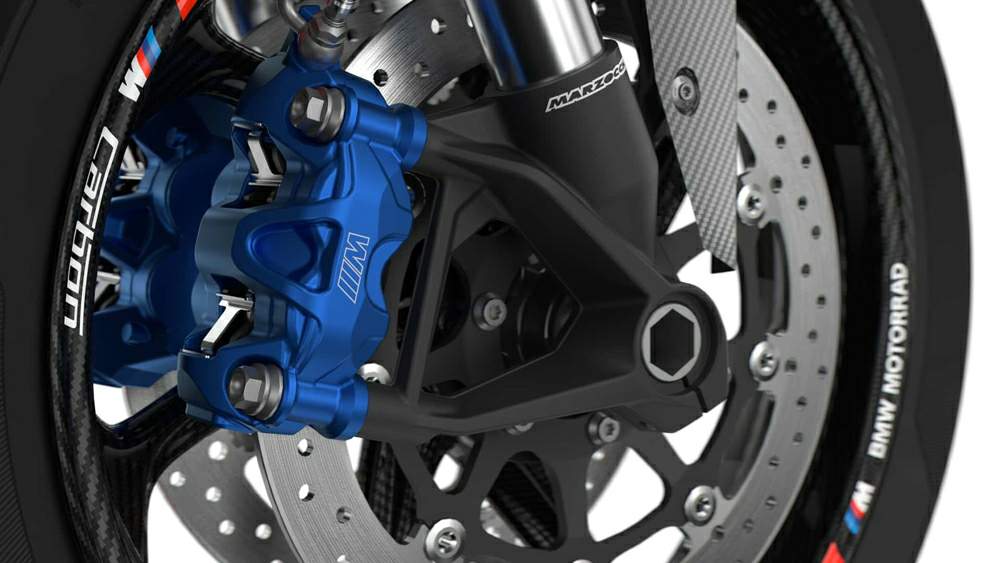

Front Brakes:	2x 320mm floating discs, radial four-piston fixed calipers
Rear Brakes:	Single 265mm disc brake, twin-piston floating caliper
ABS:	BMW Motorrad Race ABS, partially integral
Traction Control:	BMW Motorrad DTC
Wheels:	Cast aluminum wheels
Front Rim:	3.50 x 17
Rear Rim:	6.00 x 17
Front Tyre:	120/70 ZR 17
Rear Tyre:	190/55 ZR 17
Castor:	116 mm / 4.6 in
Steering Head Angle:	64.9?
Dimensions:	Length 2169 mm / 85.4 in Width 851 mm / 33.5 in Height 1382 mm / 54.4 in
Wheelbase:	1547 mm / 60.9 in
Seat Height:	848 mm / 33.4 in suspension
Wet Weight:	223 kg / 492 lbs
Fuel Capacity:	20 Litres / 5.2 US gal
