BMW K 1300 R (2013) technical specifications

BMW K 1300 R technical specifications

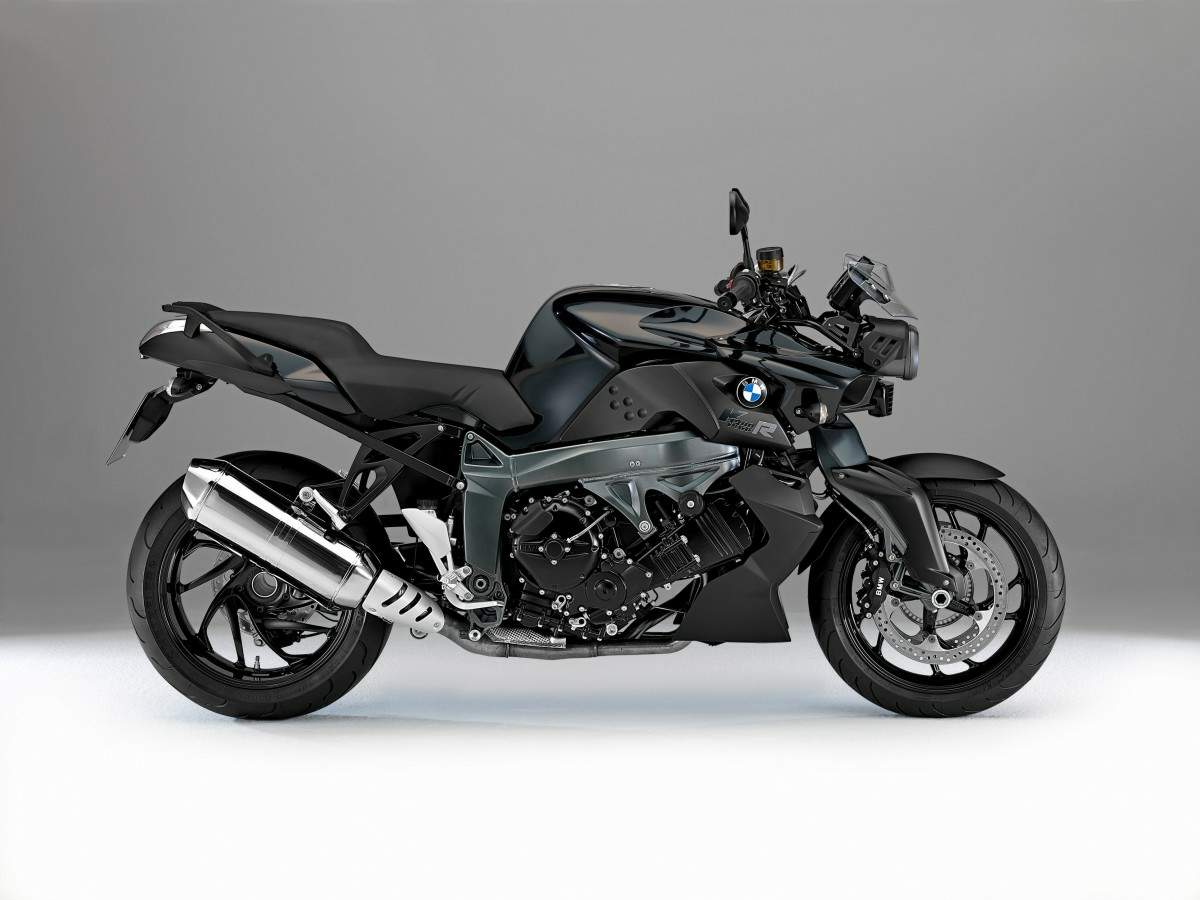

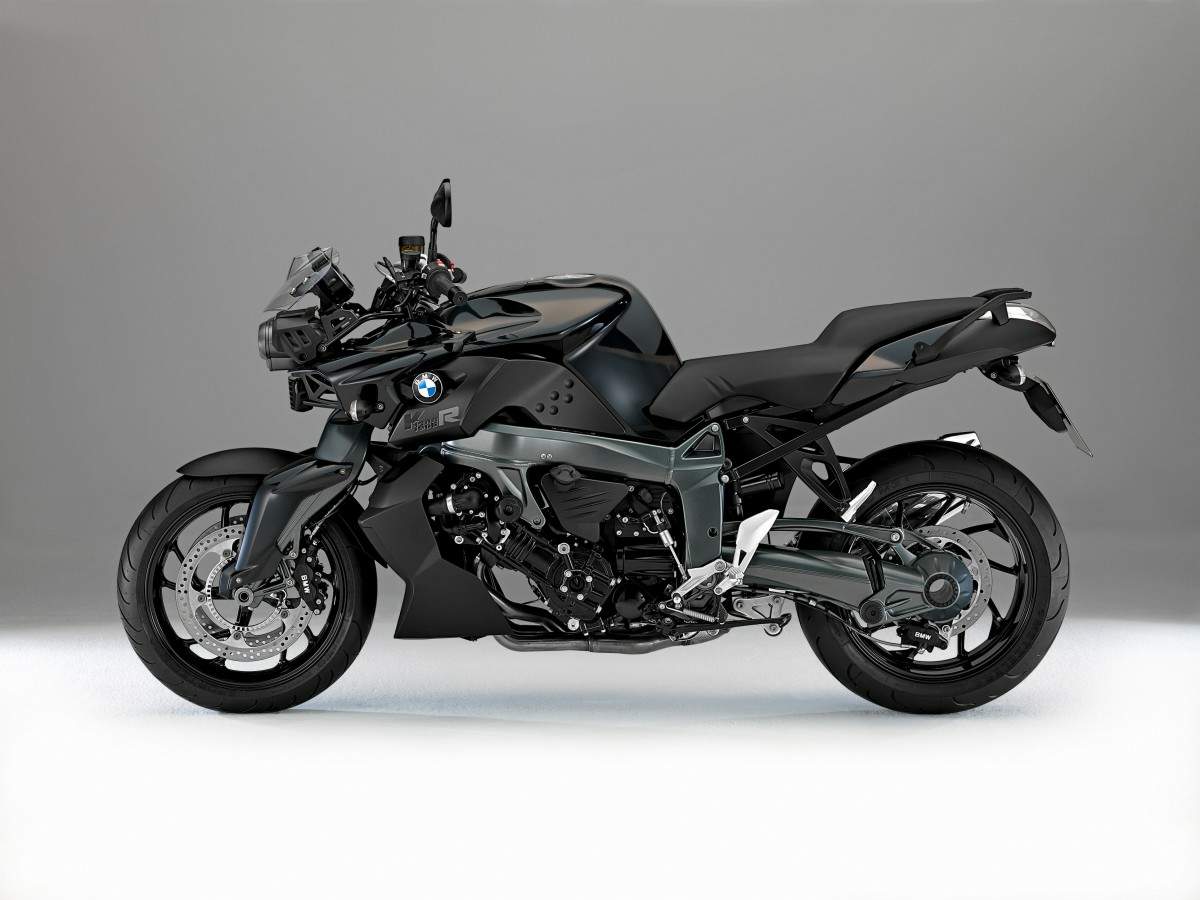

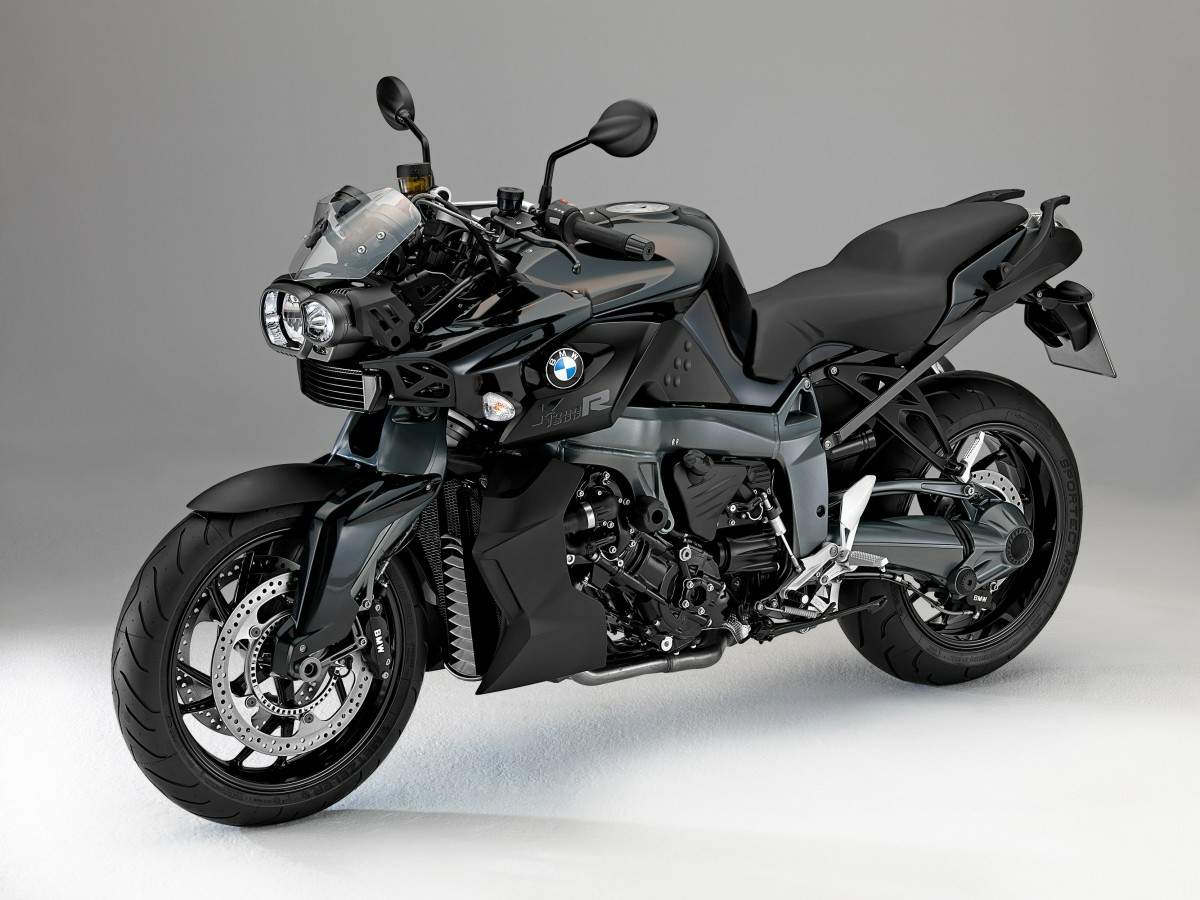

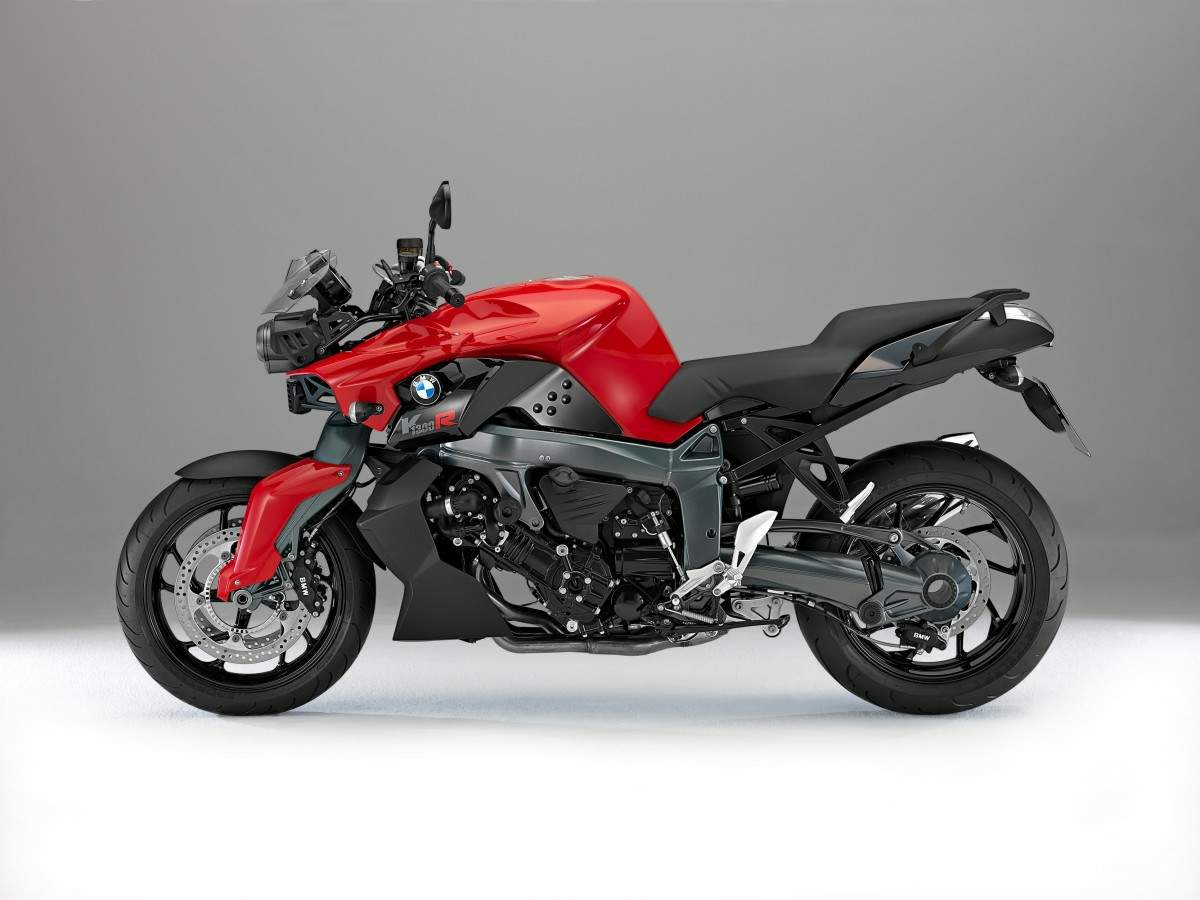

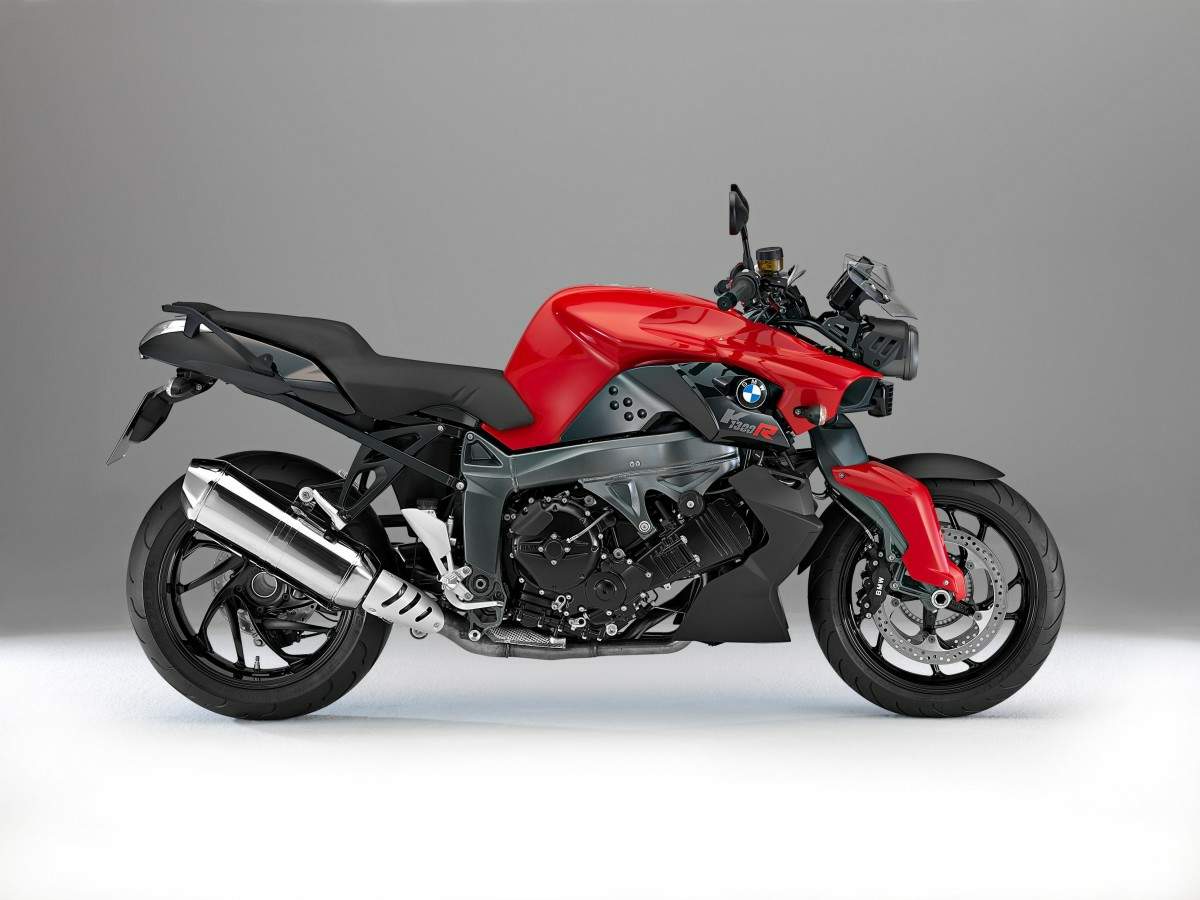

BMW K 1300 R is produced in 2013. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 1298 cc / 79.2 cu in. , produces power 127 kW / 173 hp @ 9250 rpm and 140 Nm / 14.3 kgf-m / 103 lb-ft @ 8250 rpm. BMW K 1300 R top speed is 265.8 km/h / 165.2 mph. BMW K 1300 R weighs 217 kg / 478 lbs. BMW K 1300 R has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: K 1300 R
Years: 2013
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 1298 cc / 79.2 cu in.
Bore x Stroke: 80 x 64.3 mm / 3.15 x 2.53"
Compression Ratio: 13.0:1
Cooling System: Liquid cooled
Induction: Electronic fuel injection, Digital Motor Electronics with integrated knock control (BMS-K)
Starting: Electric
Exhaust management: Fully controlled three-way catalyst
Lubrication: Wet sump
Alternator: Three-phase alternator, 580W
Battery: 12V / 14AH, maintenance free
Clutch: Multiple-plate clutch in oil bath, hydraulically operated
Max Power: 127 kW / 173 hp @ 9250 rpm
Max Torque: 140 Nm / 14.3 kgf-m / 103 lb-ft @ 8250 rpm
Transmission: 6 Speed
Final Drive: Shaft
Gear Ratio: 1st 2.398 / 2nd 1.871 / 3rd 1.525 / 4th 1.296 / 5th 1.143 / 6th 1.015:1
Frame: Bridge frame, aluminium, load-bearing engine
Steering Head Angle: 60.4º
Trail: 104.4 mm / 4.1"
Front Suspension: BMW Motorrad Duolever; central spring strut, Paralever; central spring strut with lever system
Front Wheel Travel: 115 mm / 4.5 in.
Rear Suspension: Cast aluminium single swing arm with BMW Motorrad, spring pre-tension with infinite hydraulic adjustment
Rear Wheel Travel: 135 mm / 5.3"
Front Brakes: 2 x ∅320mm discs, 4 piston calipers
Rear Brakes: Single ∅265mm disc, 2 piston caliper
Wheels: Cast aluminium
Front Rim: 3.50 x 17"
Rear Rim: 5.50 x 17"
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Dimensions: Length: 2228 mm / 87.7" Width (incl. morrors): 856 mm / 33.7" Height (excl. mirrors): 1095 mm / 43.1"
Wheelbase: 1585 mm / 62.4"
Seat Height: 820 mm/ 32.3 in. (low seat 790 mm / 31.1 in)
Dry Weight: 217 kg / 478 lbs
Wet Weight: 243 kg / 536 lbs
Fuel Capacity: 19 L / 5.0 US gal
Consumption Average: 6.2 L/100 km 16.1 km/l / 37.9 US mpg
Standing 0 - 100 km/h: 2.9 sec
Standing 0 - 150 km/h: 4.9 sec
Standing 0 - 200 km/h: 7.9 sec
Standing ¼ Mile: 10.7 sec
Top Speed: 265.8 km/h / 165.2 mph
