Beta RR 525 Enduro (2007-08) technical specifications

Beta RR 525 Enduro technical specifications

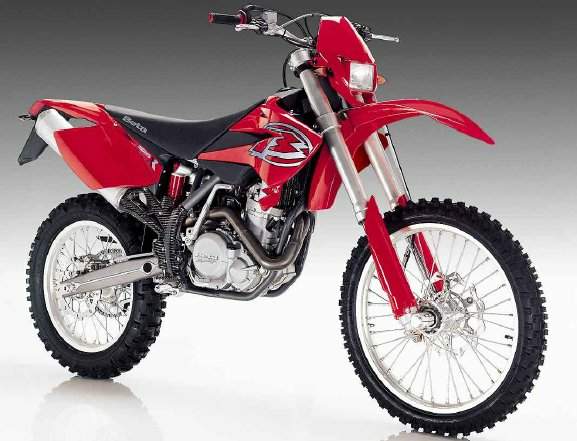

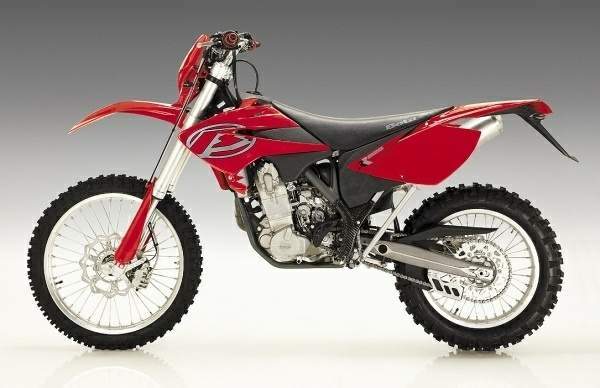

Beta RR 525 Enduro is produced in 2007-08. Engine is Four stroke, single cylinder, 4 valve, displacement 510 cc / 31.1 cu in Beta RR 525 Enduro weighs 115.5 kg / 255 lbs. Beta RR 525 Enduro has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: RR 525 Enduro
Years: 2007-08
Engine: Four stroke, single cylinder, 4 valve
Capacity: 510 cc / 31.1 cu in
Bore x Stroke: 95 x 72 mm
Compression Ratio: 11.0:1
Cooling System: Liquid cooled
Lubrication: Forced, 2 oil pumps
Engine Oil: 15W-40
Oil Capacity: 1.3 L / 0.34 US gal
Induction: Keihin FCR-MX 39
Ignition: DC-CDI without trembler with variable ignition timing, Kokusan type
Spark Plug: NGK DCPR 8 E
Starting: Electric and kick
Clutch: Wet, multi-disc
Transmission: 6 Speed
Final Drive: Chain
Gear Ratios: 1st 14:34 / 2nd 17:31 / 3rd 19:28 / 4th 22:26 / 5th 24:23 / 6th 26:21
Primary Ratio: 33:76
Frame: Molybdenum steel with double cradle split above the exhaust port
Rake: 26.5°
Trail: 108.5 mm / 4.3 in
Front Suspension: Hydraulic USD fork, Ø45 mm
Front Wheel Travel: 290 mm / 11.4 in
Rear Suspension: Monoshock with progressive compound lever, 300mm wheel travel
Rear Wheel Travel: 300 mm / 11.8 in
Front Brakes: Single Ø255 mm floating disc, 2 piston floating caliper
Rear Brakes: Single Ø240 mm disc, 1 piston floating caliper
Front Wheel: 1.6 x 21
Rear Wheel: 2.15 x 18
Front Tyre: 90/90 - 21
Rear Tyre: 140/80 -18
Dimensions: Length: 2270 mm / 89.4 in Width: 813 mm / 32.0 in Height: 1255 mm / 49.4 in
Wheelbase: 1500 mm / 59.1 in
Ground Clearance: 320 mm / 12.6 in
Seat Height: 940 mm / 37 in
Footpeg Height: 405 mm / 15.9 in
Dry Weight: 115.5 kg / 255 lbs
Fuel Capacity: 8.5 L / 2.2 US gal
Fuel Reserve: 1 L / 0.3 US gal
