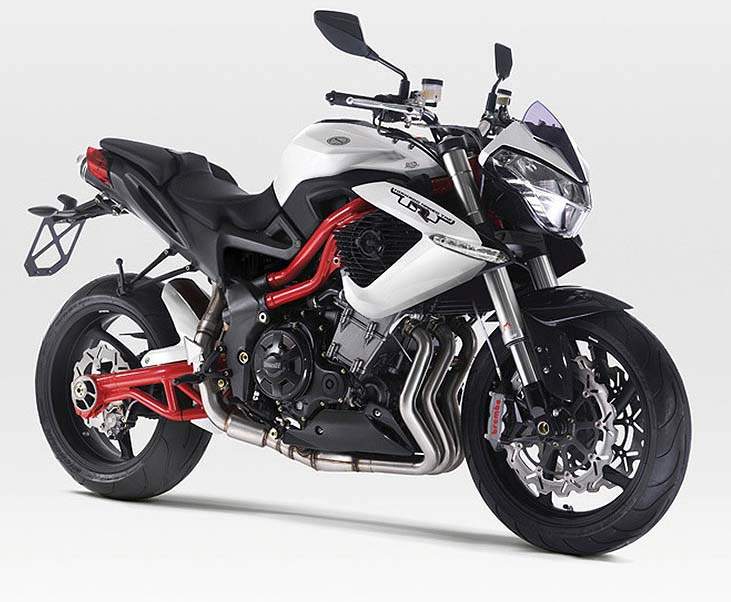

Benelli TNT R160 (2013) technical specifications

Benelli TNT R160 is produced in 2013. Engine is Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder, displacement 1130 cc / 69 cu in , produces power 116 kW /157,8 hp @ 10200 rpm and 120 Nm / 12.2 kgm / 88.5 lb-ft @ 8400 rpm. Benelli TNT R160 weighs 205 kg / 452 lbs. Benelli TNT R160 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	TNT R160
Years:	2013
Engine:	Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Capacity:	1130 cc / 69 cu in
Bore x Stroke:	88 x 62 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.5:1
Lubrication:	Wet sump
Induction:	Electronic injection with 1 injector per cylinder
Exhaust:	With catalytic converter and oxygen sensor
Spark Plug:	NGK CR9E
Ignition:	Electronic injection
Electric:	Electric
Max Power:	116 kW /157,8 hp @ 10200 rpm
Max Torque:	120 Nm / 12.2 kgm / 88.5 lb-ft @ 8400 rpm
Clutch:	Dry clutch
Transmission:	6 Speed
Final Drive:	Chain drive, ratio 16:37
Primary Drive:	44/79
Gear Ratio:	1st 14/39 / 2nd 18/35 / 3rd 21/32 / 4th 23/30 / 5th 24/28 / 6th 26/27
Rake:	24°
Trail:	95 mm / 3.7 in
Frame:	Decomposable, front steel trestle, rear aluminium alloy casting
Front Suspension:	50 mm Ø Upside-down fork, with hydraulic rebound / compression and spring preload adjustments
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Steel tube trestle swingarm, rear dumper with hydraulic adjustment (rebound, high and low speed compression) and spring preload assembled with progressive link
Rear Wheel Travel:	120 mm / 4.7 in
Front Brakes:	2 x 320mm Ø discs, 4 piston caliper
Rear Brakes:	Single 240mm Ø disc, 2 piston caliper
Front Tyre:	120/70-17
Rear Tyre:	190/50-17
Dimensions:	Length: 2000 mm / 78.7 in Width: 790 mm / 31.1 in Height: 1050 mm / 41.3 in
Wheelbase:	1419 mm / 55.9 in
Seat Height:	830 mm / 32.7 in
Ground Clearance:	135 mm / 5.3 in
Dry Weight:	205 kg / 452 lbs
Wet Weight:	215 kg / 474 lbs
Fuel Capacity:	16 Litres / 4.2 US gal
Review:	Mark Fattore, Bikepoint
