Adler MB 250 RS (1953) technical specifications

Adler MB 250 RS technical specifications

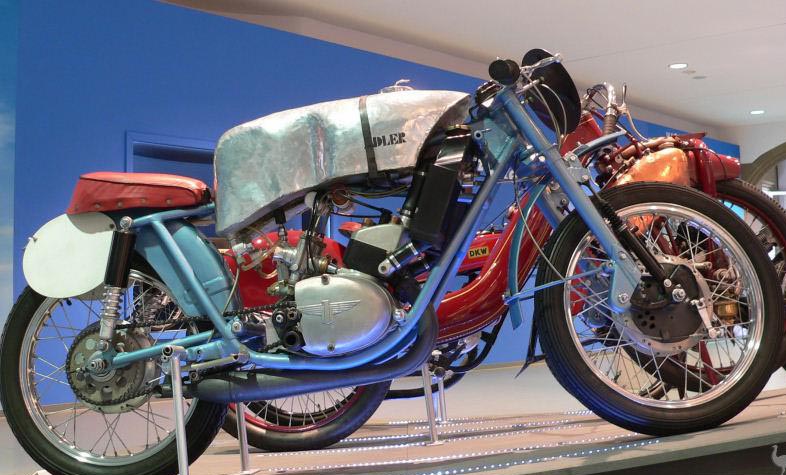

Adler MB 250 RS is produced in 1953. Engine is 2 cylinder, 2 stroke, flat-crowned pistons, displacement 247 cc / 15.1 cub in. , produces power 19.2 kW / 26 hp @ 7500 rpm. Adler MB 250 RS top speed is 169 km/h / 105 mph. Adler MB 250 RS weighs 98 kg / 216 lbs. Adler MB 250 RS has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: MB 250 RS
Years: 1953
Engine: 2 cylinder, 2 stroke, flat-crowned pistons
Capacity: 247 cc / 15.1 cub in.
Bore x Stroke: 54 x 54 mm
Cooling: Air cooled
Lubrication: Petrol oil mix 25:1
Clutch: Multi disc
Starting: Kick start
Battery: 6V, 6Ah
Ignition: Bosch coil
Carburetor: Twin Bing carburetors
Exhaust System: Twin, steel, chrome
Max Power: 19.2 kW / 26 hp @ 7500 rpm
Compression Ratio: 1: 5.75
Transmission: 4 Speed gearbox housed in engine block, foot gearchange
Final Drive: Chain
Frame: Double tubular frame with sidecar adapter.
Front suspension: Twin swinging leading link forks with shock absorber and steering damper
Rear suspension: Swinging fork adjustable for load and road conditions
Tyres (front and back): 3.25 x 16 in.
Brakes (front and back): Drums, 180 mm diameter
Wheelbase: 1257 mm / 49.5 in.
Dry Weight: 98 kg / 216 lbs
Fuel Capacity: 12 L / 3.2 US gal
Reserve: 3.8 L / 1 US gal
Average Consumption: 3.6 l/100 km / 27.8 km/l / 65.3 US mpg
Top Speed: 169 km/h / 105 mph

Riders reviews


No riders reviews. Be the first to review this bike.
