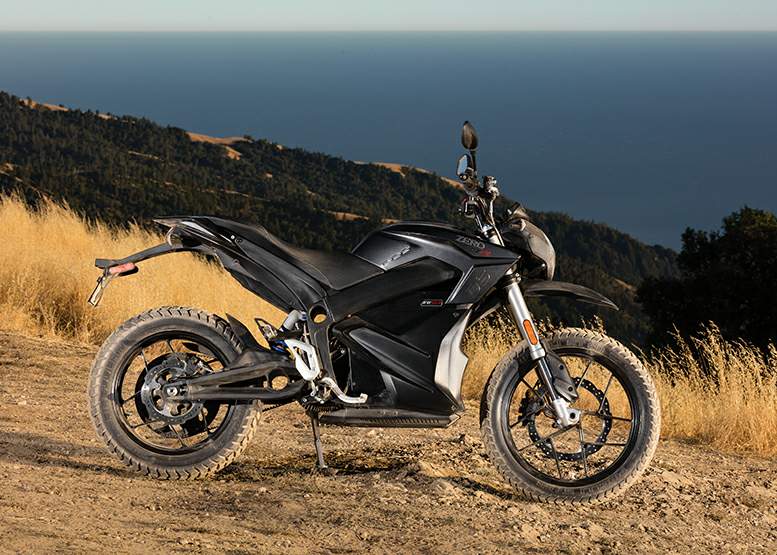

2017 Zero DSR technical specifications

Zero DSR technical specifications

Technical specifications

Model: DSR
Years: 2017
Motor: Type Z-Force® 75-7 passively air-cooled, high efficiency, radial flux permanent magnet, brushless motor. Controller High efficiency, 775 amp, 3-phase brushless controller with regenerative deceleration
Power Pack: Z-Force Li-Ion intelligent integrated
Maximum capacity: ZF 13.0: 13.0 kWhZF 13.0 + Power tank: 16.3 kWh
Nominal capacity: ZF 13.0: 11.4 kWh ZF 13.0 + Power pack:  14.3 kWh
Estimated pack life (to 80%): ZF 13.0: 533 000 km / 331 000 miles ZF 13.0 + Power tank:  666 000 km / 414 000 miles
Charger Type: 1.3 kW, integrated
Charge Time (standard): ZF 13.0: 8.9 hrs (95%: 8.4 hrs) ZF 13.0 + Power tank: 11 hrs (95%: 10.5 hrs)
With Charge Tank Accessory: ZF 6.5: 1.9 hrs (95%: 1.4 hrs) ZF 13.0: 3.4 hrs ( 95%: 2.9 hrs) ZF 13.0 + Power tank: N/A
With One Accessory Charger: ZF 13.0: 5.2 hrs ( 95%: 4.7 hrs) ZF 13.0 + Power tank: 6.4 hrs (95%: 5.9 hrs)
With Max Accessory Chargers: ZF 13.0: 2.6 hrs (95%: 2.1 hrs) ZF 13.0 + Power tank: 3.1 hrs (95%: 2.6 hrs)
City Range: ZF 13.0: 237 km / 147 miles ZF 13.0 + Power tank:  296 km / 184 miles
Maximum Combined Range  (89 - 113 km/h / 55 - 70 mph): ZF 13.0: 153 - 177 km / 95 - 110 miles ZF 13.0 + Power tank:  192 - 222 km / 119 - 138 miles
Input: Standard 110V or 220V
Max Power: ZF 13.0: 52 kW / 70 hp @ 3500 rpm ZF 13.0 + Power Tank: 52 kW / 70 hp @ 3500 rpm
Max Torque: 157 Nm / 16.0 kgf-m / 116 ft-lb
Transmission: Clutchless direct drive
Final Drive: 90T/20T, Poly Chain HTD Carbon Belt
Front Suspension: Showa 41 mm inverted cartridge forks, with adjustable preload, compression and rebound damping
Front Wheel Travel: 178 mm / 7.0 in
Rear Suspension: Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Rear Wheel Travel: 179 mm / 7.0 in
Front Brakes: Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, single 320 x 5 mm disc
Rear Brakes: Bosch Gen 9 ABS, J-Juan single piston floating caliper, single 240 x 4.5 mm disc
Front Wheel: 2.50 x 19
Rear Wheel: 3.50 x 17
Front Tyre: Pirelli MT-60 100/90-19
Rear Tyre: Pirelli MT-60, 130/80-17
Rake: 26.5°
Trail: 117 mm / 4.6 in
Wheelbase: 1427 mm / 56.2 in
Seat Height: 843 mm / 33.2 in
Curb Weight: ZF 13.0: 190 kg / 419 lbs ZF 13.0 + Power tank: 210 kg / 463 lbs
Carrying capacity: ZF 13.0: 161 kg / 356 lbs ZF 13.0 + Power tank: 142 kg / 312 lbs
Top Speed (sustained): 145 km/h / 90 mph
