Yamaha YZF-R7 World GP 60th Anniversary Edition (2022) technical specifications

Yamaha YZF-R7 World GP 60th Anniversary Edition technical specifications

Yamaha YZF-R7 World GP 60th Anniversary Edition is produced in 2022. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 689 cc / 42.04 cu-in , produces power 55 kW / 74.8 hp @ 8750 rpm and 68 Nm / 50 lb-ft @ 6500 rpm. Yamaha YZF-R7 World GP 60th Anniversary Edition wet weight is 188 kg / 414 lbs. Yamaha YZF-R7 World GP 60th Anniversary Edition has 8 photos.

Technical specifications

+ Add to 'Compare list'
Model: YZF-R7 World GP 60th Anniversary Edition
Years: 2022
Engine: Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Capacity: 689 cc / 42.04 cu-in
Bore x Stroke: 80 x 68.6 mm
Cooling System: Liquid cooled
Compression Ratio: 11.5:1
Lubrication: Wet sump
Exhaust: Integrated 2-into-1 exhaust pipes and muffler
Induction: Mikuni 38 mm dual bore throttle body F.I.
Emission: Euro 5
Ignition: TCI Transistor Controlled Ignition
Starting: Electric
Max Power: 55 kW / 74.8 hp @ 8750 rpm
Max Power A2 License: 35 kW / 47 hp @7750 rpm
Max Torque: 68 Nm / 50 lb-ft @ 6500 rpm
Transmission: 6 Speed constant mesh
Final Drive: Chain
Clutch: Multiplate wet clutch, with Assist & Slipper clutch
Frame: A high-strength steel frame with a rigid-mount aluminum center

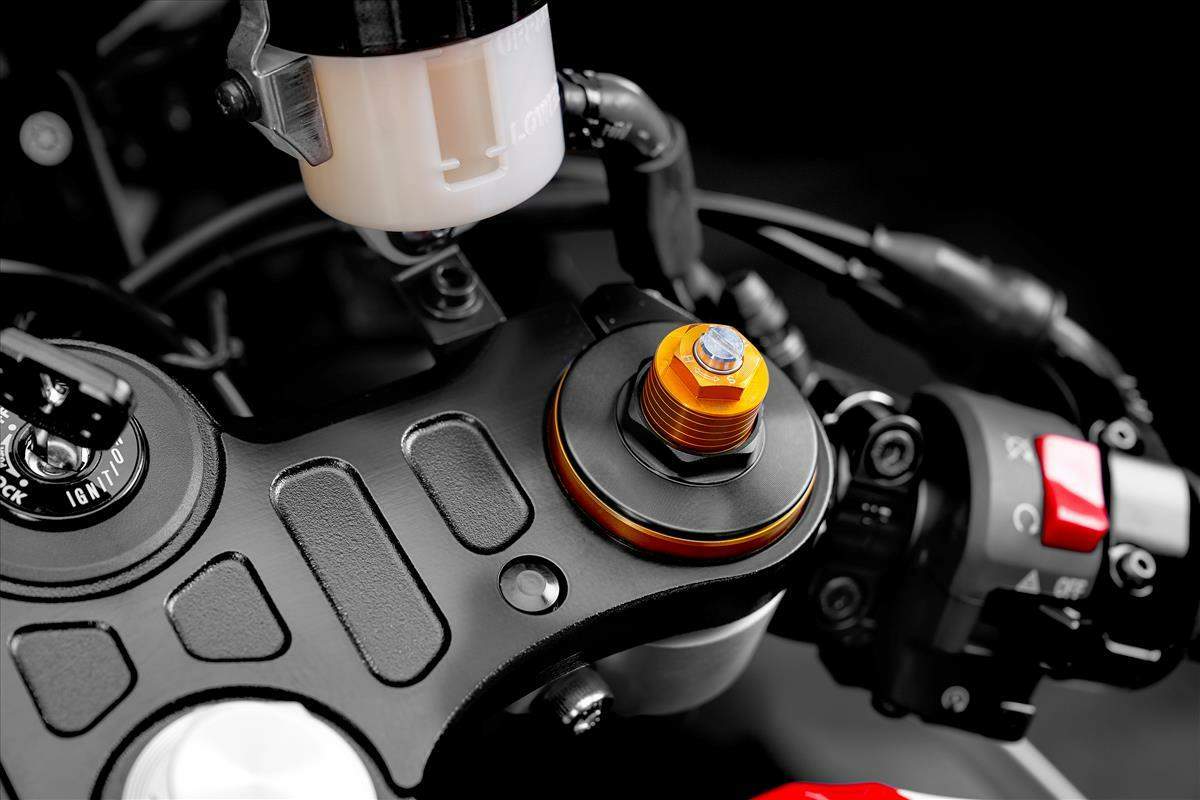

Front Suspension: 41mm Telescopic fork, adjustable for preload, rebound and compression
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Linked-type Monocross shock, adjustable preload and rebound
Rear Wheel Travel: 130 mm / 5.1 in
Front Brakes: 2x 298mm discs, 4-piston calipers
Rear Brakes: Single 245mm disc, single piston caliper
ABS: Standard
Front Tyre: 120/70ZR17M/C (58W) Tubeless
Rear Tyre: 180/55ZR17M/C (73W) Tubeless
Caster Angle: 23°
Trail: 90 mm
Dimensions: Length 2070 mm / 81.5 in Width 705 mm / 27.8 in Height 1160 mm / 45.7 in
Wheelbase: 1395 mm / 54.9 in
Ground Clearance: 135 mm / 5.3 in
Seat Height: 835 mm / 32.9 in
Wet Weight: 188 kg / 414 lbs
Fuel Capacity: 13 Litres / 3.4 US gal
