Yamaha YZF-R 3 Monster Moto GP Replica (2020) technical specifications

Yamaha YZF-R 3 Monster Moto GP Replica technical specifications

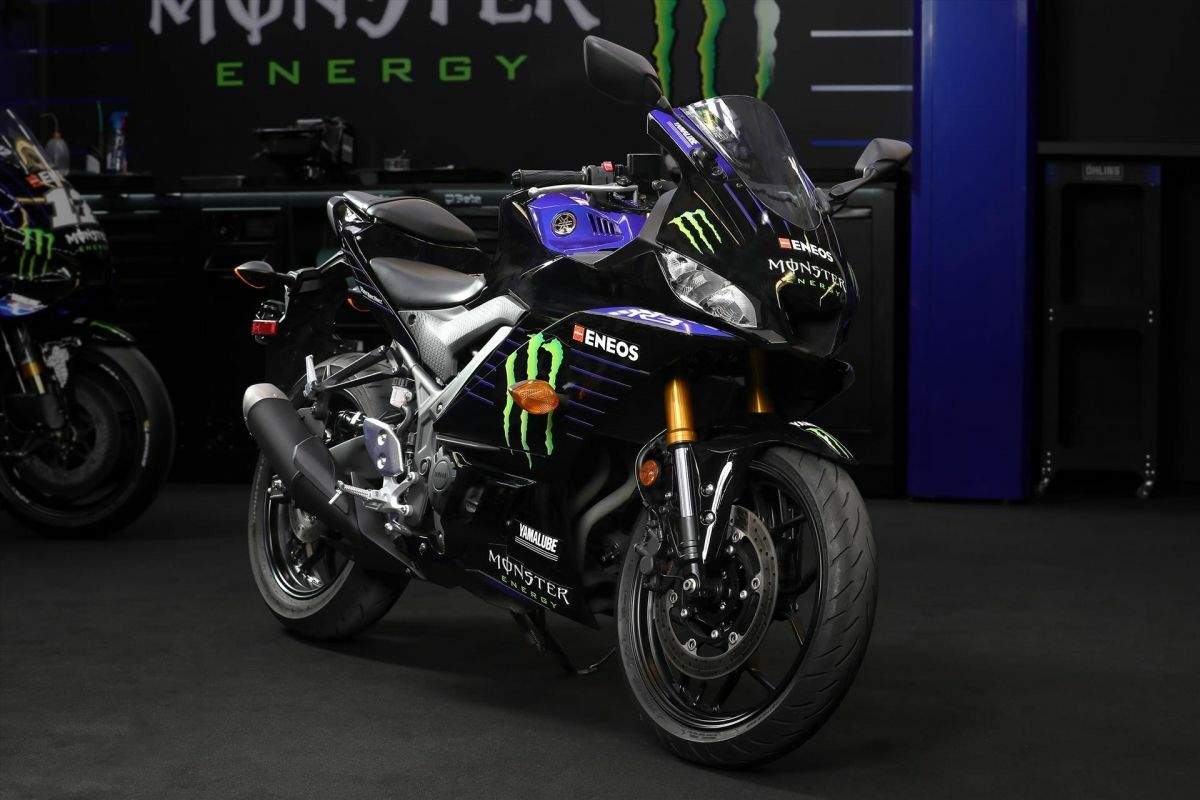

Yamaha YZF-R 3 Monster Moto GP Replica is produced in 2020. Engine is Four stroke, parallel twin cylinder, DUHC, 4 valve per cylinder, displacement 321 cc / 19.5 cu-in , produces power 30.9 kW 41.4 hp @ 10750 rpm and 29.6 Nm / 3.0 kg-m @ 9000 rpm. Yamaha YZF-R 3 Monster Moto GP Replica wet weight is 167 kg / 368 lbs / 170 kg / 374.7 lbs ABS. Yamaha YZF-R 3 Monster Moto GP Replica has 7 photos.

Technical specifications

+ Add to 'Compare list'
Model: YZF-R 3 Monster Moto GP Replica
Years: 2020
Engine: Four stroke, parallel twin cylinder, DUHC, 4 valve per cylinder
Capacity: 321 cc / 19.5 cu-in
Bore x Stroke: 68.0 x 44.1mm
Cooling System: Liquid cooled
Compression Ratio: 11.2:1
Induction: Electronic Fuel Injection, 32 mm throttle body
Lubrication: Wet sump
Ignition: TCI: Transistor Controlled Ignition
Starting: Electric
Max Power: 30.9 kW 41.4 hp @ 10750 rpm
Max Torque: 29.6 Nm / 3.0 kg-m @ 9000 rpm
Clutch: Wet, multiple-disc coil spring
Transmission: Constant Mesh, 6-speed
Final Drive: “O” ring chain
Frame: Delta box
Front Suspension: 37 mm USD Inverted telescopic fork
Rear Suspension: Monocross single Kayaba shock, adjustable preload
Front Brakes: Single 298mm disc 2 piston caliper, ABS available
Rear Brakes: Single 220mm disc 1 piston caliper, ABS available
Wheels: 10-spoke cast aluminum wheels
Front Tyre: 110/70-17M/C 54H
Rear Tyre: 140/70-17M/C 66H
Caster: 25°
Trail: 93.9 mm / 3.7 in
Dimension: Length 2090.4 mm / 82.3 in Width 718.8 mm / 28.3 in Height 1110.4 mm / 43.7 in
Wheelbase: 1379.2 mm / 54.3 in
Seat Height: 780 mm / 30.7 in
Ground Clearance: 160 mm / 6.2 in
Wet Weight: 167 kg / 368 lbs / 170 kg / 374.7 lbs ABS
Fuel Capacity: 14 Litres / 3.7 US gal
