Yamaha YZF 1000 R1-M (2020) technical specifications

Yamaha YZF 1000 R1-M technical specifications

Yamaha YZF 1000 R1-M is produced in 2020. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 998 cc / 60.9 cu-in , produces power 147.1 kW / 197 hp @ 13500 rpm and 112.4 Nm / 11.5 kg-m @ 11500 rpm. Yamaha YZF 1000 R1-M wet weight is 204 kg / 450 lbs. Yamaha YZF 1000 R1-M has 9 photos.

Technical specifications

+ Add to 'Compare list'
Model: YZF 1000 R1-M
Years: 2020
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 998 cc / 60.9 cu-in
Bore x Stroke: 79.0 x 50.9 mm
Compression Ratio: 13.0:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Engine Management: YCC-T, YCC-I, PWR, TCS, LCS, LIF, SCS, QSS, CCU & SCU
Induction: Fuel Injection with YCC-T and YCC-I
Ignition: TCI: Transistor Controlled Ignition
Starting: Electric
Max Power: 147.1 kW / 197 hp @ 13500 rpm
Max Torque: 112.4 Nm / 11.5 kg-m @ 11500 rpm
Clutch: Wet, Multiple Disc
Transmission: 6-speed wet multiplate assist and slipper clutch
Final Drive: "O" ring chain
Front Suspension: 43mm Öhlins Electronic Racing Suspension NPX fork, fully adjustable
Front Wheel Travel: 120 mm / 4.7 in

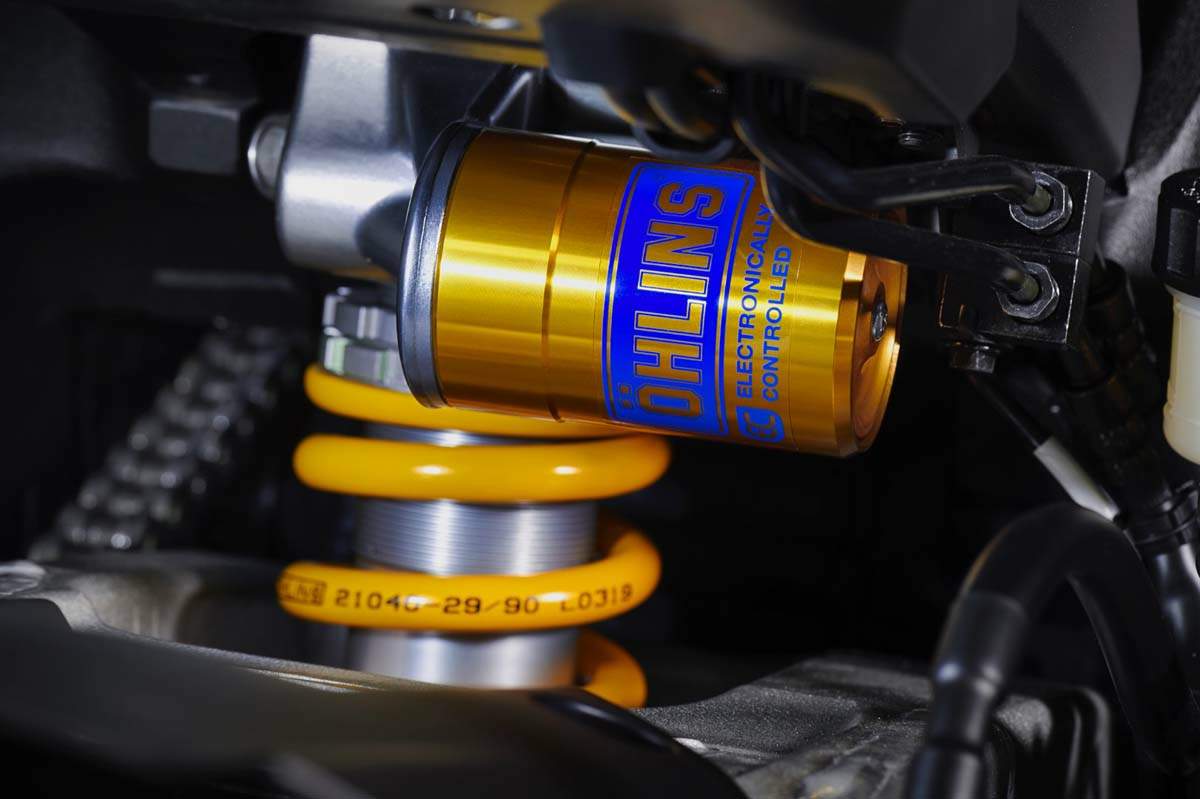

Rear Suspension: Öhlins Electronic Racing Suspension single shock, fully adjustable
Rear Wheel Travel: 120 mm / 4.7 in
Front Brakes: 2x 320mm hydraulic disc, Brake Control System and ABS
Rear Brakes: Single 220mm hydraulic disc, Brake Control System and ABS
Front Tyre: 120/70ZR17
Rear Tyre: 200/55ZR17
Rake: 24°
Trail: 101.6 mm / 4.0 in
Dimensions: Length 2054.8 mm / 80.9 in Width 690 mm / 27.2 in Height 1165.8 mm / 45.9 in
Wheelbase: 1404.6 mm / 55.3 in
Ground Clearance: 130mm / 5.1 in
Seat Height: 861 mm / 33.9 in
Wet Weight: 204 kg / 450 lbs
Fuel Capacity: 17 Liters / 4.5 US gal
