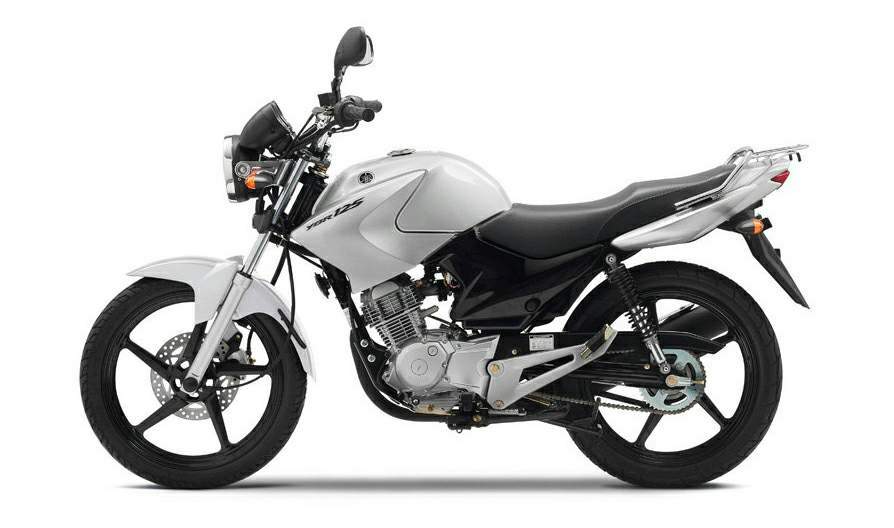

2007 Yamaha YBR 125 technical specifications
Technical specifications
|
|
|---|---|
| Model: | YBR 125 |
| Years: | 2007-09 |
| Engine: | Four stroke, single cylinder, SOHC, 2 valves |
| Capacity: | 124 cc / 7.6 cu-in |
| Bore x Stroke: | 54 x 54 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.0:1 |
| Induction: | Fuel infection |
| Ignition: | CDI |
| Starting: | Electric & kick |
| Max Power: | 10.1 hp / 7.4 kW @ 7800 rrpm |
| Max Torque: | 10 Nm @ 7400 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Frame: | Steel double cradle |
| Front Suspension: | Telescopic forks |
| Front Wheel Travel: | 120 mm / 4.7 in |
| Rear Suspension: | Bottom link swingarm |
| Rear Wheel Travel: | 105 mm / 4.1 in |
| Front Brakes: | Single 245mm disc |
| Rear Brakes: | Drum |
| Front Tyre: | 90/90-M21 |
| Rear Tyre: | 90/90-M18 |
| Rake: | 26° |
| Trail: | 90 mm / 3.5 in |
| Wheelbase: | 1290 mm / 51 in |
| Seat Height: | 780 mm / 31.0 in |
| Wet Weight: | 106 kg / 234 lbs |
| Fuel Capacity: | 12 Litres / 3.4 US gal |
