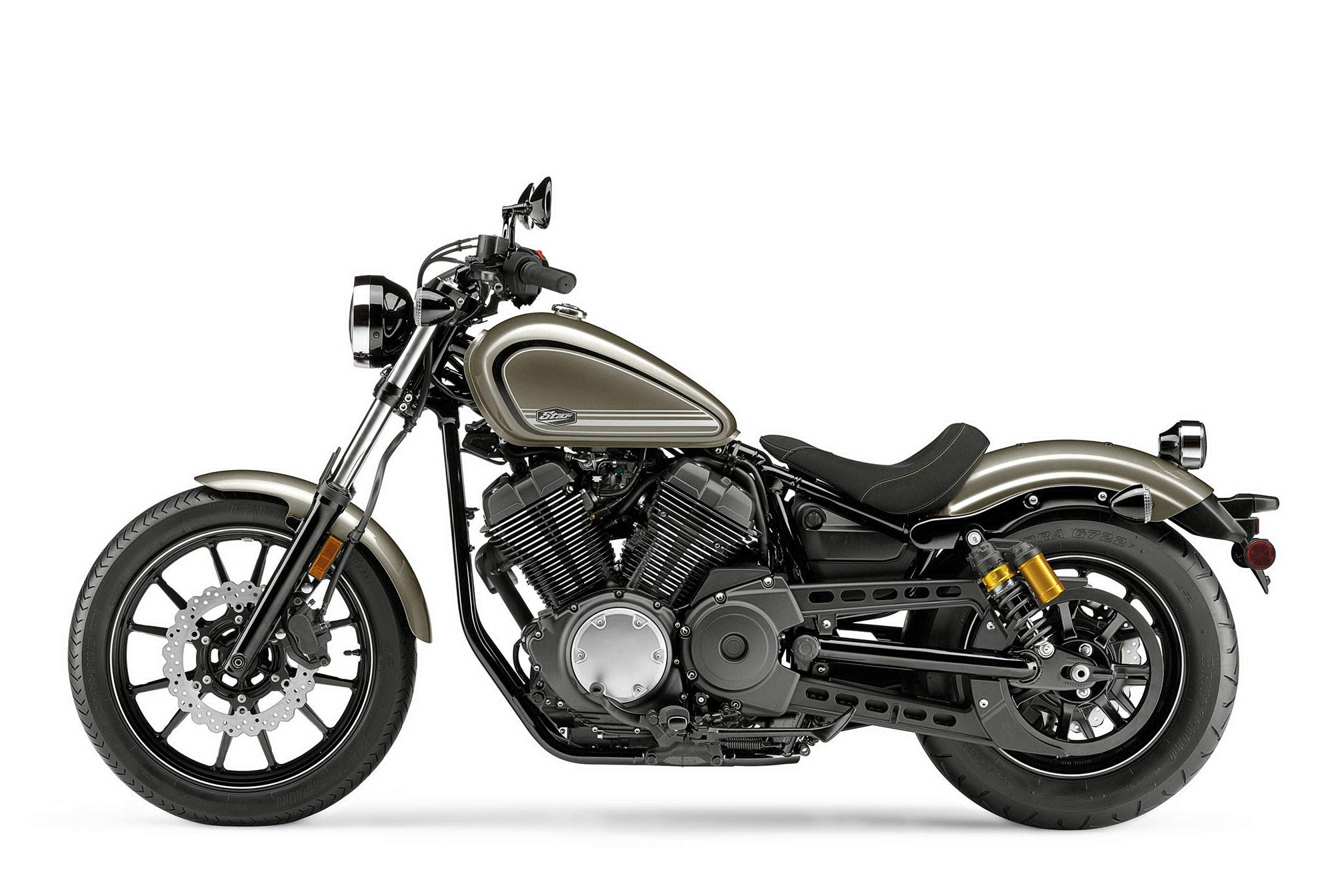

Yamaha XVS 950 V-Star Bolt R Spec (2016-17) technical specifications

Yamaha XVS 950 V-Star Bolt R Spec technical specifications

Yamaha XVS 950 V-Star Bolt R Spec is produced in 2016-17. Engine is Four stroke, 60°V-cylinder, SOHC, 4 valve per cylinder, displacement 942 cc / 58-cu-in Yamaha XVS 950 V-Star Bolt R Spec wet weight is 247 kg / 545 lbs. Yamaha XVS 950 V-Star Bolt R Spec has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: XVS 950 V-Star Bolt R Spec
Years: 2016-17
Engine: Four stroke, 60°V-cylinder, SOHC, 4 valve per cylinder
Capacity: 942 cc / 58-cu-in
Bore x Stroke: 85 x 83mm
Cooling System: Air cooled
Compression Ratio: 9.0:1
Induction: 35mm dual bore throttle body fuel injection
Ignition: Digital TCI
Starting: Electric
Max Torque: 8.2 kgf-m / 59.3 ft-lb @ 3000rpm
Transmission: 5 Speed
Final Drive: Belt
Front Suspension: 41mm forks, 5.3in wheel travel
Rear Suspension: Preload adjustable dual shocks
Front Brakes: Single 298mm disc 2 piston caliper
Rear Brakes: Single 298mm disc
Front Tyre: 100/90 -19
Rear Tyre: 150/80-16
Rake: 29°
Trail: 130 mm / 5.1 in
Dimensions: Length 2290 mm / 90.2 in Width 830 mm / 37.2 in Height 1120 mm / 44.1in
Wheelbase: 1570 mm / 61.8 in
Seat Height: 690 mm / 27.2 in
Wet Weight: 247 kg / 545 lbs
Fuel Capacity: 12 Litres / 3.1 US gal
