Yamaha XVS 950 V-Star Bolt (2014-15) technical specifications

Yamaha XVS 950 V-Star Bolt technical specifications

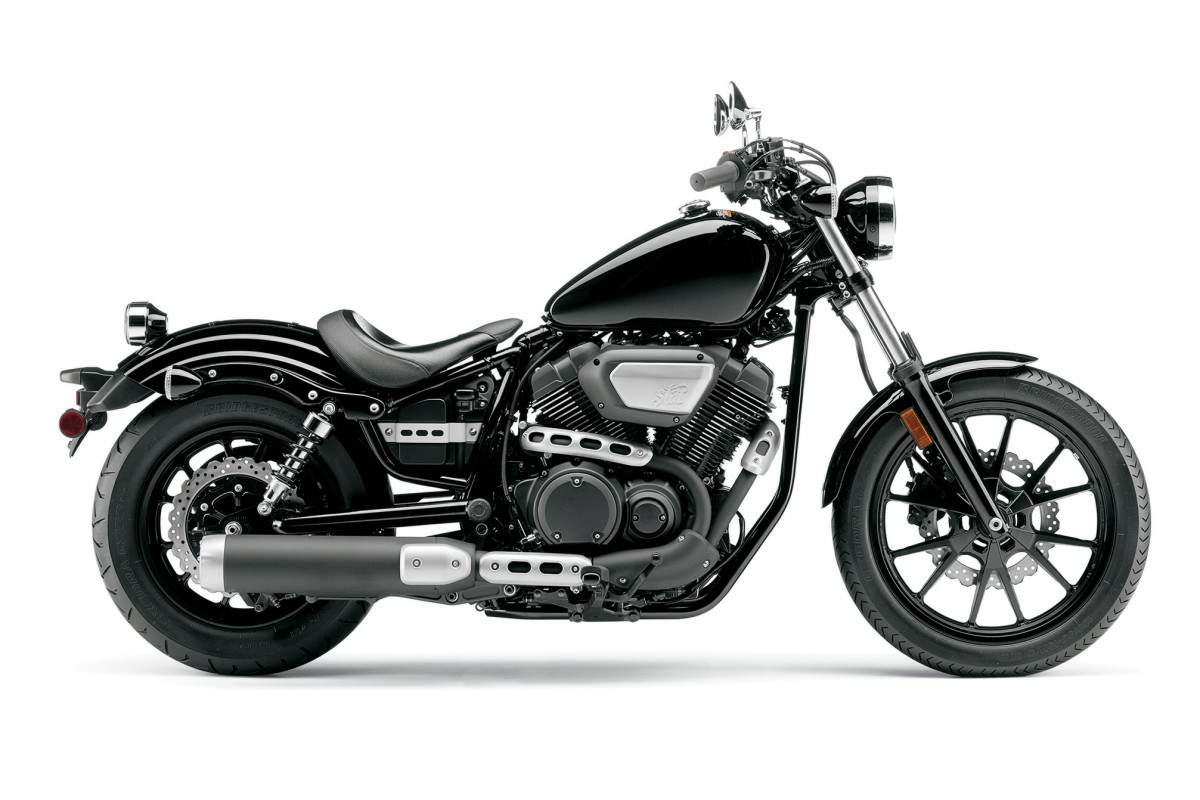

Yamaha XVS 950 V-Star Bolt is produced in 2014-15. Engine is Four stroke, 60°V-cylinder, SOHC, 4 valve per cylinder, displacement 942 cc / 58-cu-in , produces power 52.4 hp / 38.6 kW @ 6000 rpm and 8.2 kgf-m / 59.3 ft-lb @ 3000rpm. Yamaha XVS 950 V-Star Bolt wet weight is 247 kg / 545 lbs. Yamaha XVS 950 V-Star Bolt has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: XVS 950 V-Star Bolt
Years: 2014-15
Engine: Four stroke, 60°V-cylinder, SOHC, 4 valve per cylinder
Capacity: 942 cc / 58-cu-in
Bore x Stroke: 85 x 83mm
Cooling System: Air cooled
Compression Ratio: 9.0:1
Induction: 35mm dual bore throttle body fuel injection
Ignition: Digital TCI
Starting: Electric
Max Power: 52.4 hp / 38.6 kW @ 6000 rpm
Max Torque: 8.2 kgf-m / 59.3 ft-lb @ 3000rpm
Transmission: 5 Speed
Final Drive: Belt
Front Suspension: 41mm forks, 5.3in wheel travel
Rear Suspension: Preload adjustable dual shocks
Front Brakes: Single 298mm disc 2 piston caliper
Rear Brakes: Single 298mm disc
Front Tyre: 100/90 -19
Rear Tyre: 150/80-16
Rake: 29°
Trail: 130mm / 5.1 in
Dimensions: Length 2290 mm / 90.2 in Width 830 mm / 37.2 in Height 1120 mm / 44.1in
Wheelbase: 1570 mm / 61.8 in
Seat Height: 690 mm / 27.2 in
Wet Weight: 247 kg / 545 lbs
Fuel Capacity: 12 Litres / 3.1 US gal
