Yamaha XVS 650 V-Star Custom (2010-11) technical specifications

Yamaha XVS 650 V-Star Custom technical specifications

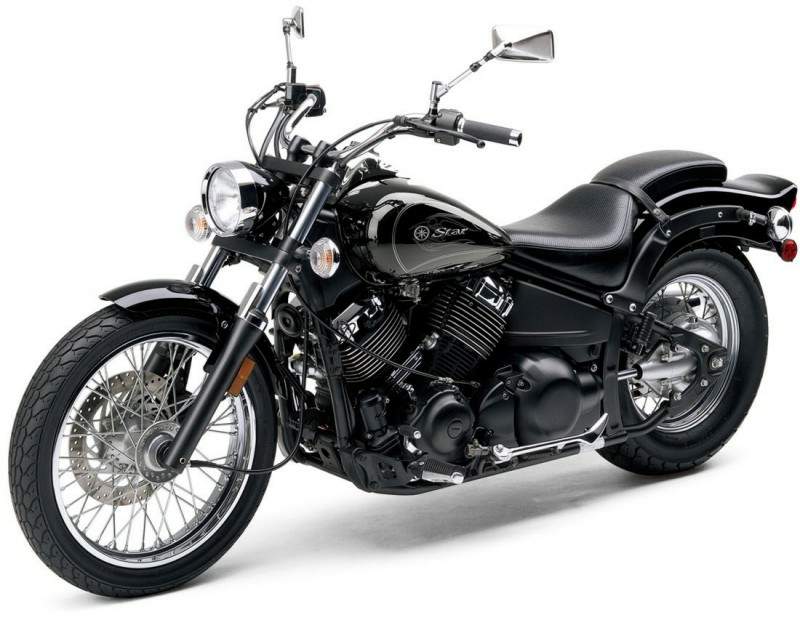

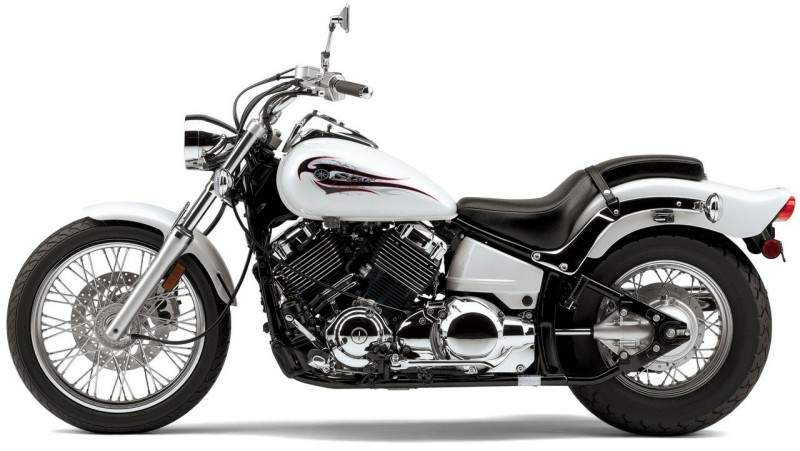

Yamaha XVS 650 V-Star Custom is produced in 2010-11. Engine is Four stroke, 70°V-twin cylinder, SOHC, 2 valve per cylinder, displacement 649 cc / 39.6 cu-in , produces power 40 hp / 29.2 kW @ 6500 rpm and 50.9 Nm / 37.5 lb-ft @ 3000 rpm. Yamaha XVS 650 V-Star Custom weighs 214 kg / 471 lbs. Yamaha XVS 650 V-Star Custom has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: XVS 650 V-Star Custom
Years: 2010-11
Engine: Four stroke, 70°V-twin cylinder, SOHC, 2 valve per cylinder
Capacity: 649 cc / 39.6 cu-in
Bore x Stroke: 81 x 63mm
Cooling System: Air cooled
Compression Ratio: 9.0:1
Lubrication: Wet sump
Induction: 2x 28mm Mikuni BDS28 CV carburetors
Ignition: Digital TCI
Starting: Electric
Max Power: 40 hp / 29.2 kW @ 6500 rpm
Max Torque: 50.9 Nm / 37.5 lb-ft @ 3000 rpm
Clutch: Wet, multiple disc
Transmission: 5 Speed
Final Drive: Shaft
Front Suspension: 41mm forks
Rear Suspension: Adjustable link Monocross
Front Brakes: Single 298mm disc
Rear Brakes: 200mm Drum
Front Tyre: 100/90-19
Rear Tyre: 170/80-15
Dimensions: Length 2340mm / 92.1 in Width 880mm / 34.6 in Height 1075mm / 42.3 in
Wheelbase: 1610mm / 63.4 in
Seat Height: 695 mm / 27.4 in
Dry Weight: 214 kg / 471 lbs
Wet Weight: 233 kg / 514 lbs
Fuel Capacity: 16 Liters / 4.2 US gal
