Yamaha XVS 650 Drag Star Silverado (2003-06) technical specifications

Yamaha XVS 650 Drag Star Silverado technical specifications

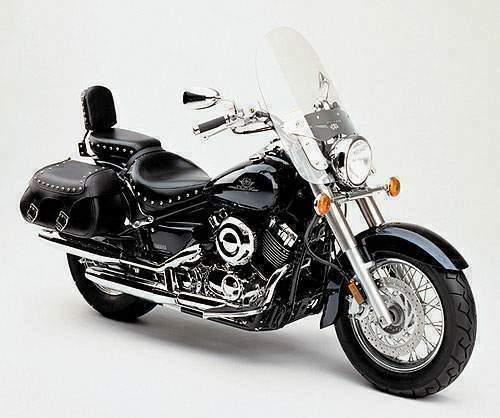

Yamaha XVS 650 Drag Star Silverado is produced in 2003-06. Engine is Four stroke, 75°V-twin cylinder, SOHC, 2 valve per cylinder, displacement 649 cc / 39.6 cu-in , produces power 40 hp / 29.2 kW @ 6500 rpm and 50.9 Nm / 37 lb-ft @ 3000 rpm. Yamaha XVS 650 Drag Star Silverado weighs 229 kg / 504 lbs. Yamaha XVS 650 Drag Star Silverado has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: XVS 650 Drag Star Silverado
Years: 2003-06
Engine: Four stroke, 75°V-twin cylinder, SOHC, 2 valve per cylinder
Capacity: 649 cc / 39.6 cu-in
Bore x Stroke: 81 x 63 mm
Cooling System: Air cooled
Compression Ratio: 9.0:1
Lubrication: Wet sump
Induction: 28mm Mikuni downdraft-type carburetor
Ignition: Digital TCI
Starting: Electric
Max Power: 40 hp / 29.2 kW @ 6500 rpm
Max Torque: 50.9 Nm / 37 lb-ft @ 3000 rpm
Clutch: Wet, multiple disc
Transmission: 5 Speed
Final Drive: Shaft
Front Suspension: Telescopic fork
Front Wheel Travel: 140 mm / 5.5 in
Rear Suspension: Swingarm Monocross
Rear Wheel Travel: 86 mm / 3.4 in
Front Brakes: Single 298mm disc 2 piston calipers
Rear Brakes: 200mm drum
Front Tyre: 130/90-18
Rear Tyre: 170/80-15
Dimensions: Height 1105 mm / 43.5 in Length 2450 mm / 96.5 in width 930 mm / 36.6 in
Wheelbase: 1625 mm / 64 in
Seat Height: 695 mm / 26.0 in
Ground Clearance: 145 mm / 5.7 in
Dry Weight: 229 kg / 504 lbs
Fuel Capacity: 16 Litres / 4.2 US gal
