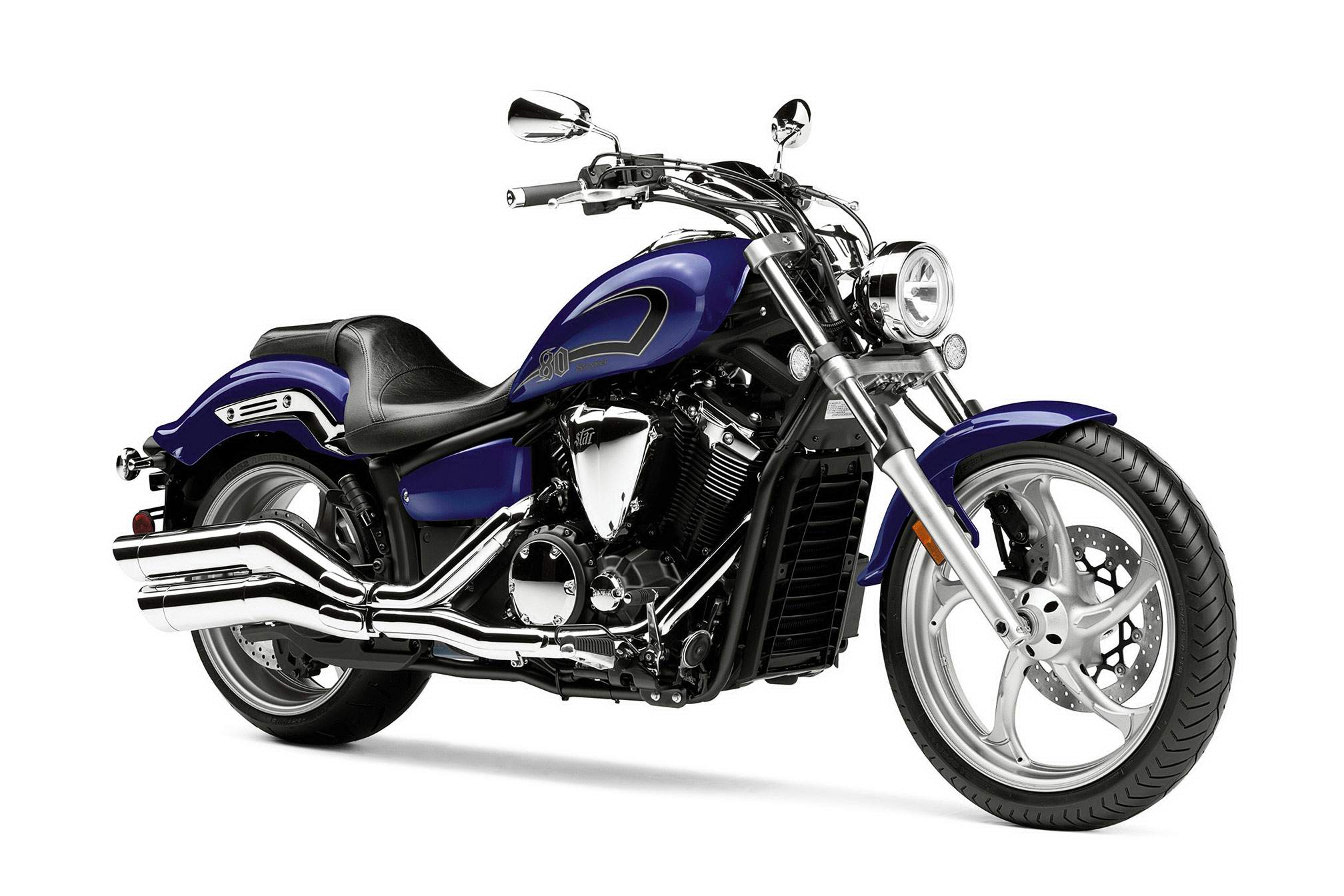

Yamaha XVS 1300 Stryker (2015-16) technical specifications

Yamaha XVS 1300 Stryker technical specifications

Yamaha XVS 1300 Stryker is produced in 2015-16. Engine is Four stroke, V-twin; SOHC, 4 valves per cylinder ., displacement 1304 cc / 80 cu-in Yamaha XVS 1300 Stryker wet weight is 293 kg / 644.6 lbs. Yamaha XVS 1300 Stryker has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: XVS 1300 Stryker
Years: 2015-16
Engine: Four stroke, V-twin; SOHC, 4 valves per cylinder .
Capacity: 1304 cc / 80 cu-in
Bore x Stroke: 100.0 x 83.0 mm
Cooling System: Liquid cooled
Compression Ratio: 9.5;1
Induction: Dual bore 40mm Fuel Injection
Ignition: TCI: Transistor Controlled Ignition
Starting: Electric
Max Torque: 11.3 kgf-m / 81.8 ft-lb @ 4000 rpm
Clutch: Multi plate wet clutch
Transmission: 5 Speed
Final Drive: Belt
Frame: Steel double cradle
Front Suspension: 41mm telescopic fork
Rear Suspension: Adjustable link Monocross
Front Brakes: Single 310 mm discs
Rear Brakes: Single 310mm disc
Front Tyre: 120/70 -R21
Rear Tyre: 210/40 -R18
Rake: 29.0°
Trail: 102 mm / 4.0 in
Dimensions: Length 2530 mm / 99.6 in WIdth 860 mm / 33.9 jn Height 1130mm / 44.5 in
Wheelbase: 1750 mm / 68.9 in
Seat Height: 670 mm / 26.4 in
Wet Weight: 293 kg / 644.6 lbs
Fuel Capacity: 15 Litres / 3.9 US gal
