Yamaha XVS 1100 Drag Star Classic (2003-04) technical specifications

Yamaha XVS 1100 Drag Star Classic technical specifications

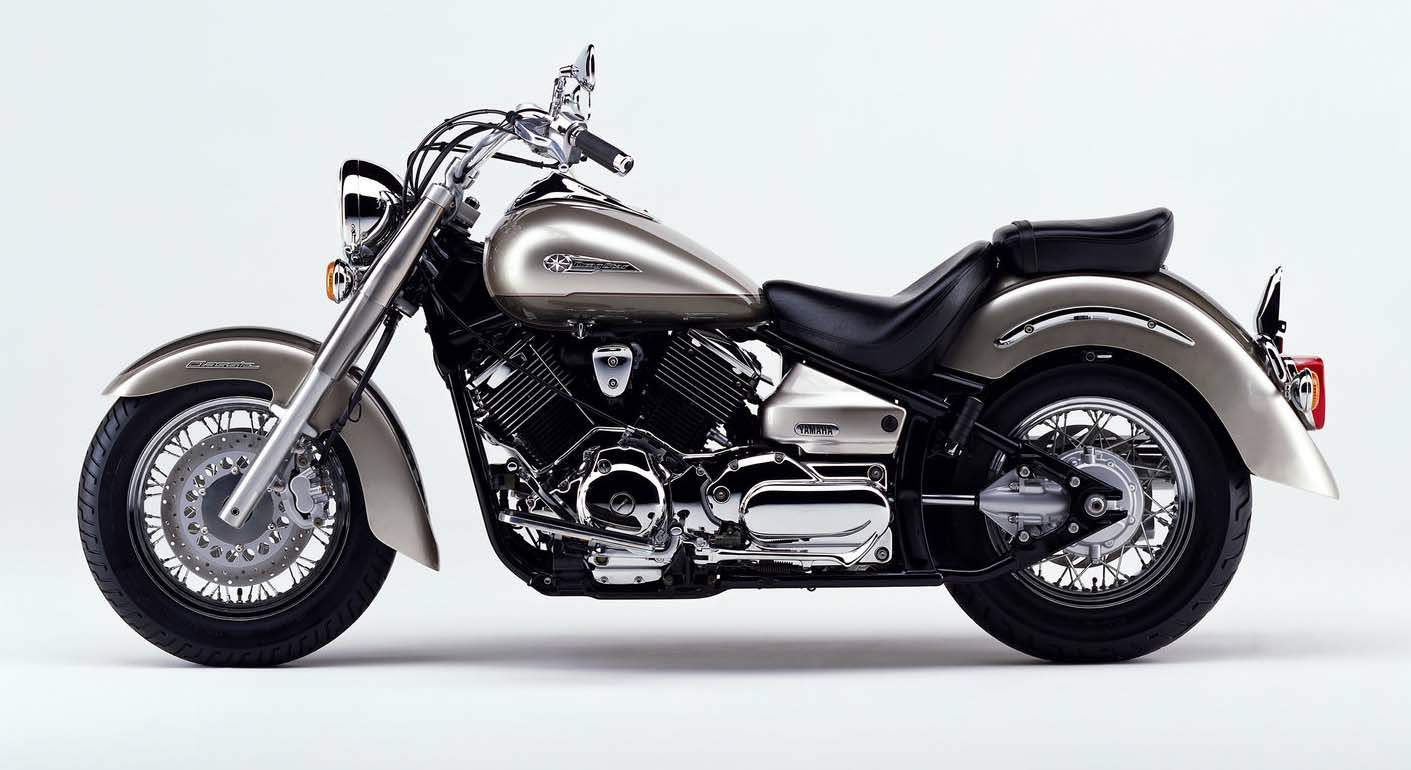

Yamaha XVS 1100 Drag Star Classic is produced in 2003-04. Engine is Four stroke, 75° V-twin cylinder SOHC, 4 valve per cylinder, displacement 1063 cc / 64.8 cu-in , produces power 62 hp / 45.2 kW @ 5750 rpm and 85 Nm / 62.7 lb-ft @ 2500 rpm. Yamaha XVS 1100 Drag Star Classic weighs 259 kg / 571 lbs. Yamaha XVS 1100 Drag Star Classic has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: XVS 1100 Drag Star Classic
Years: 2003-04
Engine: Four stroke, 75° V-twin cylinder SOHC, 4 valve per cylinder
Capacity: 1063 cc / 64.8 cu-in
Bore x Stroke: 95 x 75 mm
Cooling System: Air cooled
Compression Ratio: 8.3:1
Induction: Carburetors
Ignition: TCI
Starting: Electric
Max Power: 62 hp / 45.2 kW @ 5750 rpm
Max Torque: 85 Nm / 62.7 lb-ft @ 2500 rpm
Transmission: 5 Speed
Final Drive: Shaft
Front Suspension: Telescopic forks
Front Wheel Travel: 140 mm / 5.5 in
Rear Suspension: Swingarm monoshock
Rear Wheel Travel: 113 mm / 4.4 in
Front Brakes: 2x 298mm discs 2 piston calipers
Rear Brakes: Single 282mm disc 1 piston caliper
Front Tyre: 110/90-18
Rear Tyre: 170/85-15
Dimensions: Height 1095 mm / 43.1 in Height 2405 mm / 94.7 in Width 895 mm / 35.2 in
Wheelbase: 1640 mm / 64.6 in
Seat Height: 690 mm / 27.2 in
Ground Clearance: 145 mm / 5.7
Dry Weight: 259 kg / 571 lbs
Fuel Capacity: 17 Litres / 4.4 US gal
