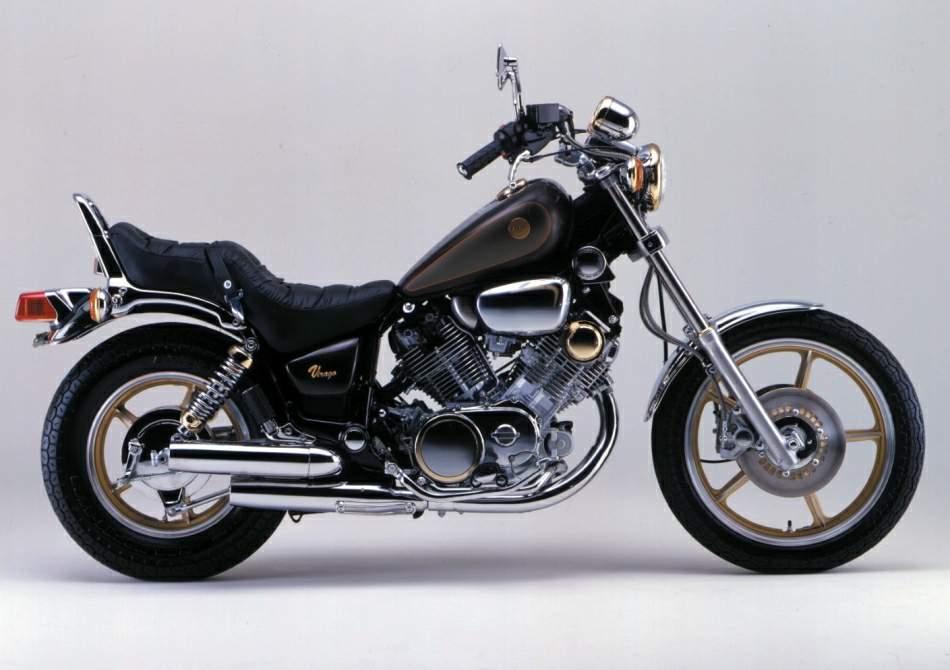

Yamaha XV 750 Virago (1986-91) technical specifications
Yamaha XV 750 Virago is produced in 1986-91. Engine is Four stroke, 75°-V-Twin cylinder, SOHC. 2 valve per cylinder., displacement 748 cc / 45.6 cu-in , produces power 55 hp / 41 kW @ 7000 rpm and 64.7 Nm / 47.74 lb-ft @ 5750 rpm. Yamaha XV 750 Virago top speed is 178.8 km/h / 111.1 mph. Yamaha XV 750 Virago weighs 225 kg / 496 lbs. Yamaha XV 750 Virago has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XV 750 Virago |
| Years: | 1986-91 |
| Engine: | Four stroke, 75°-V-Twin cylinder, SOHC. 2 valve per cylinder. |
| Capacity: | 748 cc / 45.6 cu-in |
| Bore x Stroke: | 83 x 69.2 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 8.7:1 |
| Lubrication: | Wet sump |
| Induction: | 34mm Keihin carburetor |
| Ignition: | Transistorize |
| Starting: | Electric |
| Max Power: | 55 hp / 41 kW @ 7000 rpm |
| Max Torque: | 64.7 Nm / 47.74 lb-ft @ 5750 rpm |
| Clutch: | Wet, multi-plate |
| Transmission: | 5 Speed |
| Final Drive: | Shaft |
| Front Suspension: | 38mm Telescopic |
| Front Wheel Travel: | 145 mm / 5.7 in |
| Rear Suspension: | Mono shocks preload adjustable. |
| Rear Wheel Travel: | 100 mm / 3.7 in |
| Front Brakes: | Single 298mm disc 2 piston calipers |
| Rear Brakes: | 200mm Drum |
| Front Tyre: | 3.50-19 |
| Rear Tyre: | 130/90-16 |
| Rake: | 32.0° |
| Wheelbase: | 1520 mm / 59.8 in |
| Seat Height: | 710 mm / 28.0 in |
| Ground clearance: | 145 mm / 5.7 in |
| Dry Weight: | 225 kg / 496 lbs |
| Wet Weight: | 238 kg /; 524.7 lbs |
| Consumption Average: | 16.9 km/lit |
| Braking 60 - 0 / 100 - 0: | 14.1 m / 40.4 m |
| Standing ¼ Mile: | 13.8 sec / 149.6 km/h |
| Top Speed: | 178.8 km/h / 111.1 mph |
