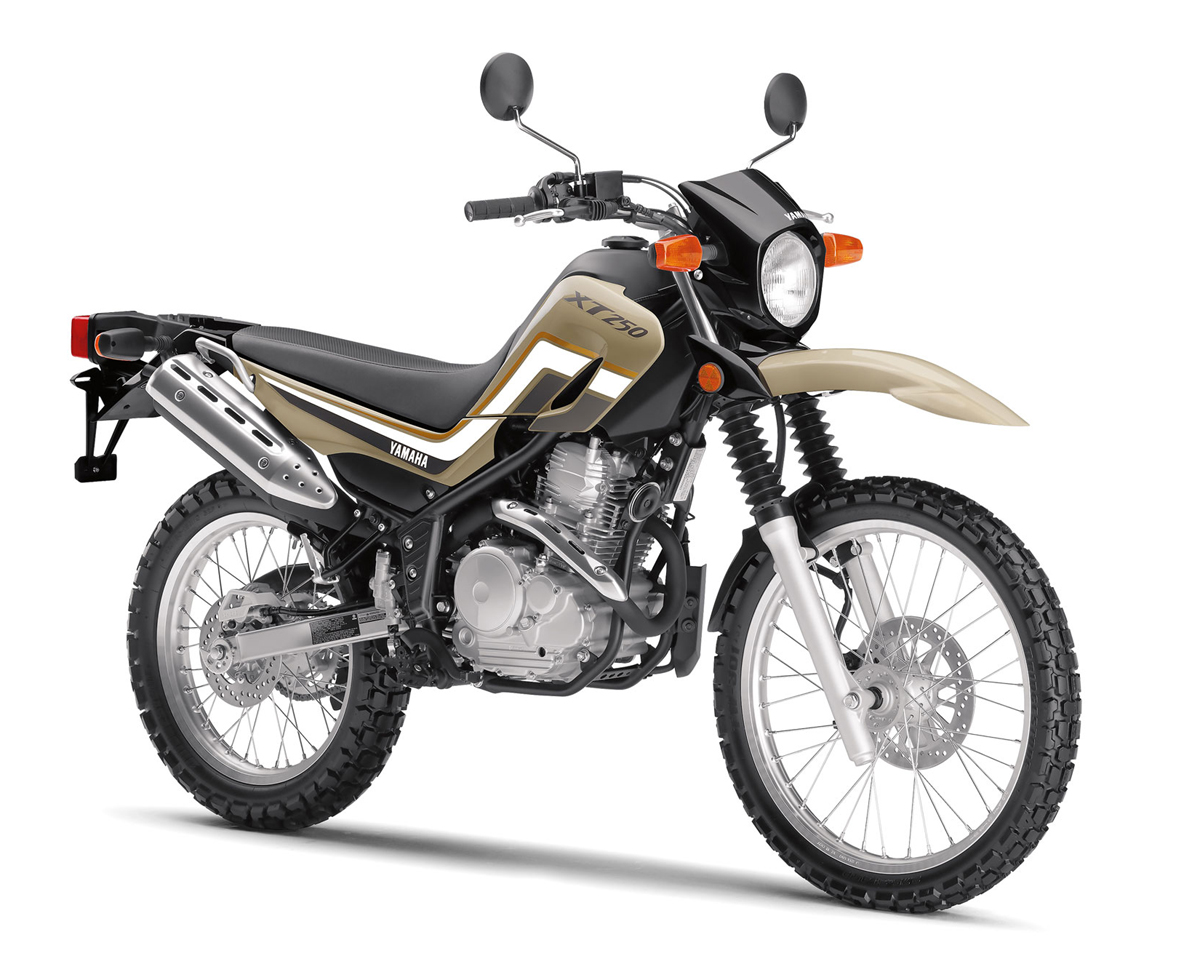

2020 Yamaha XT 250 technical specifications

Yamaha XT 250 technical specifications

Technical specifications

Model: XT 250
Years: 2020
Engine: Four stroke, single cylinder. SOHC,2 valve
Capacity: 249 cc / 15.2cu-in
Bore x Stroke: 74.0 x 58.0mm
Cooling System: Air cooled
Compression Ratio: 9.5;1
Lubrication: Wet sump
Induction: Mikuni 33mm throttle bodyfuel injection
Ignition : TCI
Starting: Electric
Max Power: 18 hp / 13.1 kW @ 7500rpm
Max Torque: 19 Nm / 14.5 lb-fts @ 6500rpm
Clutch: Wet, multiple discs, cableoperated
Transmission : 5 Speed
Final Drive: “O” ringchain
Front Suspension: 35mm Telescopic forks
Front Wheel Travel: 225 mm / 8.9 in
Rear Suspension: Monocross, Swingarmrebound-adjustable single shock
Rear Wheel Travel: 180 mm / 7.1 in
Front Brakes: Single 245mm disc
Rear Brakes: Single 203mm disc
Front Tyre: 80/70-21
Rear Tyre: 120/80-18
Rake: 26.0°
Dimensions: Length 2150 mm / 84.6 inWidth  805mm / 31.7 inHeight 1160mm / 45.7 in
Wheelbase: 1359 mm / 53.5 in
Seat Height: 830mm / 32.7 in
Ground Clearacne: 285 mm / 11.2 in
Dry Weight: 123kg / 271 lbs
Wet Weight: 132 kg / 291 lbs
Fuel Capacity : 9.6 Litres / 2.5 US gal
