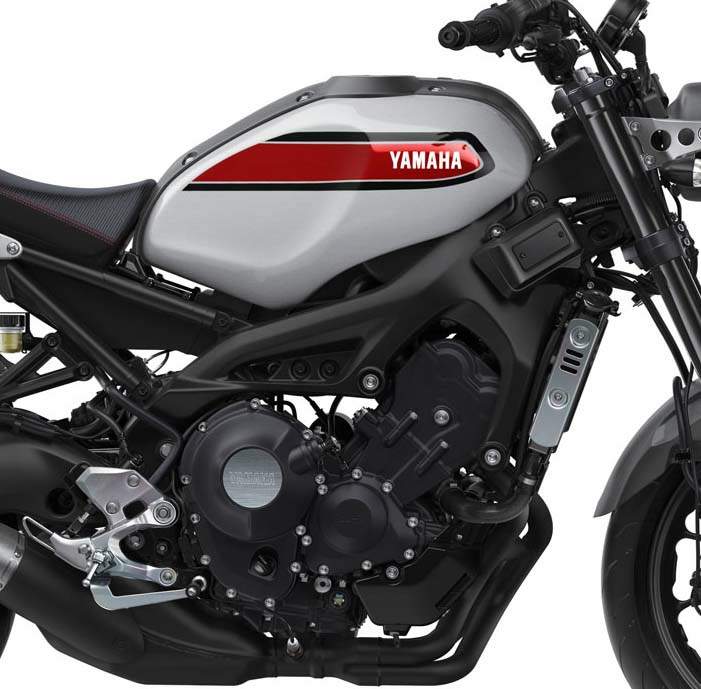

Yamaha XSR 900 (2018-19) technical specifications

Yamaha XSR 900 is produced in 2018-19. Engine is Four stroke, Transverse trree cylinder, DOHC, 12-valve, displacement 847 cc / 51.6 cu-in , produces power 113 hp / 84.2 kW @ 10000 rpm and 87.4 Nm / 64.5 lb-ft @ 8500 rpm. Yamaha XSR 900 wet weight is 195 kg / 430 lbs. Yamaha XSR 900 has 9 photos.

Technical specifications

+ Add to 'Compare list'

Model:	XSR 900
Years:	2018-19
Engine:	Four stroke, Transverse trree cylinder, DOHC, 12-valve
Capacity:	847 cc / 51.6 cu-in
Bore x Stroke:	78.0 x 59.1mm
Cooling System:	Liquid cooled
Compression Ratio:	11.5 : 1
Oil Capacity:	2.7 Litres
Induction:	Yamaha Fuel Injection with YCC-T
Ignition:	TCI: Transistor Controlled Ignition
Starting:	Electric
Max Power:	113 hp / 84.2 kW @ 10000 rpm
Max Torque:	87.4 Nm / 64.5 lb-ft @ 8500 rpm
Clutch:	Wet, Multiple Disc
Transmission:	6-speed; multiplate assist-and-slipper wet clutch

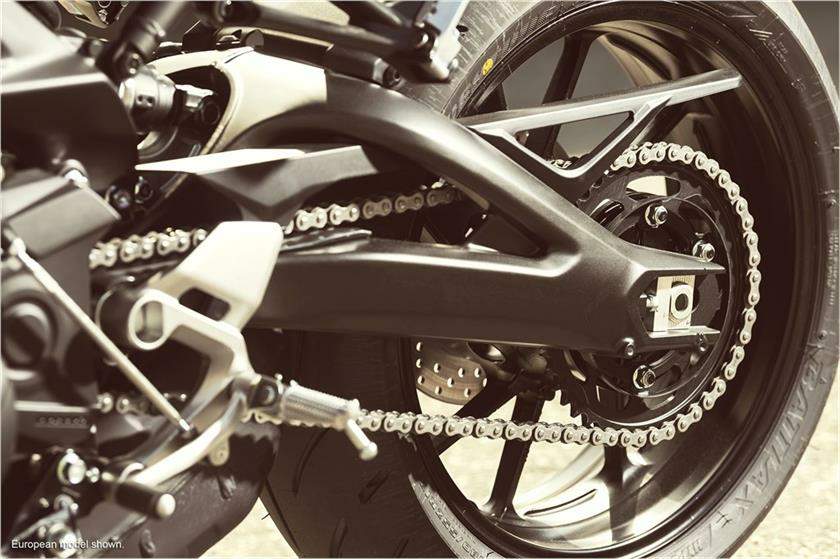

Final Drive:	Chain
Frame:	Diamond
Front Suspension:	41mm inverted fork, adjustable rebound and spring preload
Front Wheel Travel:	137 mm / 5.3 in
Rear Suspension:	Single shock absorber, adjustable rebound and spring preload
Rear Wheel Travel:	130 mm // 5.1 in
Front Brakes:	2x 298mm Hydraulic discs 4 piston caliper
Rear Brakes:	Single 245mm Hydraulic disc 2 poston caliper
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Rake:	25°
Trail:	103 mm / 4.06 in
Dimensions:	Length 2075 mm / 81.7 in Width 815 mm / 32.1 in Height 1140 mm / 44.9 in
Wheelbase:	1440 mm /
Seat Height:	830 mm / 32.6 in
Ground Clearance:	135 mm / 5.3 in
Wet Weight:	195 kg / 430 lbs
Fuel Capacity:	14 Litres / 3.7 US gal
