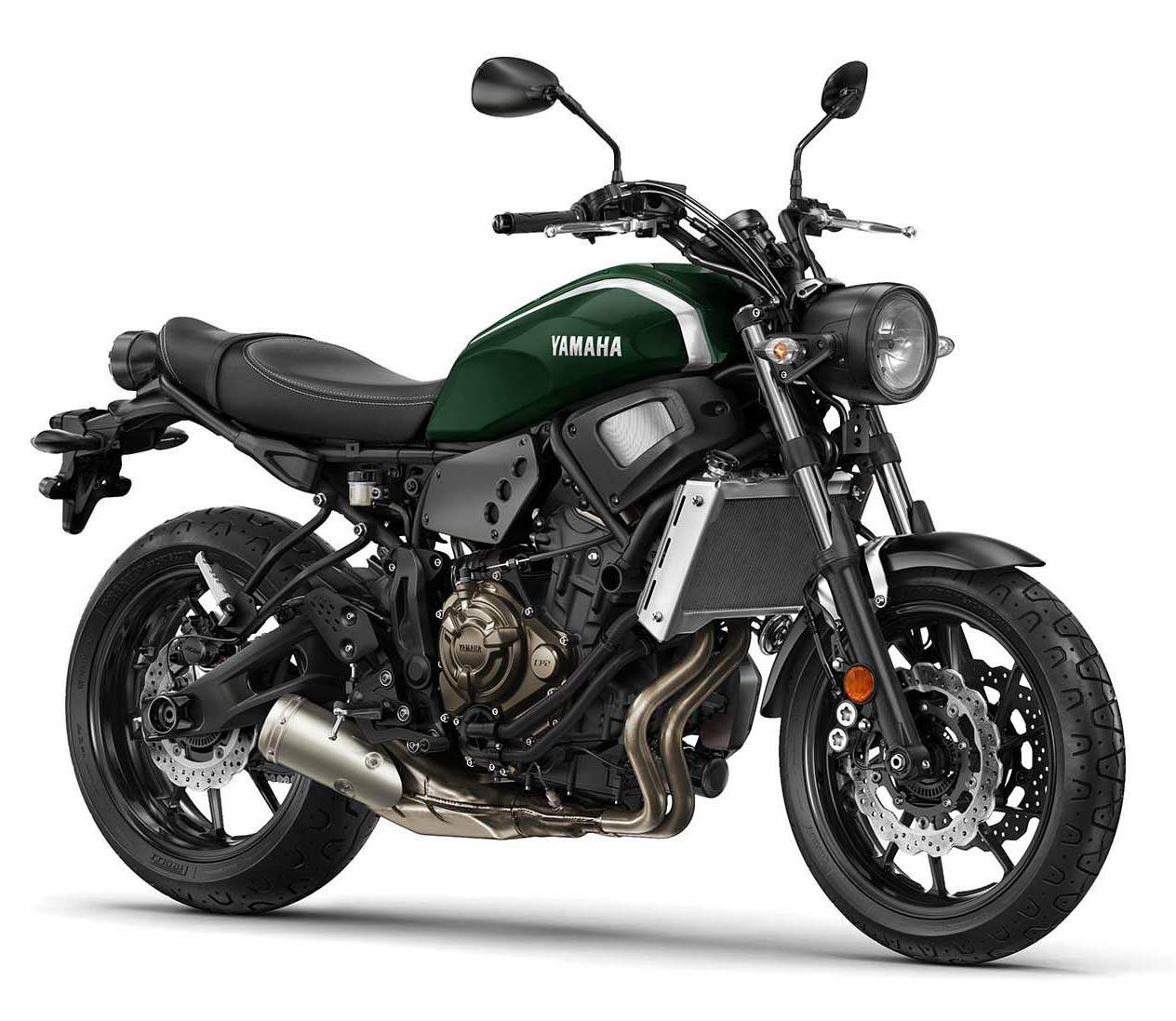

Yamaha XSR 700 (2016-17) technical specifications

Yamaha XSR 700 is produced in 2016-17. Engine is Four stroke, Parallel twin cylinder, DOHC, 4-valve per cylinder, displacement 689 cc / 42.0 cu-in , produces power 55.0 kW / 74.8 PS @ 9000 rpm and 68.0 Nm / 6.9 kg-m @ 6500 rpm. Yamaha XSR 700 wet weight is 186 kg ABS / 410 lbs. Yamaha XSR 700 has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	XSR 700
Years:	2016-17
Engine:	Four stroke, Parallel twin cylinder, DOHC, 4-valve per cylinder
Capacity:	689 cc / 42.0 cu-in
Bore x Stroke:	80.0 x 68.6 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.5 : 1
Oil Capacity:	2.7 Litres
Induction:	Fuel Injection
Ignition:	TCI
Starting:	Electric
Max Power:	55.0 kW / 74.8 PS @ 9000 rpm
Limited Power Vesion:	35.0 kW
Max Torque:	68.0 Nm / 6.9 kg-m @ 6500 rpm
Clutch:	Wet, Multiple Disc
Transmission:	Constant Mesh, 6-speed
Final Drive:	Chain
Frame:	Diamond
Front Suspension:	Telescopic forks
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	Swingarm, (Link type suspension)
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	2x 282mm Hydraulic discs
Rear Brakes:	Single 245mm Hydraulic disc
Front Tyre:	120/70 ZR 17M/C(58V) (Tubeless)
Rear Tyre:	180/55 ZR 17M/C(73V) (Tubeless)
Caster Angle:	24º 50
Trail:	90 mm / 3.5 in
Dimensions:	Length 2075 mm / 81.7 in Width 820 mm / 32.2 in Height 1130 mm / 44.4 in
Wheelbase:	1405 mm / 55.3 in
Seat Height:	815 mm / 32.0 in
Ground Clearance:	140 mm / 5.5 in
Wet Weight:	186 kg ABS / 410 lbs
Fuel Capacity:	14 Litres / 3.7 US gal
