Yamaha XS 850G (1978-79) technical specifications

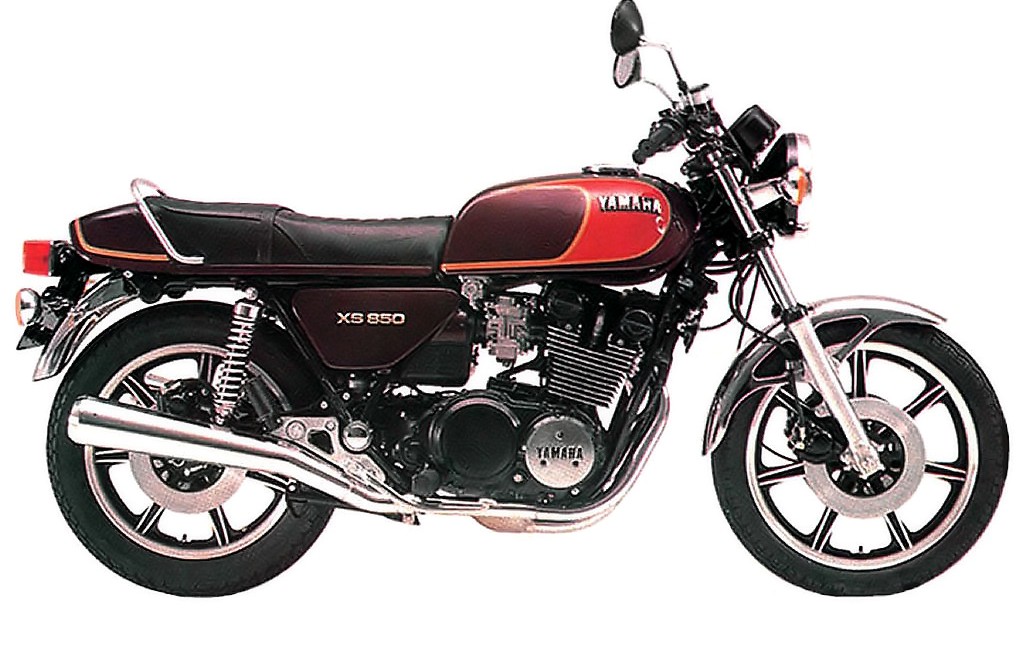

Yamaha XS 850G technical specifications

Yamaha XS 850G is produced in 1978-79. Engine is Four stroke, transverse three cylinder, DOHC, 2 valves per cylinder., displacement 826 cc / 50.4 cu in , produces power 57.7 kW / 79 hp @ 8500 rpm. Yamaha XS 850G wet weight is 258 kg / 569 lbs. Yamaha XS 850G has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: XS 850G
Years: 1978-79
Engine: Four stroke, transverse three cylinder, DOHC, 2 valves per cylinder.
Capacity: 826 cc / 50.4 cu in
Bore x Stroke: 71.5 x 68.6 mm
Compression Ratio: 9.2:1
Cooling System: Air cooled
Induction: 3 x 34mm Hitachi carburetors
Ignition: Battery powered triggered
Starting: Electric
Max Power: 57.7 kW / 79 hp @ 8500 rpm
Transmission: 5 Speed
Final Drive: Shaft
Front Suspension: Air assisted telescopic forks, 175mm wheel travel.
Front Wheel Travel: 175 mm / 6.9"
Rear Suspension: Swing arm 4-way adjustable damping, 99 wheel travel
Rear Wheel Travel: 99 mm / 3.9"
Front Brakes: 2 x 267mm Discs, 1 piston calipers
Rear Brakes: Single 267mm disc, 1 piston caliper
Front Tyre: 3.25-19
Rear Tyre: 4.00-18
Wet Weight: 258 kg / 569 lbs
Fuel Capacity: 24 Litres / 6.3 US gal
Standing ¼ Mile: 13.3 sec / 158 km/h / 98.2 mph
