Technical specifications
|

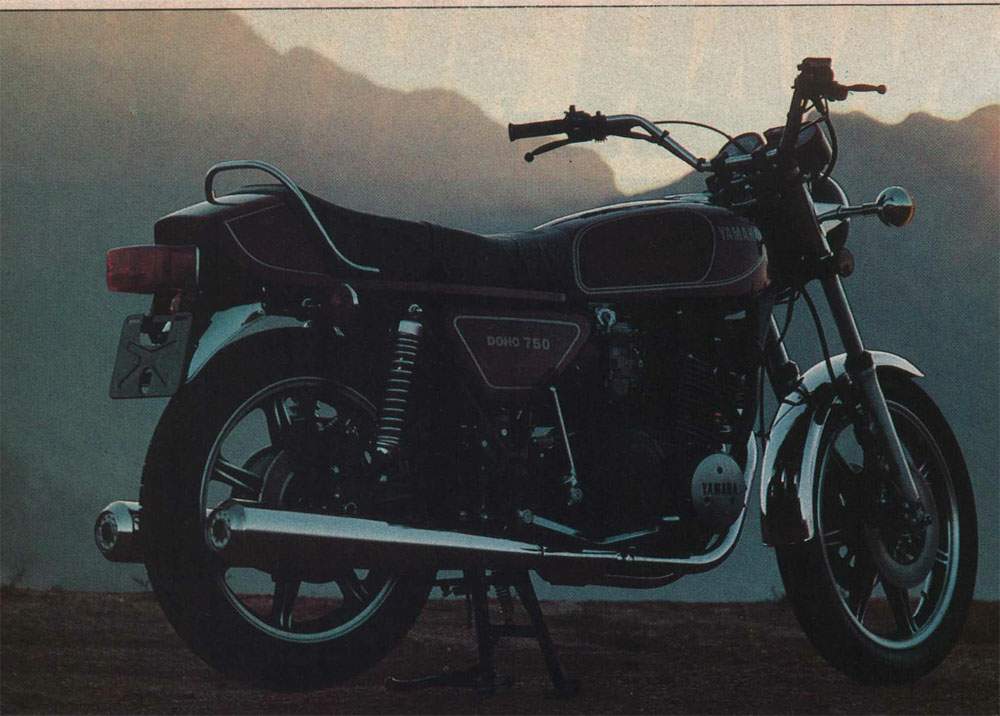

| Model: |
XS 750 |
| Years: |
1977 |
|
Engine:
|
Four stroke, transverse three cylinder, DOHC, 2 valves per cylinder.
|
|
Capacity:
|
747 cc / 45.6 cu in
|
|
Bore x Stroke:
|
68 x 68.6 mm
|
|
Compression Ratio:
|
8.5:1
|
|
Cooling System:
|
Air cooled
|
|
Induction:
|
3 x 34mm Mikuni carburetors
|
|
Ignition:
|
Battery and coil
|
|
Starting:
|
Electric
|
|
Max Power:
|
47.7 kW / 64 hp @ 7500 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Shaft
|
|
Front Suspension:
|
Telescopic forks, 36 mm
|
|
Rear Suspension:
|
Dual shocks swing arm, preload adjustable
|
|
Front Brakes:
|
2 x 267mm Discs
|
|
Rear Brakes:
|
Single 267mm disc
|
|
Front Tyre:
|
3.25-19
|
|
Rear Tyre:
|
4.00-18
|
|
Dry Weight:
|
231 kg / 470 lbs
|
|
Wet Weight:
|
249 kg / 550 lbs
|
|
Fuel Capacity:
|
15 Litres / 4.0 US gal
|
|
Oil Capacity:
|
2.8 Litres / 6.0 US pts
|
|
Consumption Average:
|
5.5 L/100 km / 18.2 km/l / 42.9 US mpg
|
|
Braking 100 km/h - 0:
|
42 m / 138 ft
|
|
Standing ¼ Mile:
|
14.1 sec / 146.6 km/h / 91.1 mph
|
|
Top Speed:
|
171 km/h / 106 mph
|
|
