Yamaha XS 650F (1979) technical specifications

Yamaha XS 650F technical specifications

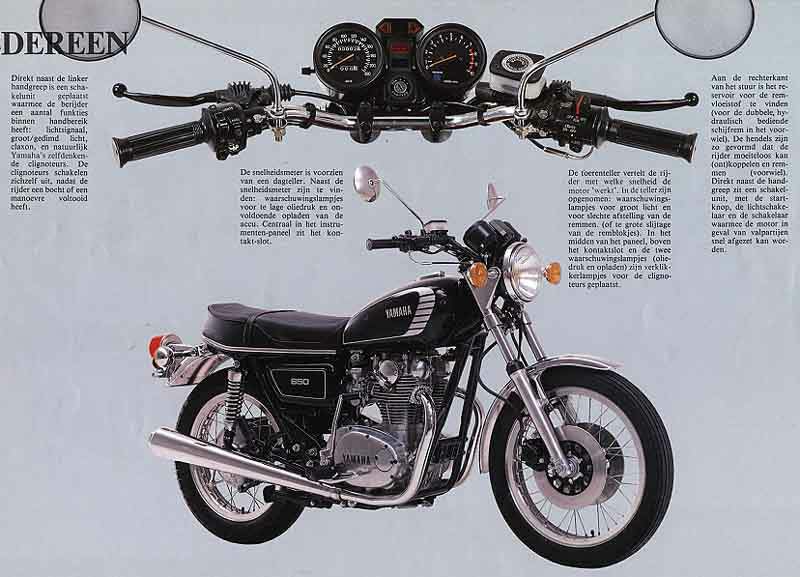

Yamaha XS 650F is produced in 1979. Engine is Four stroke, parallel twin cylinder, SOHC, 2 valves per cylinder., displacement 653 cc / 39.8 cu in , produces power 39.5 kW / 53 hp @ 7200 rpm and 54 Nm / 5.5 kgf-m / 39.8 lb-ft @ 6800 rpm. Yamaha XS 650F top speed is 185 km/h / 115 mph. Yamaha XS 650F weighs 191 kg / 420 lbs. Yamaha XS 650F has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: XS 650F
Years: 1979
Engine: Four stroke, parallel twin cylinder, SOHC, 2 valves per cylinder.
Capacity: 653 cc / 39.8 cu in
Bore x Stroke: 75 x 74 mm
Compression Ratio: 8.4:1
Cooling System: Air cooled
Lubrication: Wet sump
Induction: 2 x Mikuni BS38 carburetors
Ignition: Battery, induction coil
Starting: Electric and kick
Max Power: 39.5 kW / 53 hp @ 7200 rpm
Max Torque: 54 Nm / 5.5 kgf-m / 39.8 lb-ft @ 6800 rpm
Transmission: 5 Speed
Final Drive: Chain
Front Suspension: Telescopic forks
Rear Suspension: Dual shock absorbers
Front Brakes: Twin hydraulic discs, 267 mm
Rear Brakes: Drum
Front Tyre: 3.50H-19 4PR
Rear Tyre: 4.00H-18 4PR
Dimensions: Length: 2175 mm / 85.6" Width: 780 mm / 30.7" Height: 1090 mm / 42.9"
Wheelbase: 1435 mm / 56.5"
Ground Clearance: 150 mm / 5.5"
Seat Height: 810 mm / 31.9"
Dry Weight: 191 kg / 420 lbs
Wet Weight: 217 kg / 478 lbs
Fuel Capacity: 15 Litres / 4.0 US gal
Average Consumption: 5.0 L/100 km / 20 km/l / 47 US mpg
Oil Capacity: 2.5 Litres / 2.6 US qts
Top Speed: 185 km/h / 115 mph
