Yamaha XS 500 (1985) technical specifications

Yamaha XS 500 technical specifications

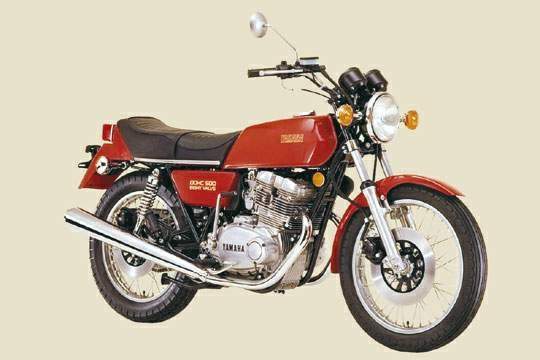

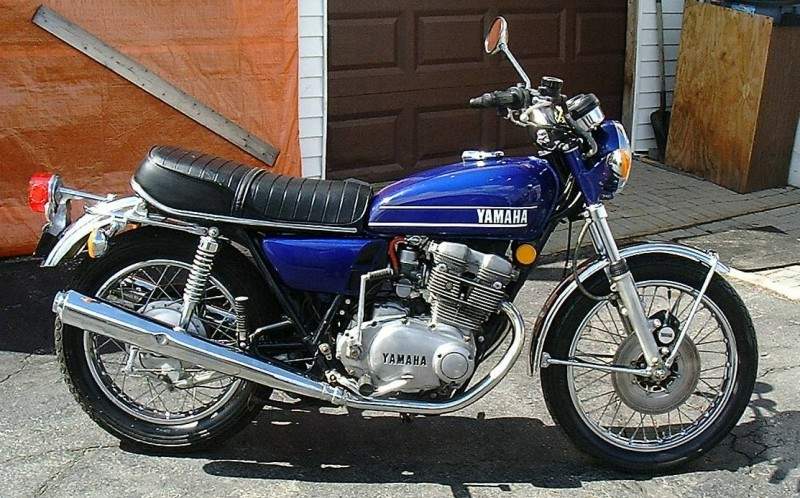

Yamaha XS 500 is produced in 1985. Engine is Four stole, parallel twin cylinder. DOHC, displacement 498 cc / 30.5 cu-in , produces power 48 hp / 36.5 kW @ 8500 rpm and 4.5 kgf-m / 32.5 lb-ft @ 6500 rpm. Yamaha XS 500 top speed is 105 mph. Yamaha XS 500 wet weight is 207.7 kg / 458 lb. Yamaha XS 500 has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: XS 500
Years: 1985
Engine: Four stole, parallel twin cylinder. DOHC
Capacity: 498 cc / 30.5 cu-in
Bore x Stroke: 73 х 59.6 mm
Cooling System: Air cooled
Compression Ratio: 9.0:1
Lubrication: Wet sump
Induction: 2x 38mm Mikuni carburetor
Ignition: Battery and coil
Starting: Electric & kick
Max Power: 48 hp / 36.5 kW @ 8500 rpm
Max Torque: 4.5 kgf-m / 32.5 lb-ft @ 6500 rpm
Transmission: 5 Speed
Final Drive: Chain
Frame: Full cradle frame - Duplex type" and is 100% of circular steel pipes!
Front Suspension: Telescopic fork.
Rear Suspension: Dual shocks swing arm, preload adjustable!
Front Brakes: Single 267mm disc
Rear Brakes: Drum
Front Tyre: 3.25-19
Rear Tyre: 3.50-18
Seat Height: 812 mm / 32 in
Wet Weight: 207.7 kg / 458 lb
Fuel Capacity: 12.8 Litres / 3 4 US gal
Consumption Average: 46 mpg
Braking 60 - 0 / 100 - 0: - / 139 ft
Standing ¼ Mile: 14.36 sec
Top Speed: 105 mph
