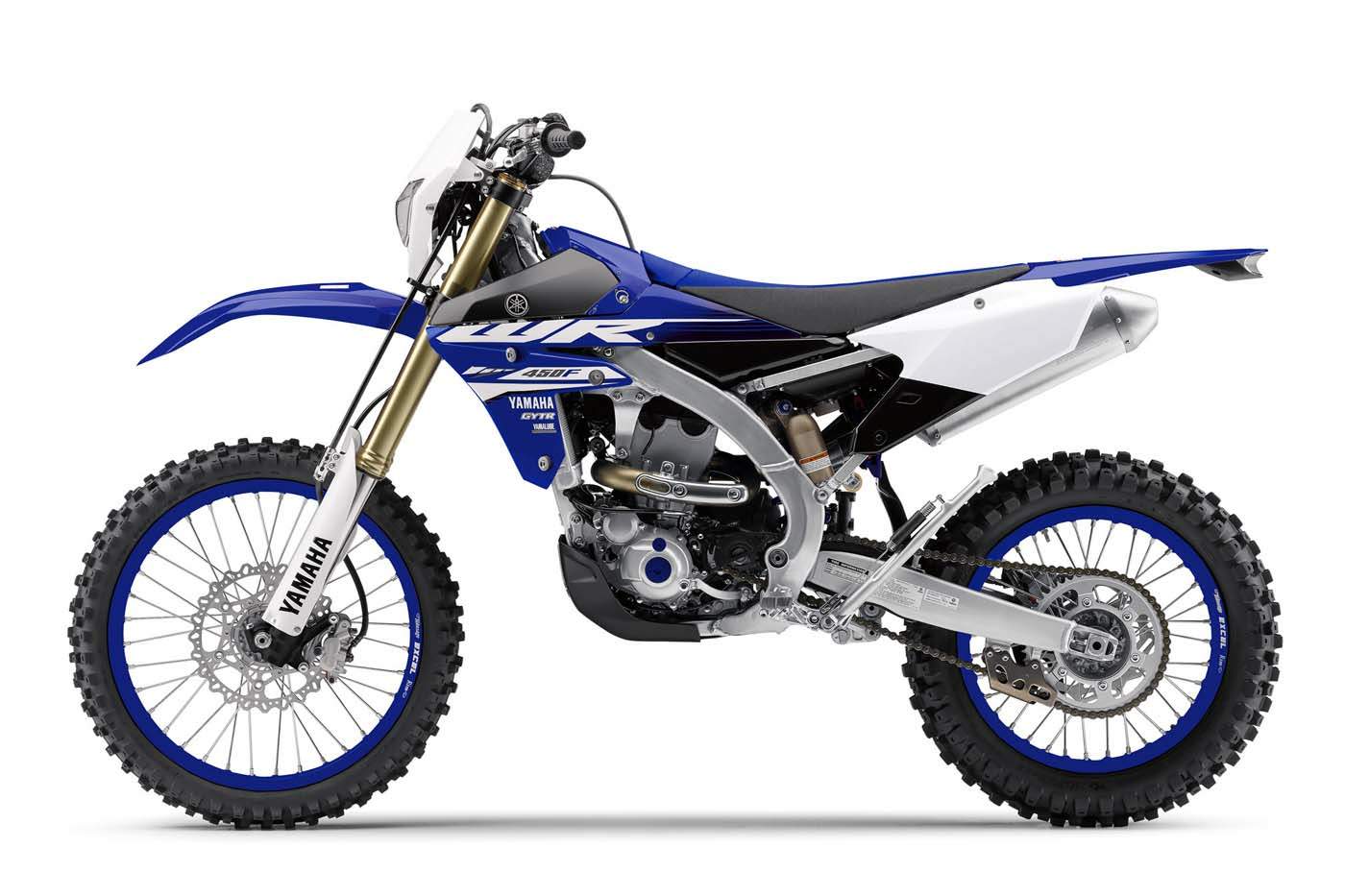

Yamaha WR450F (2017-18) technical specifications

Yamaha WR450F technical specifications

Yamaha WR450F is produced in 2017-18. Engine is Four stroke, Single cylinder, DOHC, 4 titanium valves, displacement 449 cc / 27.4 cu in , produces power NA and NA. Yamaha WR450F wet weight is 123 kg / 271 lbs. Yamaha WR450F has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: WR450F
Years: 2017-18
Engine: Four stroke, Single cylinder, DOHC, 4 titanium valves
Capacity: 449 cc / 27.4 cu in
Bore x Stroke: 97.0 x 60.8mm
Cooling System: Liquid cooled
Compression Ratio: 12.5:1
Lubrication: Dry sump
Oil Capacity: 1.2 L / 2.5 US pt
Exhaust: Single, upswept, under seat
Induction: 44mm Keihin® fuel injection
Ignition: TCI: Transistor Controlled Ignition
Starting: Electric
Max Power: NA
Max Torque: NA
Clutch: Wet, multi-disc,
Transmission: 5-Speed, Wide-ratio constant-mesh
Final Drive: O-ring chain
Primary Ratio: 2.609 (60/23)
Secondary Ratio: 3.846 (50/13)
Gear Ratio: 1st 2.417 (29/12) 2nd 1.733 (26/15) 3rd 1.313 (21/16) 4th 1.050 (21/20) 5th 0.840 (21/25)
Frame: Aluminium bilateral beam
Front Suspension: 48mm Kayaba spring-type fork with speed sensitive, damping; fully adjustable
Front Wheel Travel: 310 mm / 12.2 in
Rear Suspension: Swingarm, link suspension, mono shock, Kayaba single shock; fully adjustable
Rear Wheel Travel: 310 mm / 12.2 in
Front Brakes: Single hydraulic single 270 mm disc 4 piston caliper
Rear Brakes: Single 245 mm disc 2 piston caliper
Wheels: Aluminium alloy, laced spokes
Front Tyre: 80/100-21
Rear Tyre: 120/90-18
Rake: 26.3°
Trail: 115 mm / 4.5 in
Dimensions: Length: 2165 mm / 85.2 in Width: 825 mm / 32.5 in Height: 1280 mm / 50.4 in
Wheelbase: 1465 mm / 57.7 in
Seat Height: 965 mm / 38. in
Ground Clearance: 325 mm / 12.8 in
Wet Weight: 123 kg / 271 lbs
Fuel Capacity: 7.5 Litres / 2.0 US gal
