Yamaha WR 250X (2014-15) technical specifications

Yamaha WR 250X technical specifications

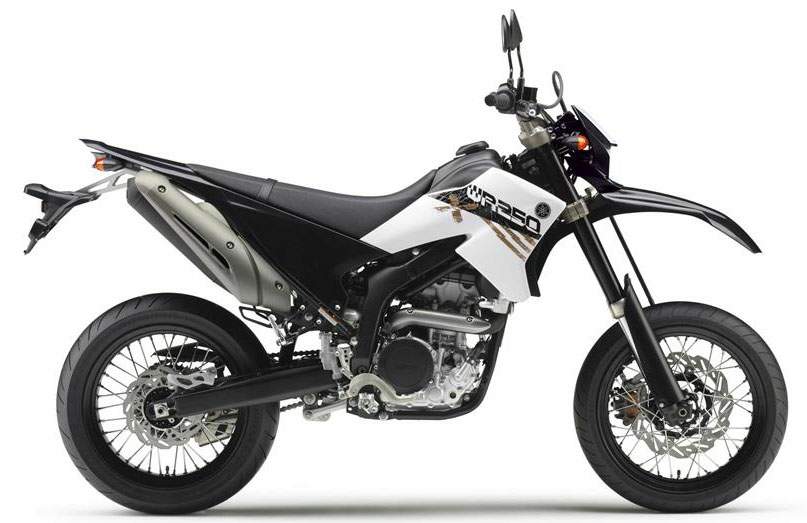

Yamaha WR 250X is produced in 2014-15. Engine is Four stroke, single cylinder, DOHC, 4 valve, displacement 249 / 15.2 cub in. , produces power 22.6 kW / 30.3 hp @ 10 000 rpm and 23.7 Nm 2.42 kgf-m / 17.5 lb-ft. @ 8 000 rpm. Yamaha WR 250X weighs 127 kg / 280 lbs. Yamaha WR 250X has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: WR 250X
Years: 2014-15
Engine: Four stroke, single cylinder, DOHC, 4 valve
Capacity: 249 / 15.2 cub in.
Bore x Stroke: 77 x 53.6 mm
Compression Ratio: 11.8:1
Cooling System: Liquid cooled
Lubrication: Dry sump
Induction: Electronic fuel injection
Ignition: TCI
Starting: Electric
Max Power: 22.6 kW / 30.3 hp @ 10 000 rpm
Max Torque: 23.7 Nm 2.42 kgf-m / 17.5 lb-ft. @ 8 000 rpm
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: Inverted fork; fully adjustable, 269mm wheel travel
Front Wheel Travel: 269 mm / 10.6 in
Rear Suspension: Single shock; fully adjustable, 264mm wheel travel
Rear Wheel Travel: 264 mm / 10.4 in
Front Brakes: Single 298mm disc
Rear Brakes: Single 230mm disc
Front Tyre: 110/70-17
Rear Tyre: 140/70-17
Dimensions: Length 2,11 mm / 83.1 in Width 810 mm / 31.9 in Height 1191 mm / 46.9 in
Wheelbase: 1425 mm / 56.1 in
Seat Height: 894 mm / 35.2 in
Ground Clearance: 259 mm / 10.2 in
Dry Weight: 127 kg / 280 lbs
Fuel Capacity: 7.6 Litres / 2.0 gal
