Yamaha WR 250F (2020-21) technical specifications

Yamaha WR 250F technical specifications

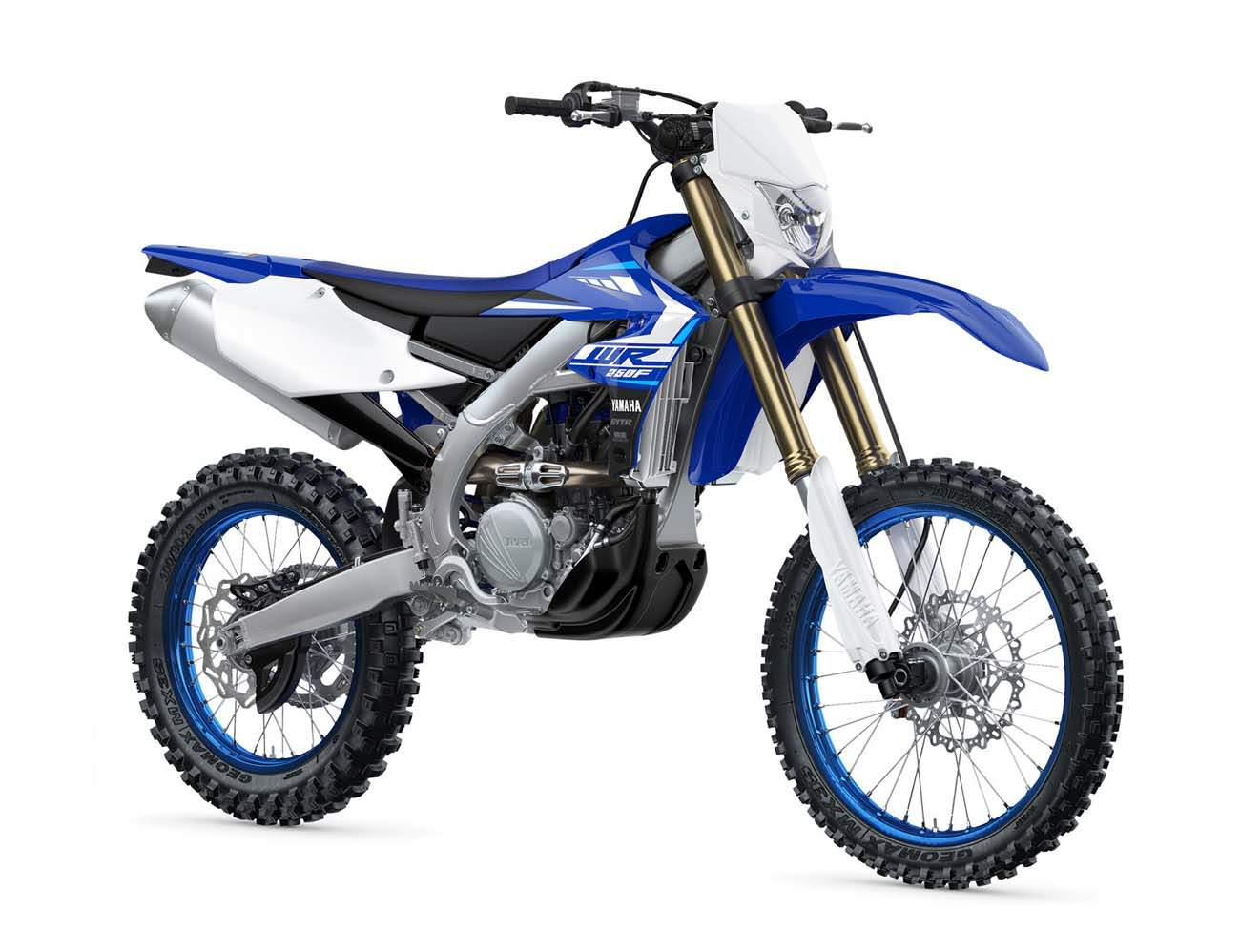

Yamaha WR 250F is produced in 2020-21. Engine is Four stroke, single cylinder, DOHC, 4 valve Titanium, displacement 249 cc / 15.2 cu-in Yamaha WR 250F wet weight is 117 kg / 258 lbs. Yamaha WR 250F has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: WR 250F
Years: 2020-21
Engine: Four stroke, single cylinder, DOHC, 4 valve Titanium
Capacity: 249 cc / 15.2 cu-in
Bore x Stroke: 77 x 53.6 mm
Cooling System: Liquid cooled,
Compression Ratio: 13.5:1
Lubrication: Dry sump
Induction: 44 mm Keihin throttle body F.I.
Ignition: TCI: Transistor Controlled Ignition
Starting: Electric / Kick
Clutch: Wet, multiple discs, cable operated
Transmission: 5 Speed Wide ratio
Final Drive: #520 Chain
Primary Ratio: 3.353 (57/17)
Secondary Ratio: 3.923 (51/13)
Gear Ratio: 1st 2.385 (31/13) 2nd 1.813 (29/16) 3rd 1.444 (26/18) 4th 1.143 (24/21) 5th 0.957 (22/23) 6th 0.815 (22/27)
Frame: Aluminium Bilateral Beam
Front Suspension: 48 mm inverted fork, Adjustable
Front Wheel Travel: 310 mm / 12.2 in
Rear Suspension: KYB Fully adjustable single shock
Rear Wheel Travel: 315 mm / 12.4 in
Front Brakes: Single 270mm floating wave disc 2 piston caliper
Rear Brakes: Single 245mm disc 1 piston caliper
Front Tyre: 80/100-21
Rear Tyre: 100/100-18
Rake: 27.0°
Trail: 115 mm / 4.5 in
Dimensions: Length 2165 mm / 85.2 in Width 825 mm / 32.5 in Height 1280 mm / 50.4 in
Wheelbase: 1,465 mm / 57.7 in
Seat Height: 965 mm / 38.0 in
Ground Clearance: 325 mm / 12.8 in
Wet Weight: 117 kg / 258 lbs
Fuel Capacity: 7.5 Liters / 2.0 gal
