Yamaha TZR 250RS (1993) technical specifications

Yamaha TZR 250RS technical specifications

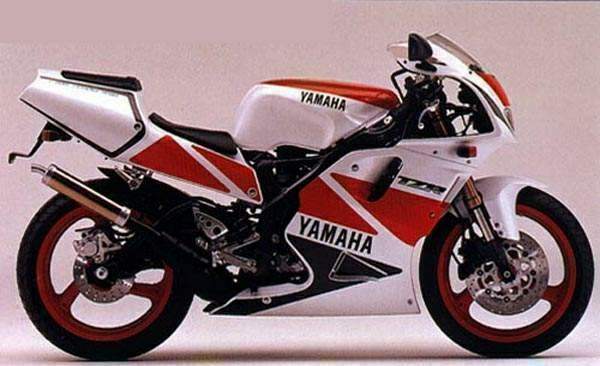

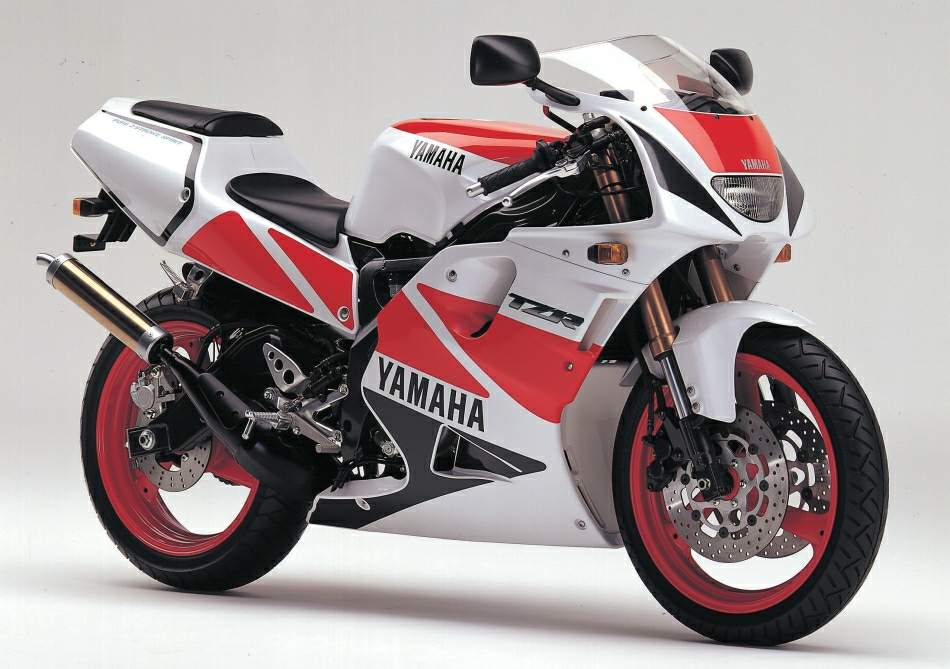

Yamaha TZR 250RS is produced in 1993. Engine is Two stroke, 90° V-Twin cylinder, read valve induction, displacement 249.7 cc / 15.2 cu-in , produces power 45 hp / 33.6 kW @ 9500 rpm and 3.8 kgf-m / 40 Nm @ 8000 rpm. Yamaha TZR 250RS top speed is 112 mph / 180.2 km/h. Yamaha TZR 250RS weighs 126 kg / 277.8 lbs. Yamaha TZR 250RS has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: TZR 250RS
Years: 1993
Engine: Two stroke, 90° V-Twin cylinder, read valve induction
Capacity: 249.7 cc / 15.2 cu-in
Bore x Stroke: 56 x 50.7 mm
Cooling System: Liquid cooled
Compression Ratio: 7.5:1
Induction: 2x Mikuni flatside carburetor
Ignition: Microcomputer controlled
Starting: Kick
Max Power: 45 hp / 33.6 kW @ 9500 rpm
Max Torque: 3.8 kgf-m / 40 Nm @ 8000 rpm
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: 39mm Upside-down forks
Rear Suspension: Monocross linkage
Front Brakes: 2X disc 4 piston calipers
Rear Brakes: Single disc 2 piston caliper
Front Tyre: 110/70 Z17
Rear Tyre: 150/60 Z17
Dimensions: Length 1960 mm / 77.1in Width 680 mm / 26.7 in Height 1075 mm / 42.3 in
Wheelbase: 1340 mm / 52.8 in
Seat Height: 780 mm / 30.7 in
Dry Weight: 126 kg / 277.8 lbs
Fuel Capacity: 15 Litres / 4.0 gal
Top Speed: 112 mph / 180.2 km/h
