Yamaha TW 200 (2009-12) technical specifications

Yamaha TW 200 technical specifications

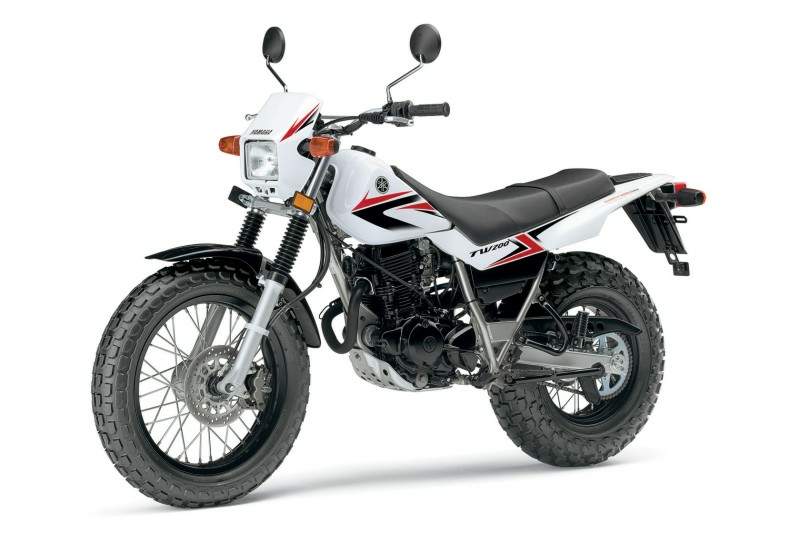

Yamaha TW 200 is produced in 2009-12. Engine is Four stroke, single cylinder, SOHC, 2-valve, displacement 196 cc / 11.96 cub in. , produces power 16 hp / 11.7 kW @ 8000 rpm and 15 Nm / 11.1 lb-ft @ 7000 rpm. Yamaha TW 200 wet weight is 126 kg / 278 lbs. Yamaha TW 200 has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: TW 200
Years: 2009-12
Engine: Four stroke, single cylinder, SOHC, 2-valve
Capacity: 196 cc / 11.96 cub in.
Bore x Stroke: 67 x 55.7 mm
Cooling System: Air cooled
Compression Ratio: 9.5:1
Fuel system: Mikuni 28 mm carburetor
Ignition: CDI
Starting: Electric
Max Power: 16 hp / 11.7 kW @ 8000 rpm
Max Torque: 15 Nm / 11.1 lb-ft @ 7000 rpm
Clutch: Multi-plate wet clutch
Transmission: 5-Speed, constant mesh
Final Drive: Chain
Front Suspension: 33mm Telescopic fork
Front wheel travel: 160 mm / 6.3 in.
Rear Suspension: Single shock
Rear wheel travel: 150 mm / 5.9 in.
Front Brakes: Single 220mm disc
Rear Brakes: 110mm Drum
Front Tyre: 130/80 -18 in
Rear Tyre: 180/80 -14 in
Dimensions: Length 2090 mm / 82.3 in Width 820 mm / 32.3 in Height 1120 mm / 44.1 in
Wheelbase: 1326 mm / 52.2 in
Seat Height: 790 mm / 31.1 in
Ground Clearance: 264 mm / 10.4 in
Wet Weight: 126 kg / 278 lbs
Fuel Capacity: 6.8 Litres / 1.7 US gal
