Yamaha TW 125 (2001-03) technical specifications

Yamaha TW 125 technical specifications

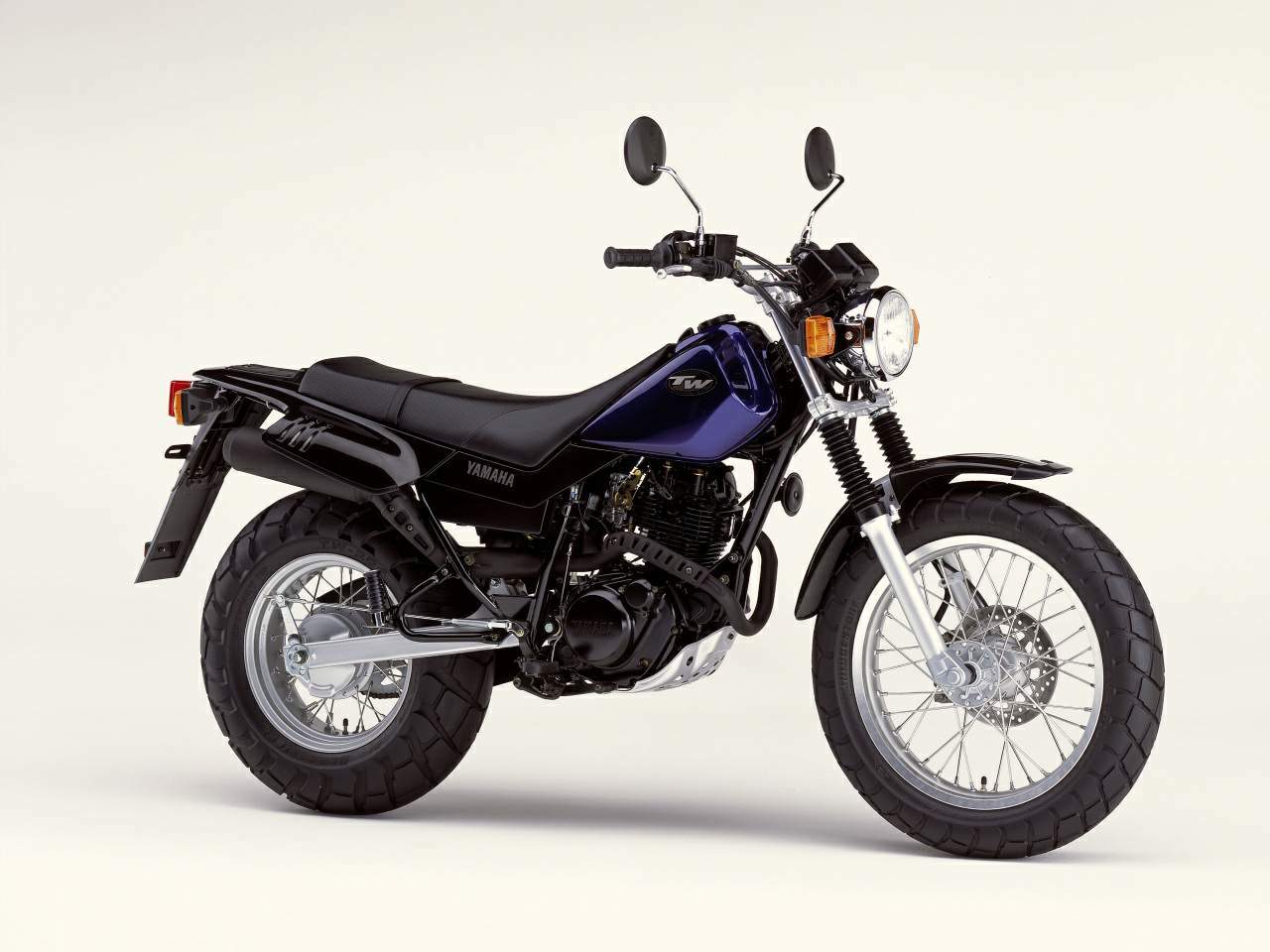

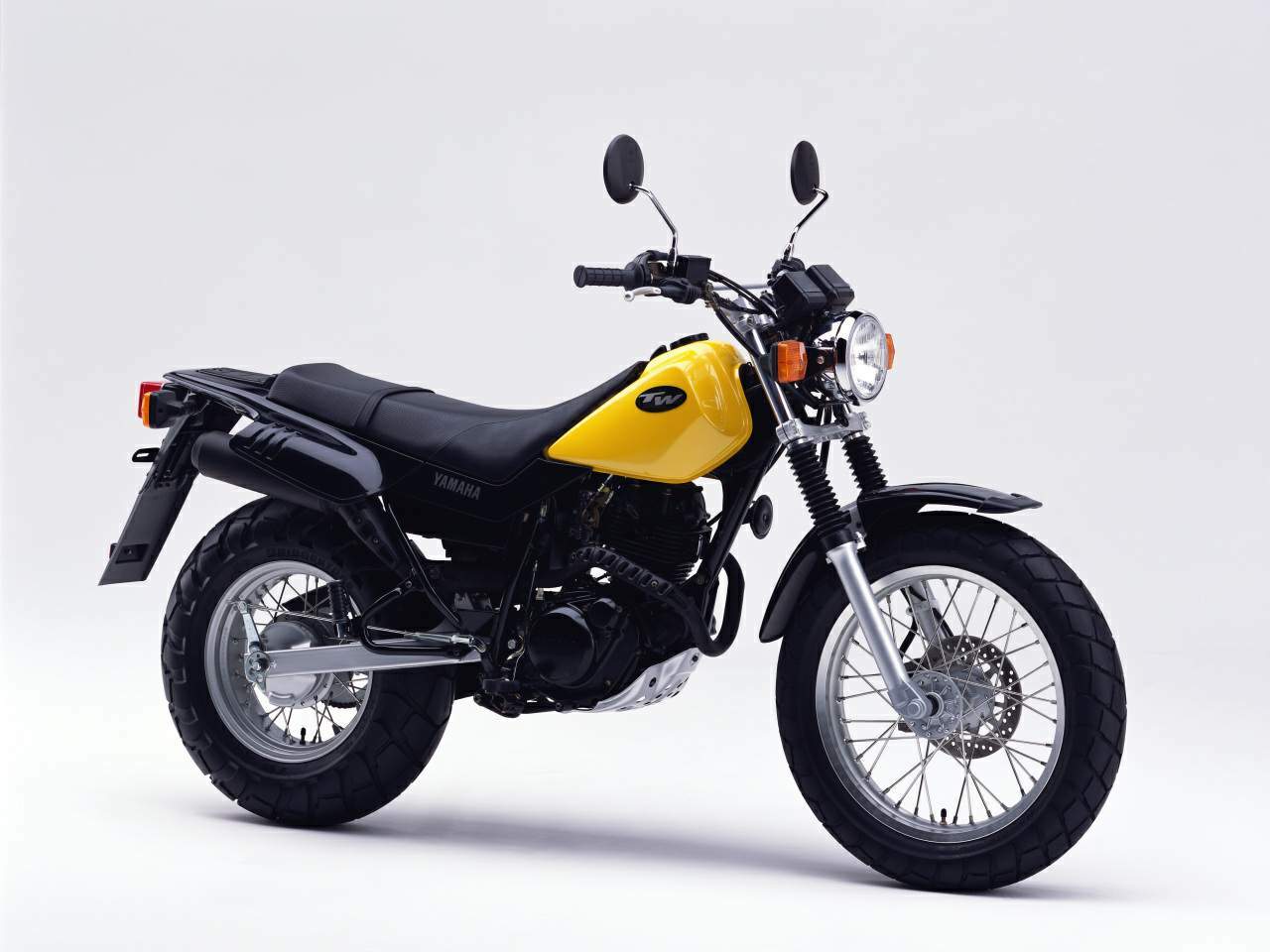

Yamaha TW 125 is produced in 2001-03. Engine is Four stroke. single cylinder., displacement 124 cc / 7.6 cu-in , produces power 11.8 hp / 8.6 kW @ 9000 rpm and 9.7Nm / 7.2 lb-ft @ 8000m rpm. Yamaha TW 125 weighs 106 kg / 260 lbs. Yamaha TW 125 has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: TW 125
Years: 2001-03
Engine: Four stroke. single cylinder.
Capacity: 124 cc / 7.6 cu-in
Bore x Stroke: 57 x 48.8 mm
Cooling System: Air cooled
Compression Ratio: 10.0:1
Induction: TEIKEI Y24P/1
Ignition: CDI
Starting: Electric
Max Power: 11.8 hp / 8.6 kW @ 9000 rpm
Max Torque: 9.7Nm / 7.2 lb-ft @ 8000m rpm
Transmission: 5 Speed
Final Drive: Chain
Front Suspension: Telescopic forks
Front Wheel Travel: 160 mm / 6.2 in
Rear Suspension: Monoshock
Rear Wheel Trael: 150 mm / 5.9 in
Front Brakes: Single 220mm disc
Rear Brakes: 130mm Drum
Front Tyre: 130/80-16
Rear Tyre: 180/80-14
Wheelbase: 1,280 mm / 50.4 in
Seat Height: 805 mm / 31.7 in
Dry Weight: 106 kg / 260 lbs
Fuel Capacity: 7 Litres / 1.9 US gal
